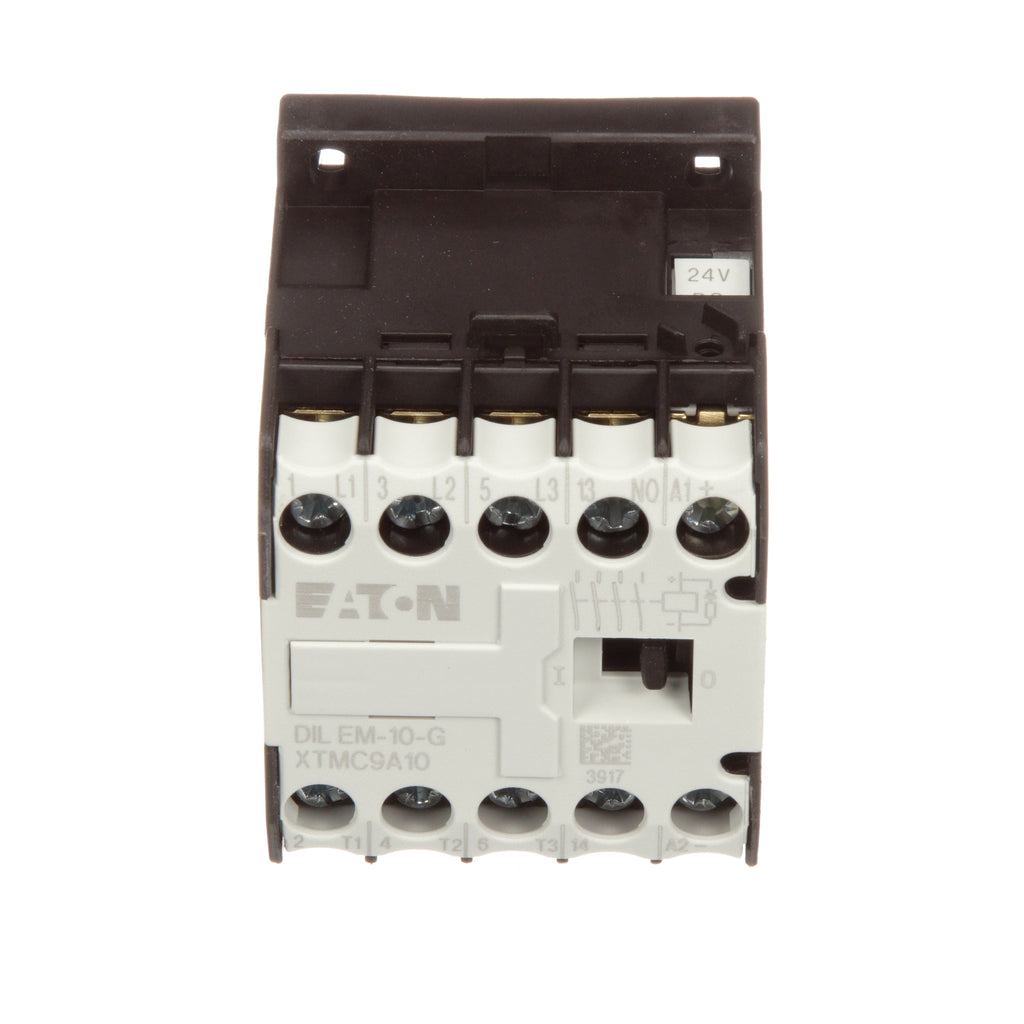

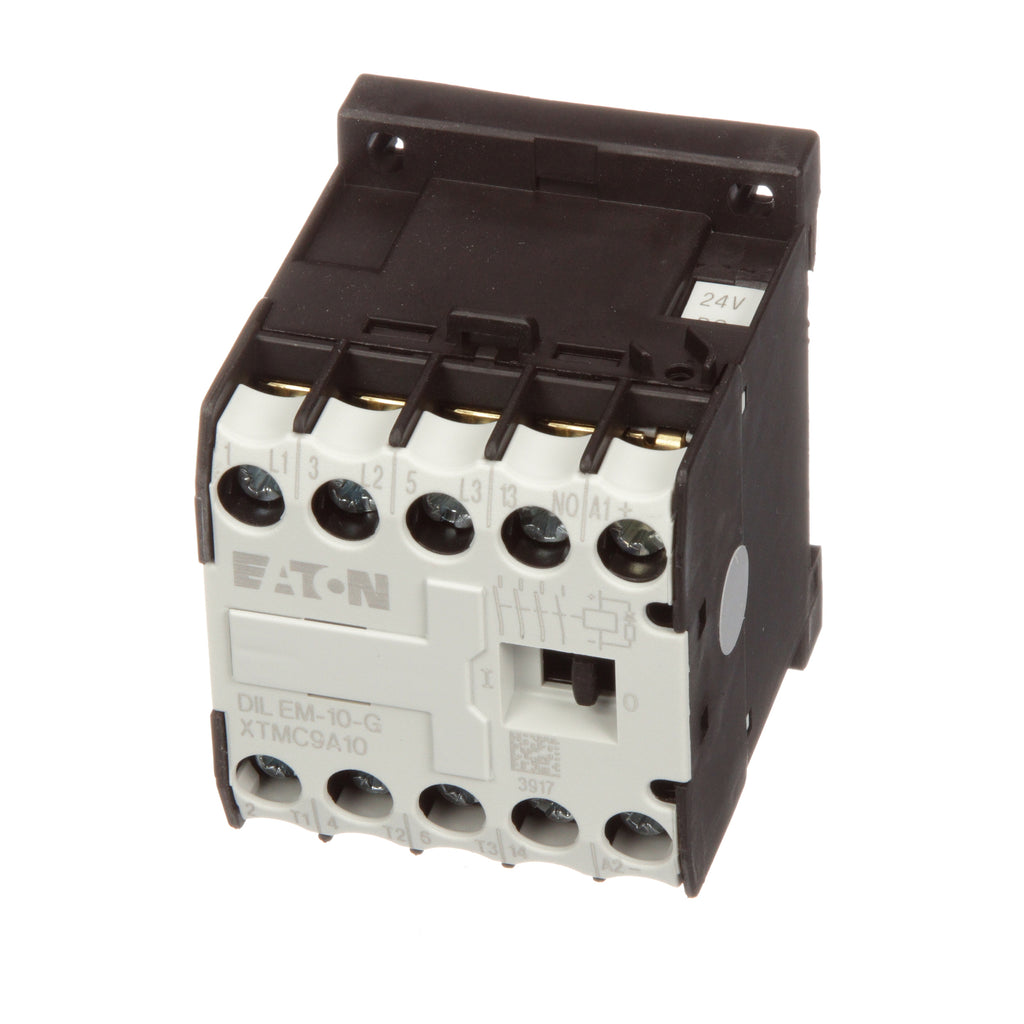

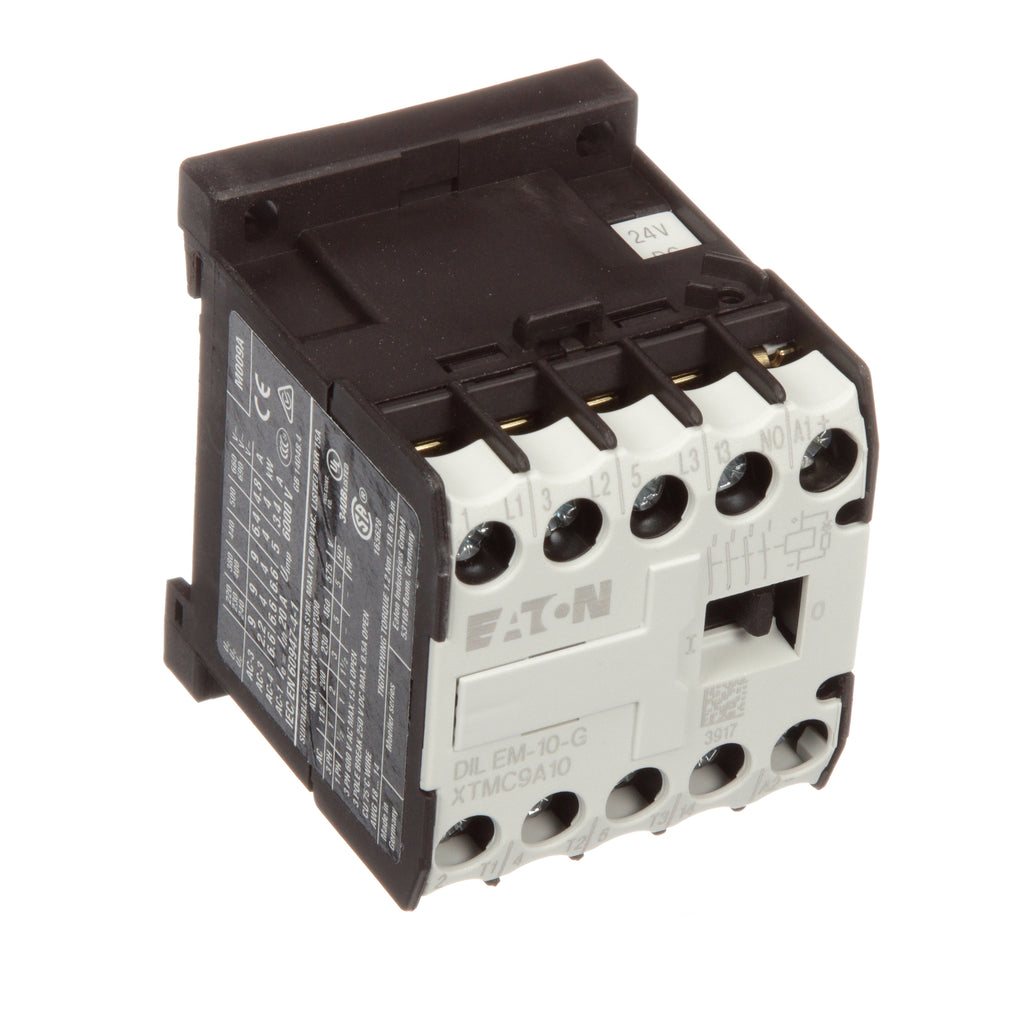

XTMC9A10TD - Eaton 9 Amp 24V DC 3-Pole Full Voltage Non-Reversing IEC Mini Contactor Frame A

XTMC9A10TD

XTMC9A10TD is a 9 Amp, 3-pole full voltage non-reversing IEC mini contactor with a 24 V DC coil from Eaton.This Eaton XT IEC mini contactor features a compact 45 mm frame size, screw terminals, and 1 normally open auxiliary contact. It supports a continuous ampere rating of 20 A and is suitable for controlling small motors and light duty loads such as HVAC, packaging, and automation systems. The contactor is UL listed, CSA certified, CE marked, and compliant with IEC 60947 standards, ensuring reliable and safe operation. It offers a maximum switching power of up to 5 HP at 460 V and includes a high mechanical life of 20 million operations.

Key Specifications
• Amperage Rating: 8.8 - 9 A
• Coil Voltage: 24 V DC
• Number of Poles: 3
• Contact Configuration: 1 Normally Open Auxiliary Contact
• Frame Size: 45 mm Mini
• Mounting Type: DIN Rail / Panel Mount
• Interrupt Rating: 20 A continuous, 10 A max fuse (gL/gG)
• Horsepower Rating: Up to 5 HP @ 460 V
• Certifications: UL Listed, CSA Certified, CE Marked, IEC 60947 Compliant
• Operation: Full Voltage Non-Reversing
• Terminals: Screw Terminals
• Mechanical Life: 20,000,000 operations
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This XT IEC Mini Contactor includes a 24 VDC coil.




Specifications

• Part Number: XTMC9A10TD
• Manufacturer : Eaton
• Brand : Eaton
• Category : Motor Control
• Item Subcategory : Contactor
• Configuration : Non-Reversing
• Aux Contacts : 1 NO



Product Data

• UPC : 4015080102137
• Country of Origin : Germany
• Dimensions : 1.79 in x 2.28 in x 1.44 in (Length/Depth x Height x Width)
• Weight : 0.4 lb
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
