Description
XTMC6A10A

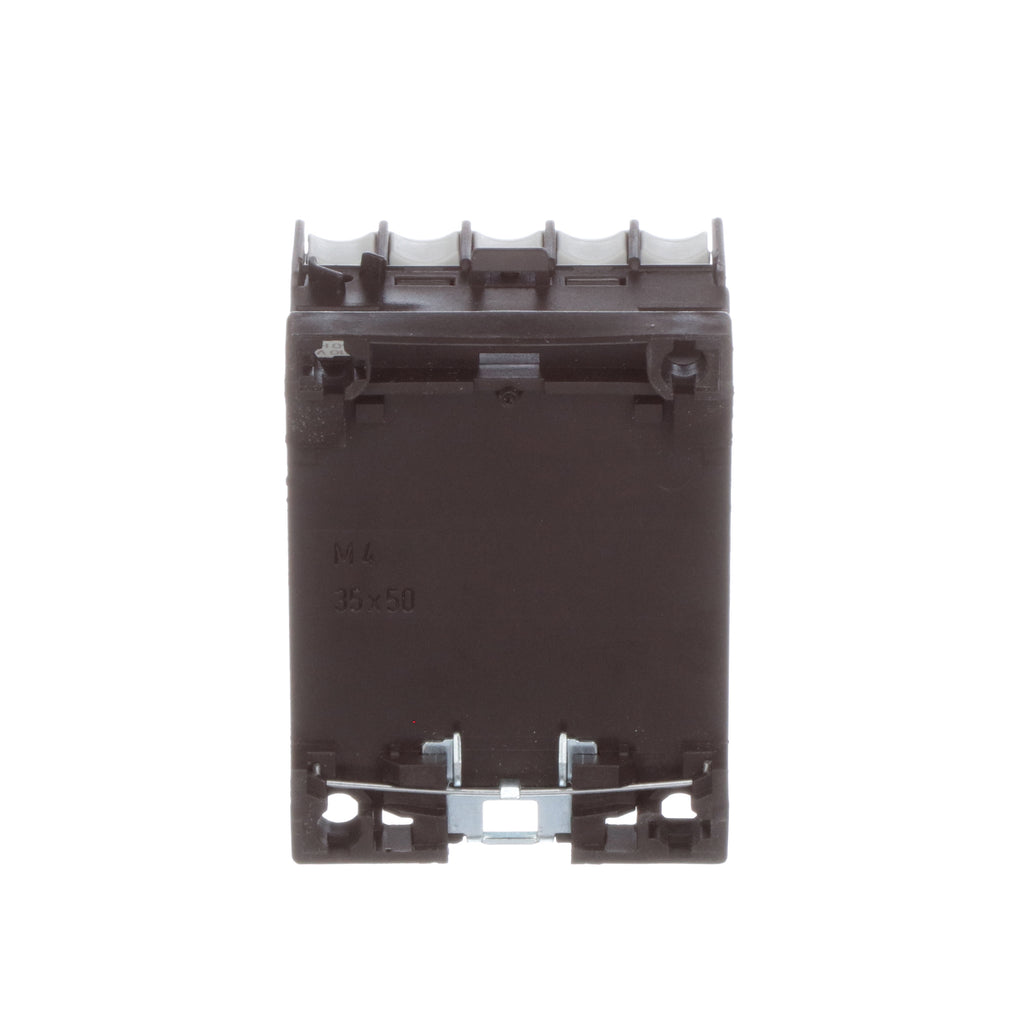

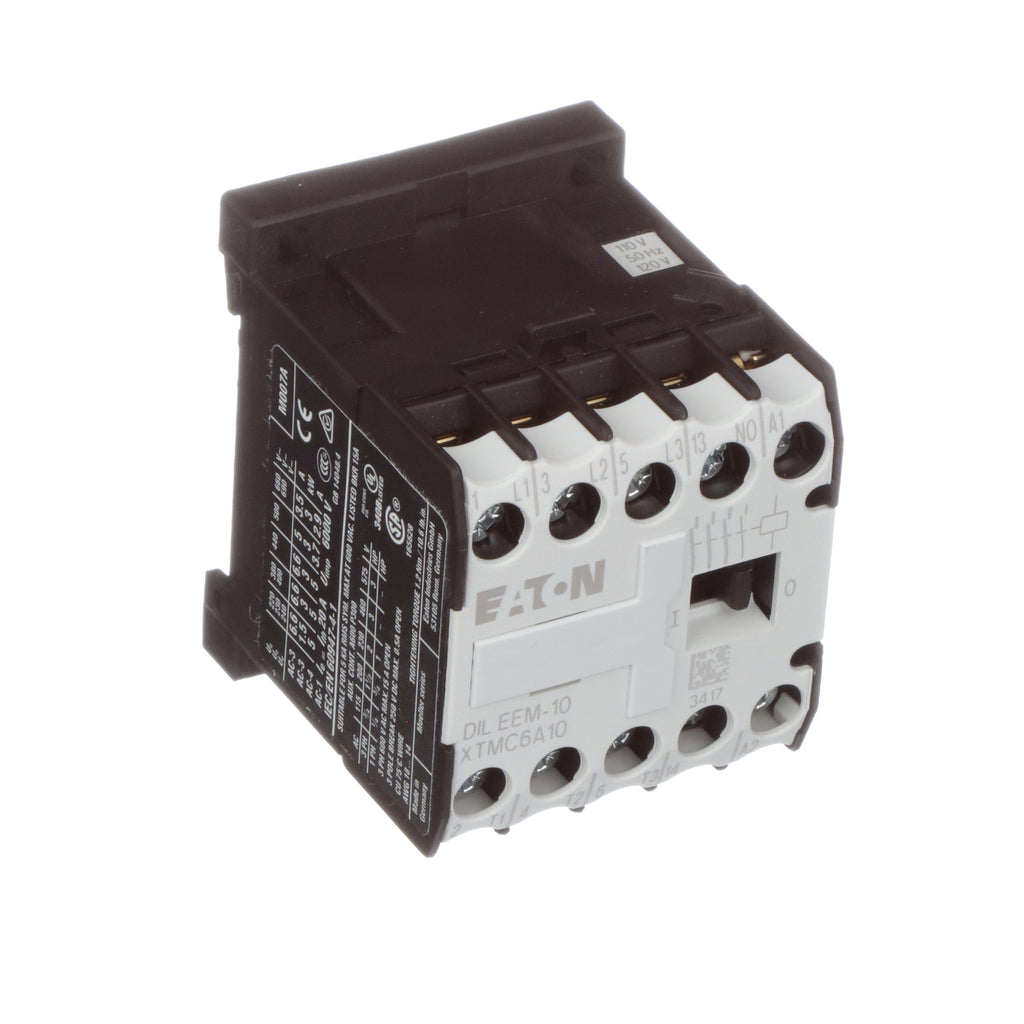

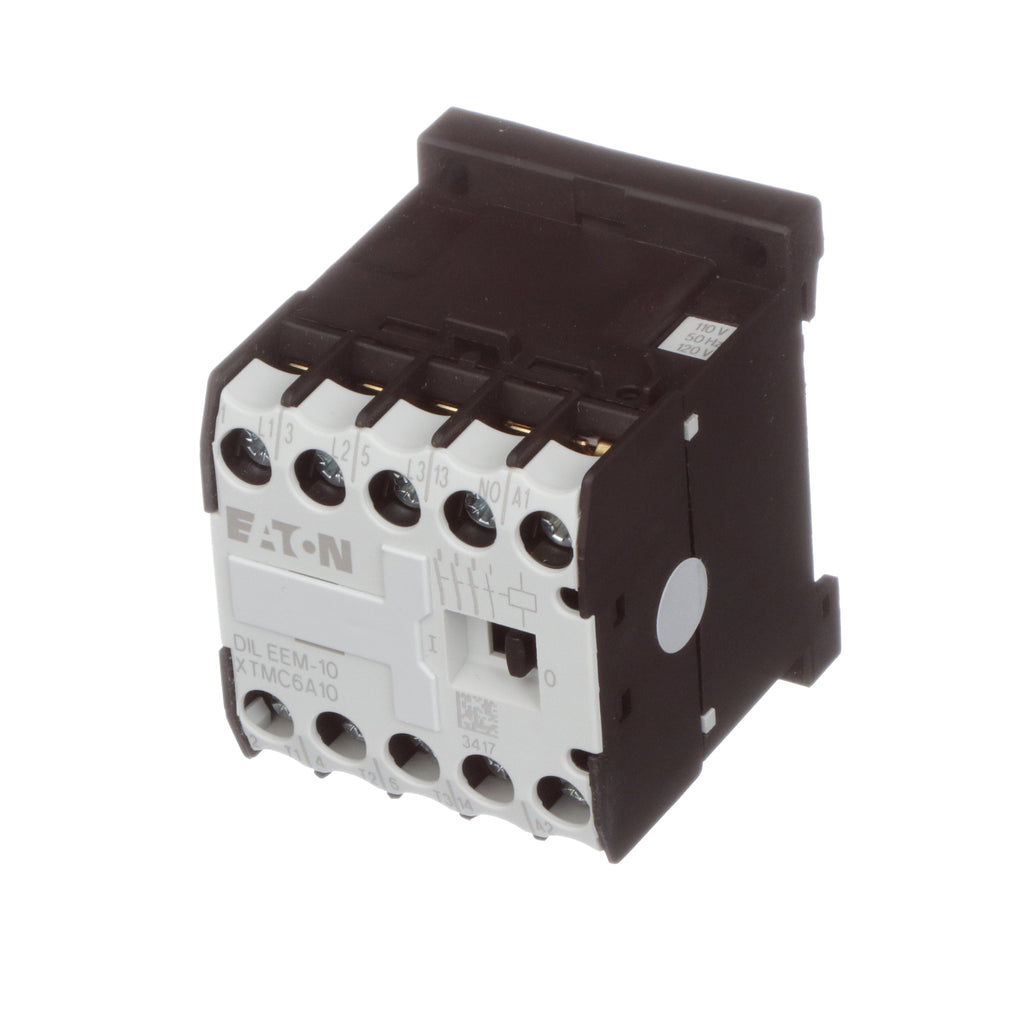

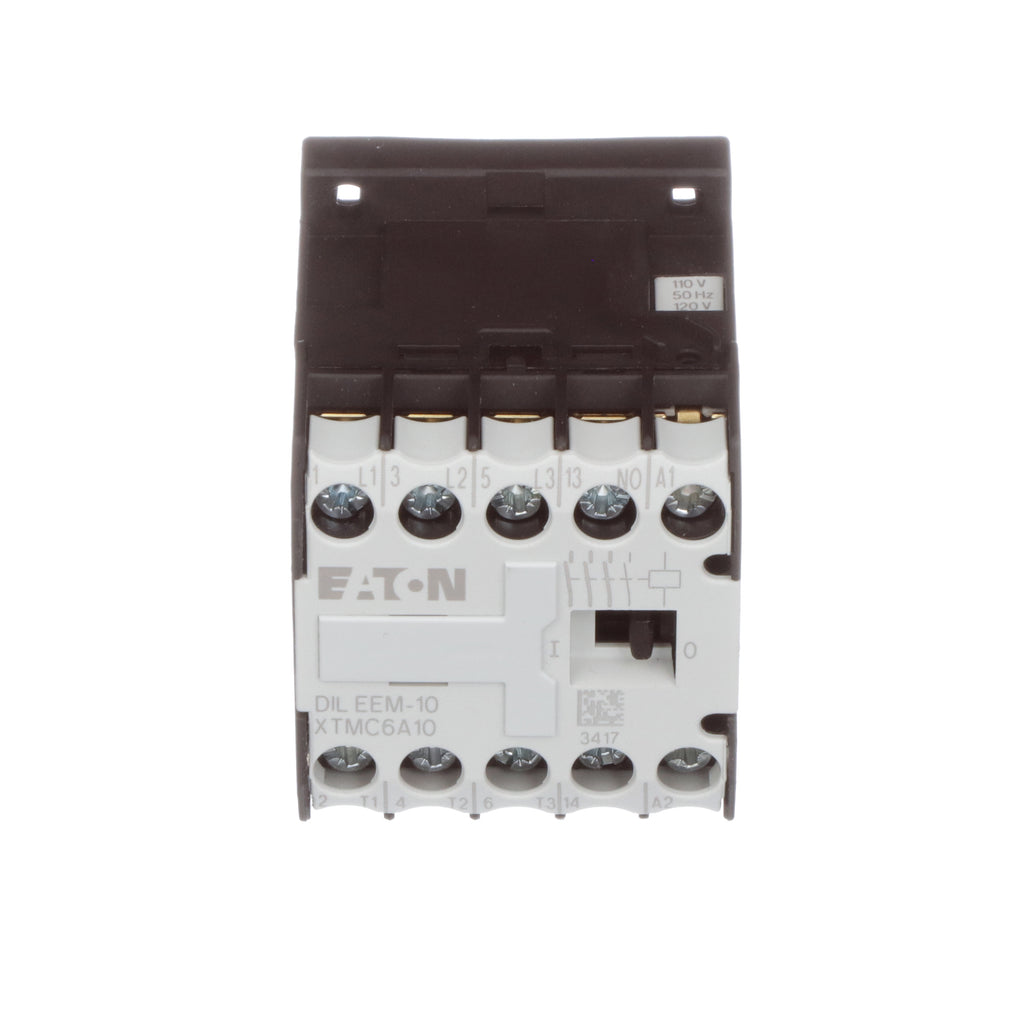

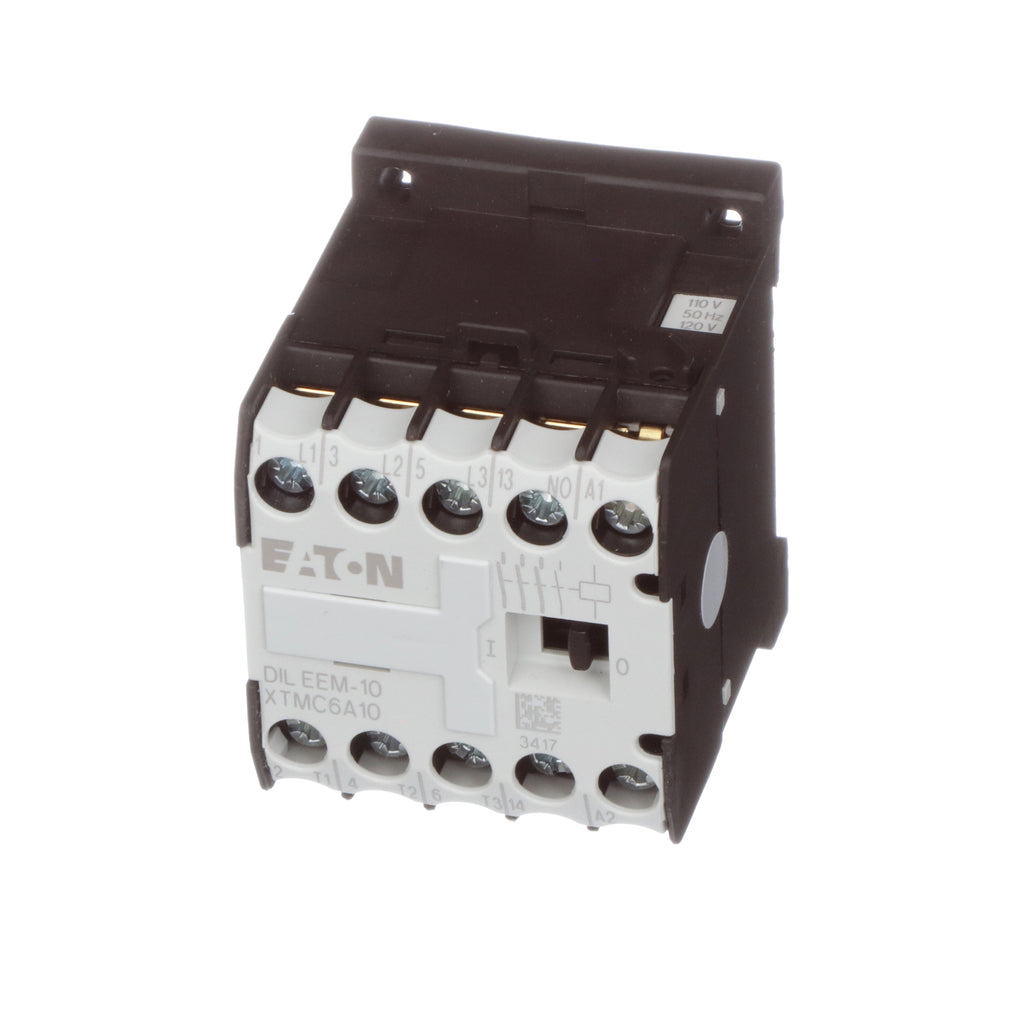

XTMC6A10A is a 6.6 Amp, 120 Vac, 3-pole XT IEC mini contactor from Eaton designed for motor control applications.This full voltage non-reversing contactor features a 45 mm mini frame size with screw terminals and a coil voltage rating of 110/120 Vac at 50-60 Hz. It includes one normally open auxiliary contact (1 NO) and supports up to 20A auxiliary contact rating. The device is UL listed, ensuring compliance with safety standards.
- Amperage Rating: 6.6 A
- Coil Voltage: 110/120 Vac, 50-60 Hz
- Poles: 3
- Frame Size: 45 mm mini
- Type: Full voltage non-reversing
- Auxiliary Contacts: 1 NO
- Auxiliary Contact Rating: 20 A
- Mounting: Screw terminals
- Certifications: UL Listed
Additional Information
This XT IEC Mini Contactor includes a 110 VAC coil.
Specifications
- Part Number: XTMC6A10A
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Contactor
- Configuration : Non-Reversing
- Aux Contacts : 1 NO
- Frequency : 50 Hz
Product Data
- UPC : 4015080516118
- GTIN : 04015080516118
- Country of Origin : Germany
- Dimensions : 2 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 0.3 lb
- Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
