Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description
XTCR007B21A

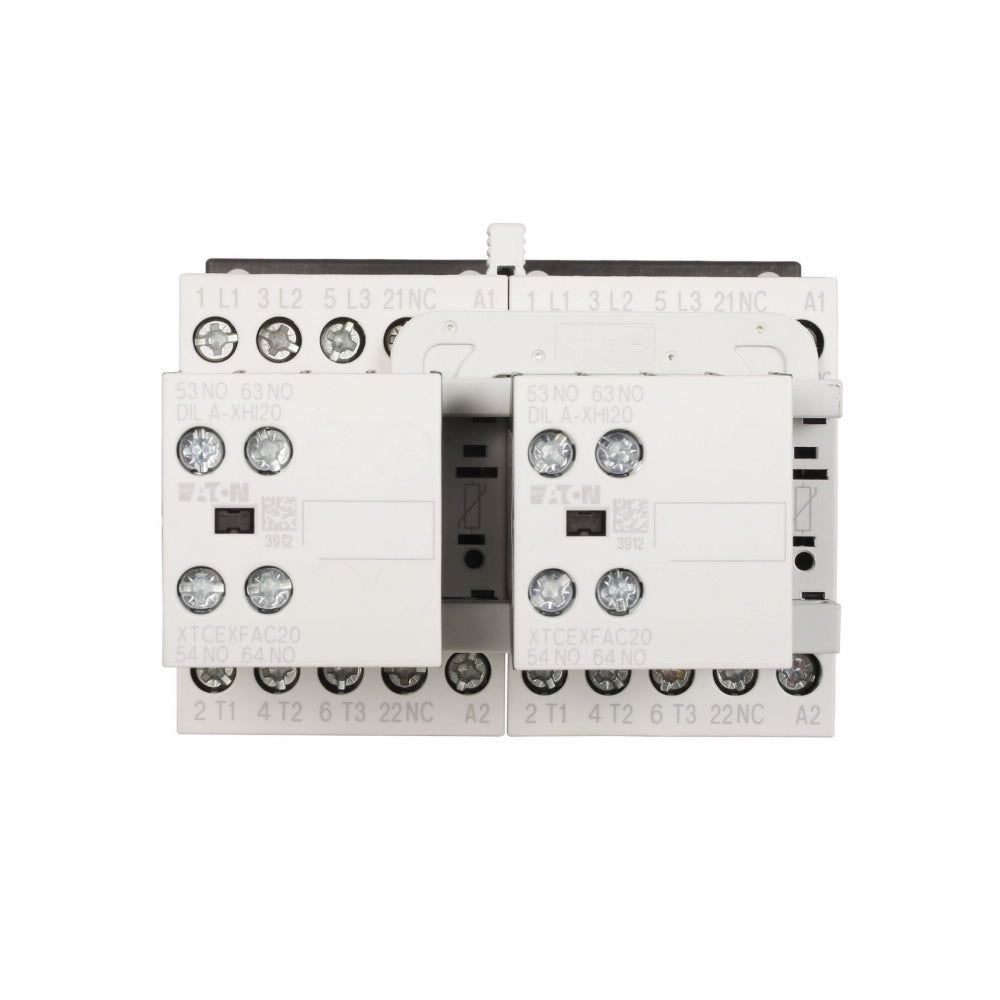

XTCR007B21A is a full voltage reversing IEC contactor from Cutler Hammer (Eaton) designed for motor control applications with a 7 ampere rated current and dual voltage coil capability. This 3 pole reversing contactor features a mechanical interlock, 2 normally open and 1 normally closed auxiliary contacts, and is suitable for DIN rail mounting in compact control enclosures. The unit operates on 110 Vac 50 Hz or 120 Vac 60 Hz coil supply and includes a wiring harness for simplified installation.
- Rated Current: 7 Amperes
- Poles: 3 Pole
- Coil Voltage: 110 Vac 50 Hz / 120 Vac 60 Hz
- Auxiliary Contacts: 2 Normally Open, 1 Normally Closed
- Frame Size: Frame B
- Mounting Type: DIN Rail
- Frequency Rating: 50/60 Hz
- Reversing Type: Full Voltage Reversing
- Mechanical Interlock: Yes
- Includes Wiring Harness: Yes
Specifications
- Part Number: XTCR007B21A
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : XT Series
- Type : XTCR
- Voltage : 600
- Amperage : 7
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 1 1/2 hp HP @ 3 Phase - 240V 2 hp HP @ 3 Phase - 480V 3 hp
- Aux Contacts : 2NO/1NC
- Coil Voltage Maximum : 120
- Full Load Amps : Full Load Amps-Inductive 7A Full Load Amps-Resistive 22A
- Coil Voltage Minimum : 120
Product Data
- UPC : 782116356034
- GTIN : 00782116356034
- Country of Origin : Romania
- Dimensions : 21 in x 28 in x 22 in (Length/Depth x Height x Width)
- Weight : 71 lb
- Certification : UL Listed
