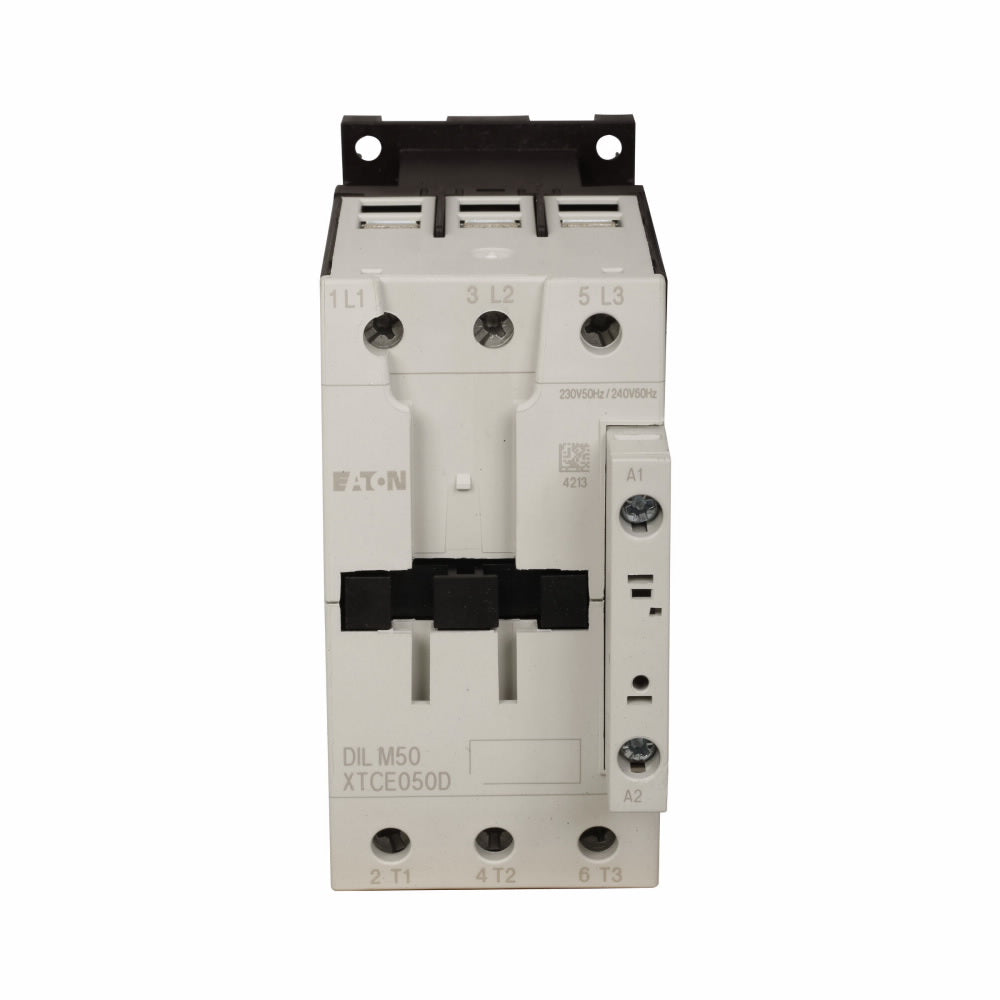

XTCE050D00T - Cutler Hammer 50A 3-Pole IEC Contactor, 24V AC Coil, Frame D, Screw Terminals, UL/CSA/CE Certified

XTCE050D00T

XTCE050D00T is a Cutler Hammer (Eaton) 3-pole, 50A IEC contactor designed for reliable motor control in industrial applications.

This full voltage non-reversing contactor features a 24V AC, 50-60 Hz operating coil, screw terminals, and a compact 55 mm frame size. It is suitable for a wide range of motor horsepower ratings across multiple voltages and is compliant with major international standards for safety and performance.

Key Specifications
• Amperage: 50A AC-3 (80A AC-1)
• Voltage: 24V AC coil (50-60 Hz)
• Poles: 3
• Mounting Type: Screw or DIN rail
• Interrupt Rating: Not specified in available data
• Series/Frame: XT IEC, Frame D (55 mm)
• Trip Unit: Not applicable (contactor only)
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Terminals: Screw type
• HP Rating: Up to 50 HP (varies by voltage)
• Frequency: 50-60 Hz
• Operation: Non-reversing

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 24 VAC coil.

Specifications

• Part Number: XTCE050D00T
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Type : XTCE050D
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 15 hp HP @ 3 Phase - 240V 20 hp HP @ 3 Phase - 480V 40 hp
• Configuration : Non-Reversing
• Aux Contacts : 0 NO + 0 NC
• Coil Voltage Maximum : 24
• Full Load Amps : Full Load Amps-Inductive 50A Full Load Amps-Resistive 80A
• Coil Voltage Minimum : 24
• Frequency : 50 Hz

Product Data

• UPC : 786685363240
• GTIN : 04015082778347
• Country of Origin : Romania
• Dimensions : 5.77952756 in x 4.09448819 in x 2.16535433 in (Length/Depth x Height x Width)
• Weight : 0.5070632
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
