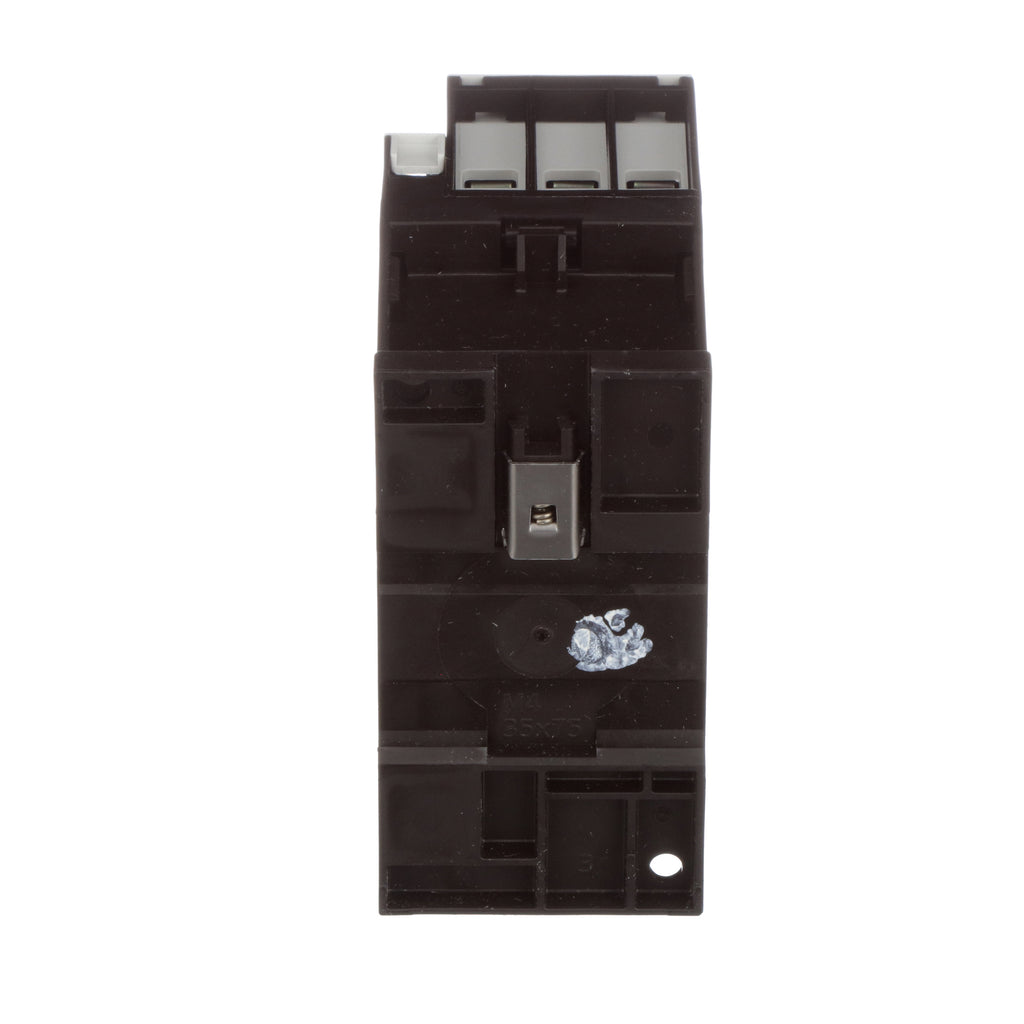

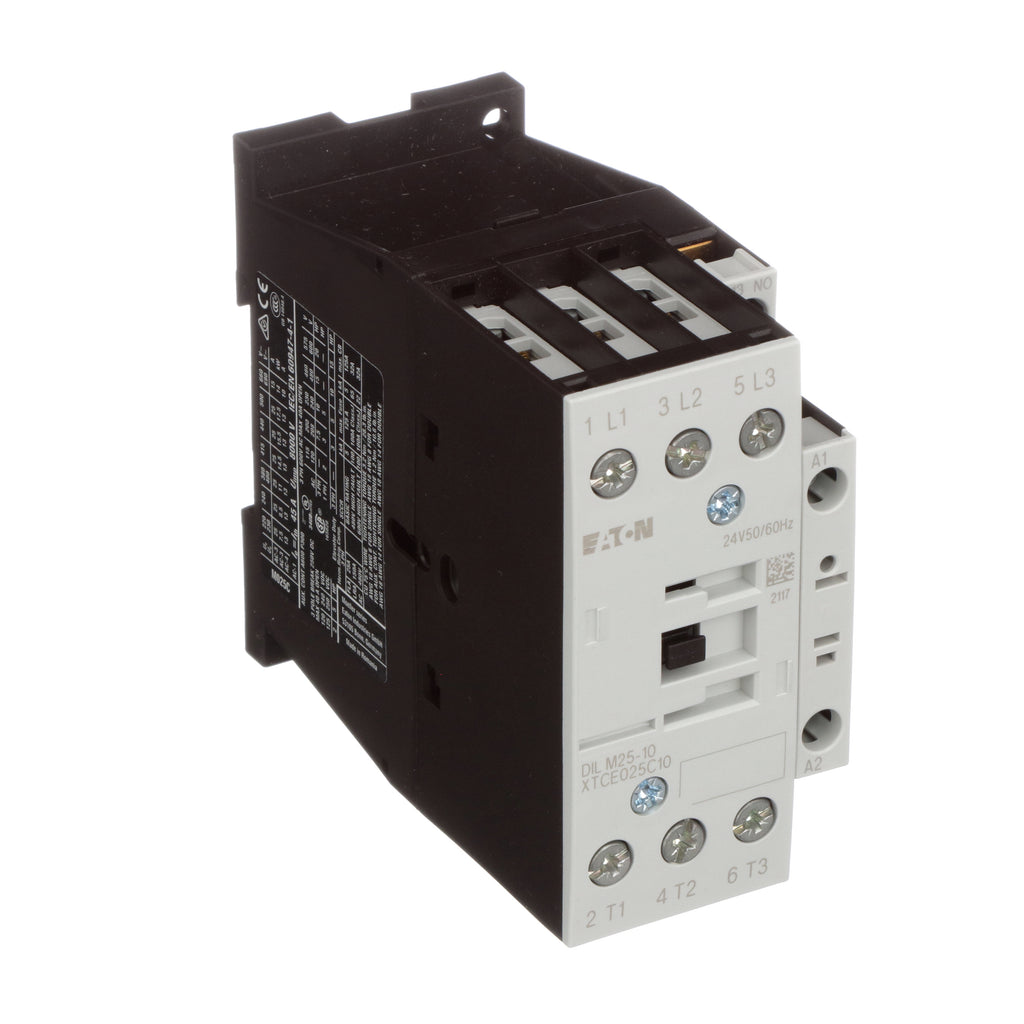

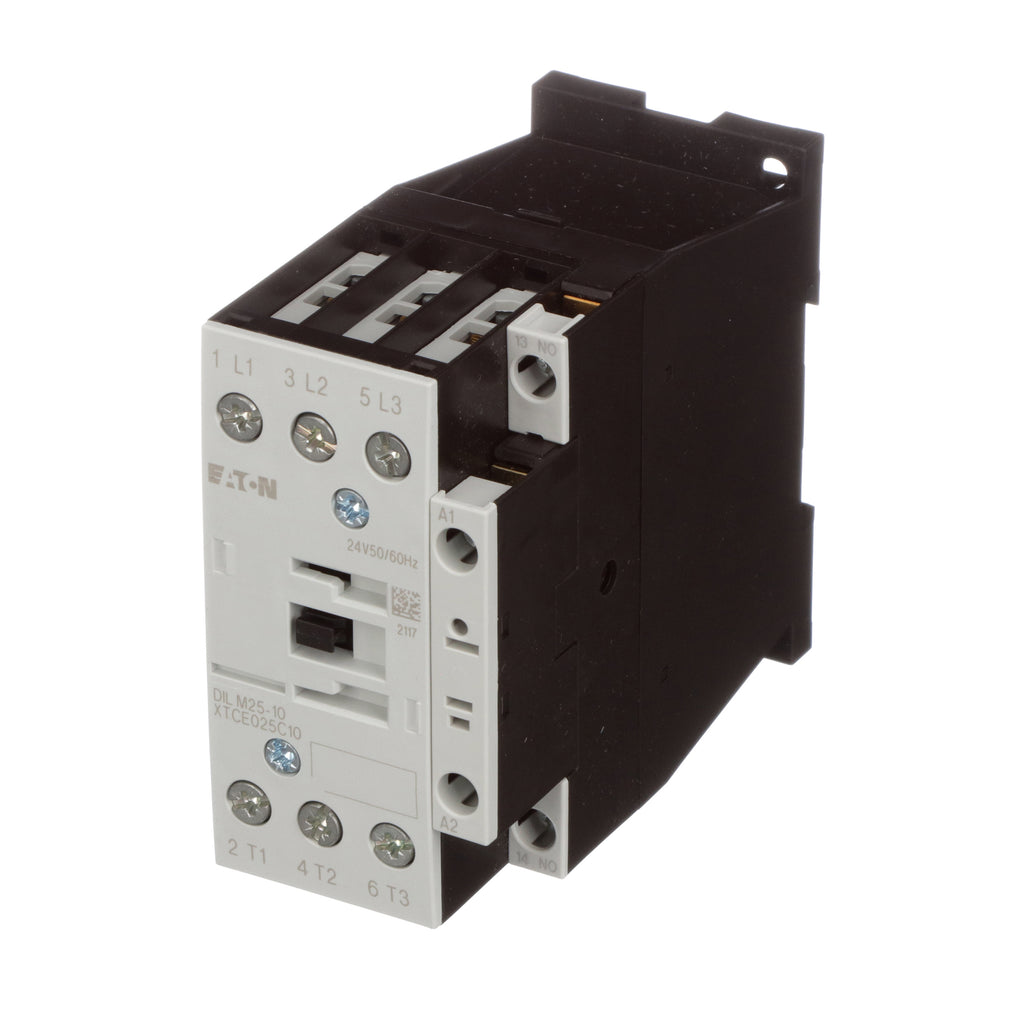

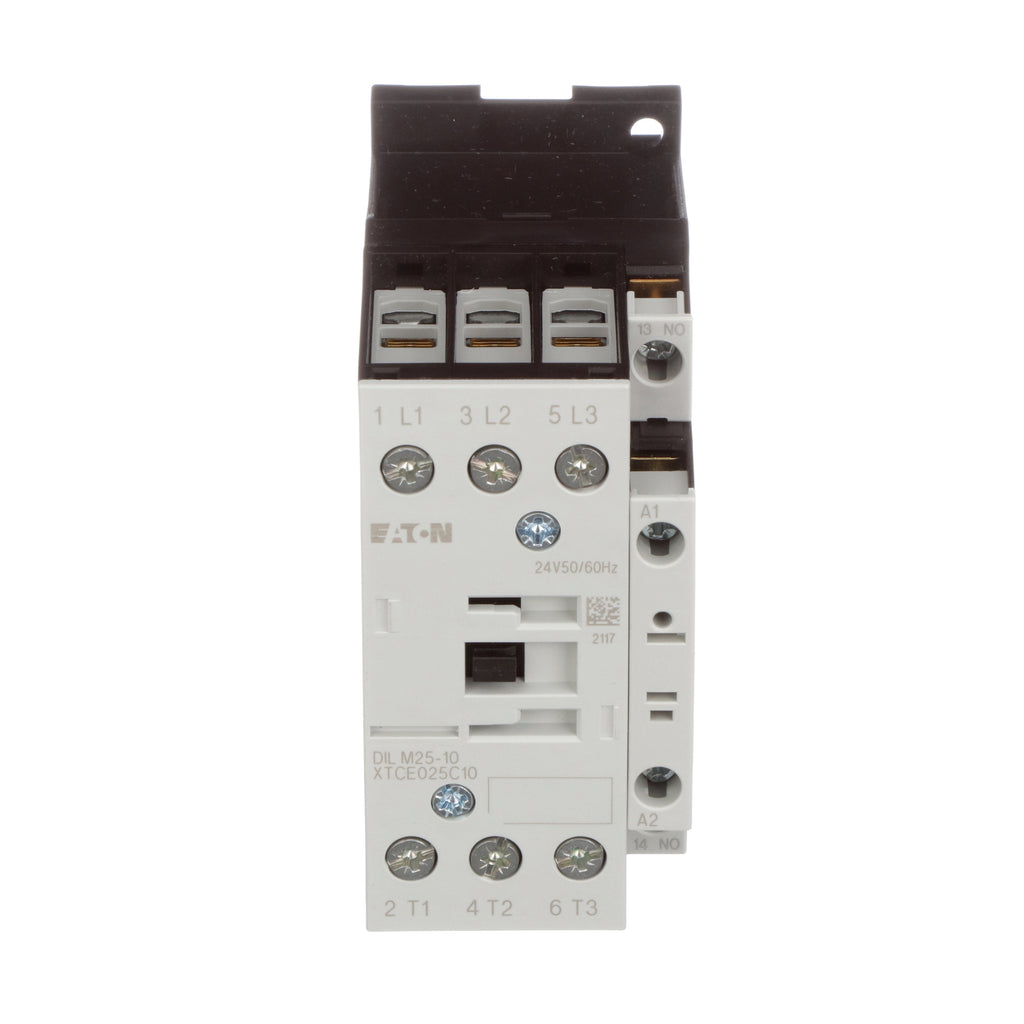

XTCE025C10T - Cutler Hammer 25A 600V 3 Pole XT Series Motor Contactor 24VAC Coil Frame C

XTCE025C10T

XTCE025C10T is a Cutler Hammer XT Series 3 pole motor contactor rated for 25 amps and 600 volts with a 24 VAC coil.This full voltage non-reversing contactor features screw terminals, a 45 mm Frame C size, and is suitable for 3 phase motor control applications. It supports horsepower ratings up to 20 HP depending on voltage and meets UL, CSA, IEC 60947, and CE certifications for reliable industrial use.

• Amperage Rating: 25A
• Voltage Rating: 600 VAC
• Coil Voltage: 24 VAC, 50-60 Hz
• Number of Poles: 3
• Frame Size: C (45 mm)
• Contact Configuration: 1 Normally Open (NO) auxiliary contact
• Mounting Type: Screw or DIN rail compatible
• Interrupt Rating: AC-3 25A, AC-1 40A
• Type: Full voltage non-reversing contactor
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Terminals: Screw terminals
• Series: XT IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 24 VAC coil.

Specifications

• Part Number: XTCE025C10T
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Type : XTCE025C
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 10 hp HP @ 3 Phase - 480V 15 hp
• Configuration : Non-Reversing
• Aux Contacts : 1 NO
• Coil Voltage Maximum : 24
• Full Load Amps : Full Load Amps-Inductive 25A Full Load Amps-Resistive 45A
• Coil Voltage Minimum : 24
• Frequency : 50 Hz

Product Data

• UPC : 4015082771362
• GTIN : 04015082771362
• Country of Origin : Romania
• Dimensions : 4 in x 1.5 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 0.5070632 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
