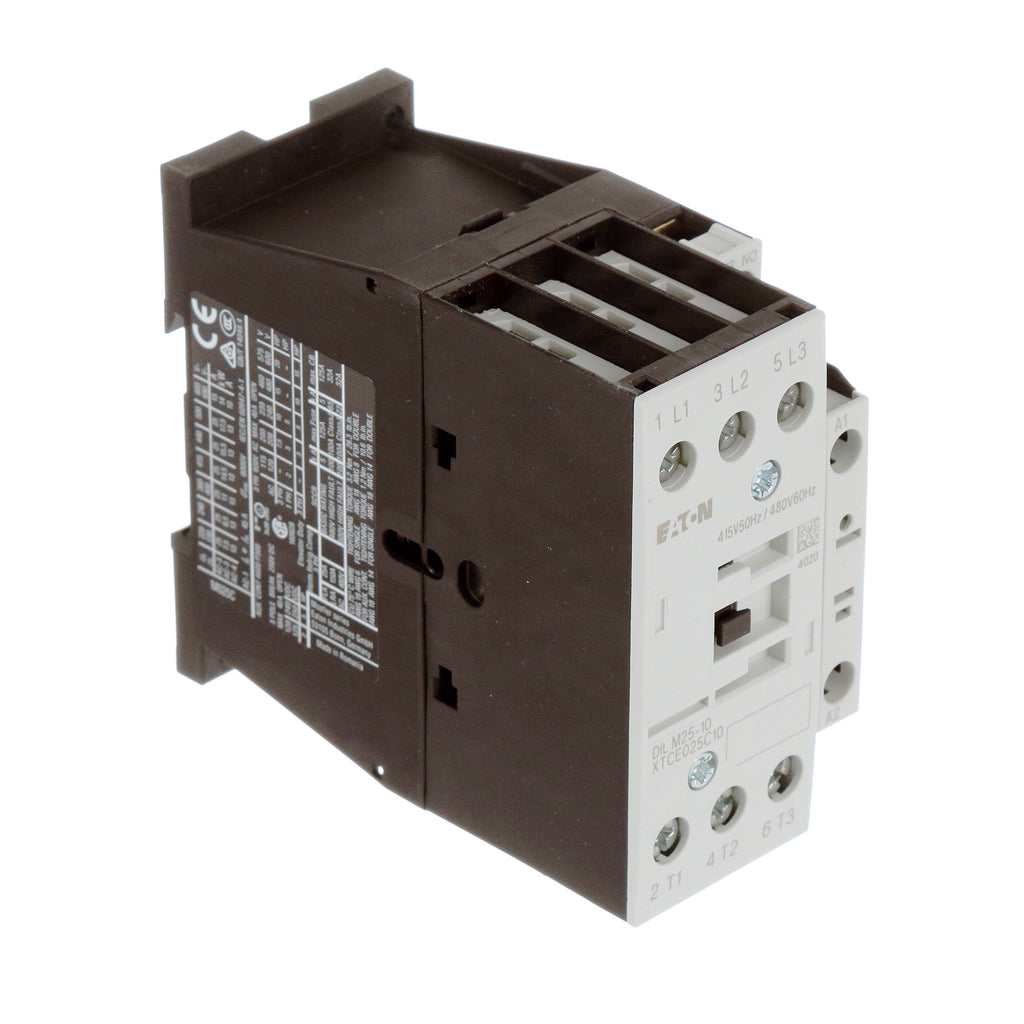

XTCE025C10C - Cutler Hammer 25 Amp 3 Pole IEC Contactor 480V Coil Frame C

XTCE025C10C

XTCE025C10C is a 3 pole, 25 amp IEC contactor from Cutler Hammer designed for motor control applications with a 480 volt AC coil.This contactor features a 3-phase non-reversing design with a 25 amp AC-3 rating and supports motor loads up to 15 HP at 460 volts. It includes 1 normally open auxiliary contact and offers flexible mounting options including screw or DIN rail. The device meets IEC, UL, CSA, CCC, and CE certifications, ensuring global compliance and reliable performance.

Key Specifications
• Amperage: 25 Amp AC-3, 40 Amp AC-1
• Voltage: 440/480 Volt AC Coil
• Poles: 3 Pole
• Mounting: Screw or DIN Rail
• Interrupt Rating: IEC Rated
• Frame: C
• Auxiliary Contacts: 1 Normally Open (N.O.)
• Horsepower Rating: 15 HP at 460V, 7.5 HP at 230V
• Trip Unit: Non-Reversing
• Certifications: IEC, UL, CSA, CCC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 412 VAC coil.

Specifications

• Part Number: XTCE025C10C
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Type : XTCE025C
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 10 hp HP @ 3 Phase - 480V 15 hp
• Configuration : Non-Reversing
• Aux Contacts : 1 NO
• Coil Voltage Maximum : 480
• Full Load Amps : Full Load Amps-Inductive 25A Full Load Amps-Resistive 45A
• Coil Voltage Minimum : 480
• Frequency : 50 Hz

Product Data

• UPC : 786685352275
• Country of Origin : Romania
• Dimensions : 3.425 in x 3.898 in x 1.85 in (Length/Depth x Height x Width)
• Weight : 0.9 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
