XTCE018C10E - Cutler Hammer 18A 3-Pole IEC Contactor, 208V AC Coil, 1NO Auxiliary, XT Series, Frame C, Screw/DIN Rail Mount, 600V Interrupt, UL/CSA/CE Certified

XTCE018C10E

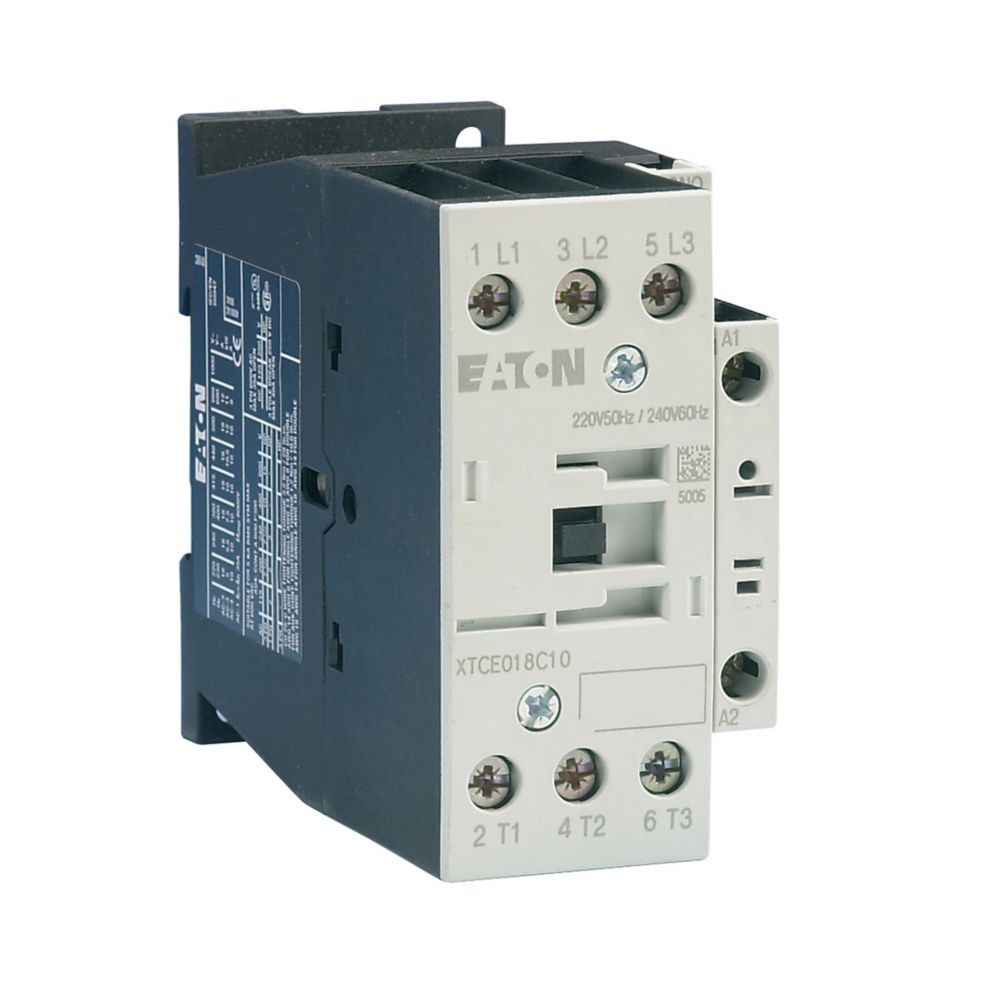

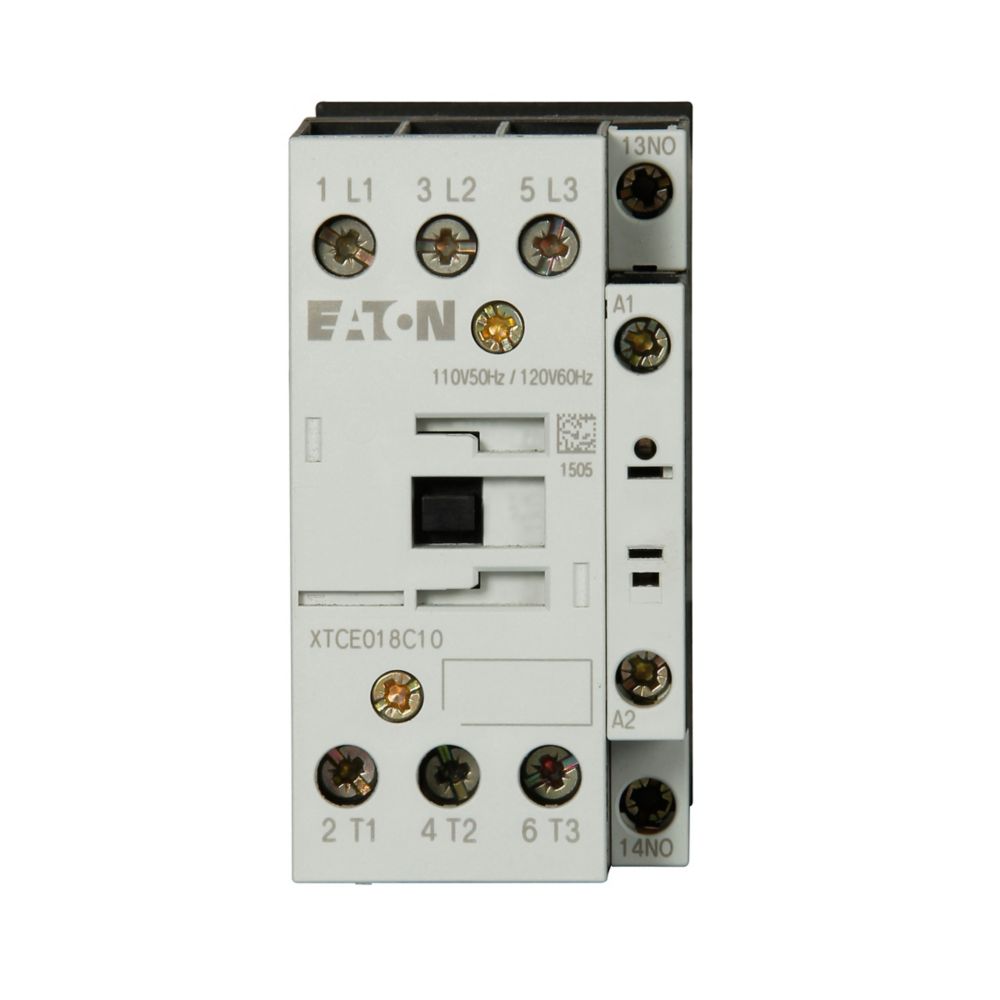

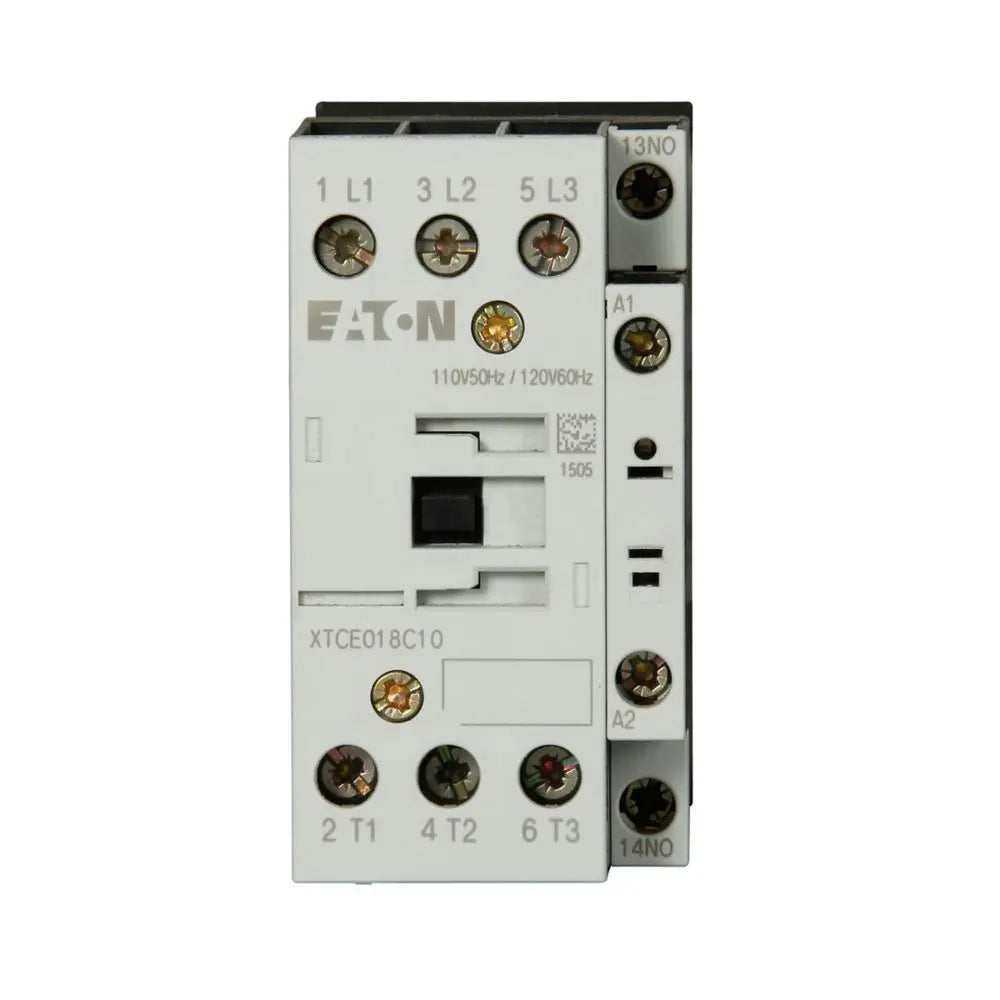

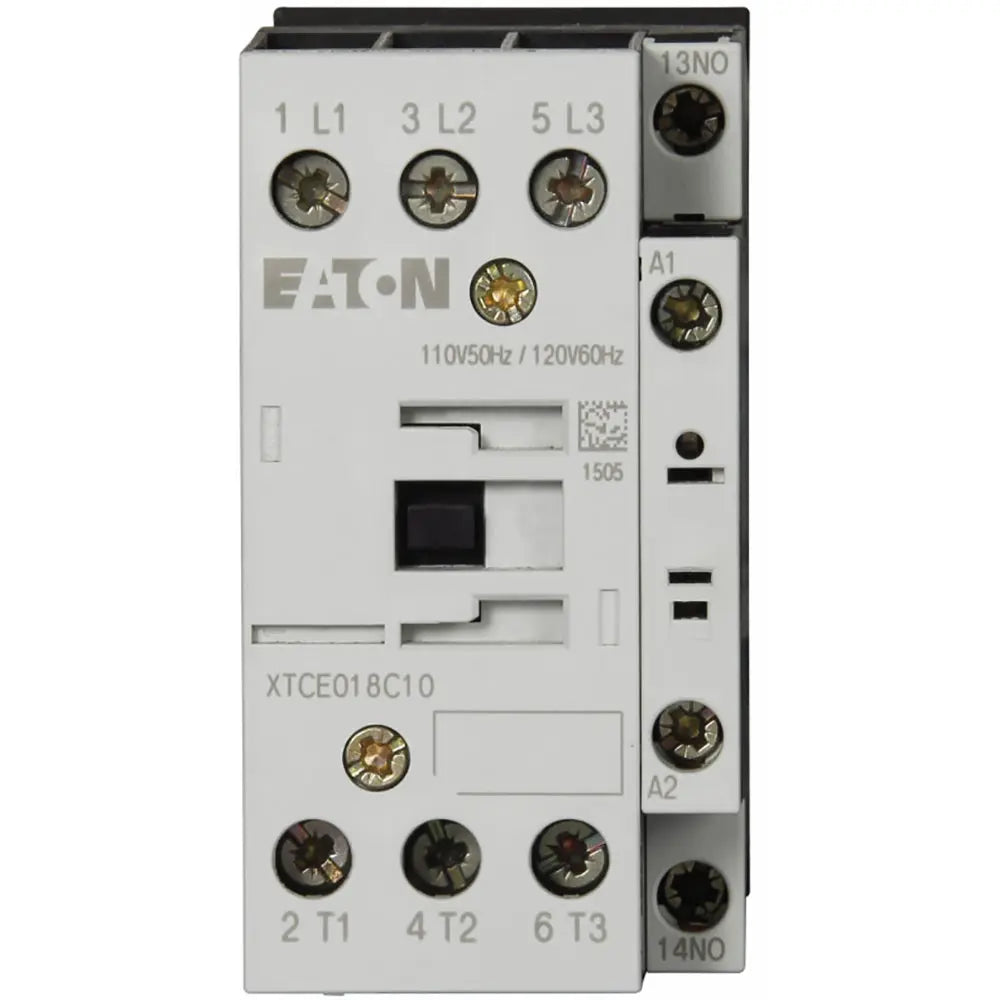

XTCE018C10E is a Cutler Hammer 3-pole IEC contactor designed for reliable motor control in industrial applications.

This non-reversing contactor features an 18A AC-3 rating (40A AC-1), 208V AC coil, and is suitable for 1-phase and 3-phase systems at 115V, 200V, 230V, 460V, and 575V. It includes one normally open (NO) base-mounted auxiliary contact, supports both screw and DIN rail mounting, and is part of the compact, globally certified XT Series.

Key Specifications

• Amperage: 18A AC-3, 40A AC-1
• Voltage: 208V AC coil; 600V maximum
• Poles: 3
• Mounting Type: Screw or DIN rail
• Interrupt Rating: 600V
• Series/Frame: XT Series, Frame C (45mm)
• Trip Unit: Not applicable (contactor only)
• Certifications: UL, CSA, CE, CCC, IEC compliant
• Auxiliary Contact: 1 NO
• Horsepower: 5 HP @ 230V, 10 HP @ 460V (3-phase)
• Control: AC 12–600V, 50/60Hz; DC 12–220V
• Terminals: Screw or spring cage

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 208 VAC coil.

Specifications

• Part Number: XTCE018C10E
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Type : XTCE018C
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Configuration : Non-Reversing
• Aux Contacts : 1 NO
• Coil Voltage Maximum : 208
• Coil Voltage Minimum : 208
• Frequency : 60 Hz

Product Data

• UPC : 4015082769987
• GTIN : 04015082769987
• Country of Origin : Romania
• Dimensions : 3.425 in x 3.898 in x 1.85 in (Length/Depth x Height x Width)
• Weight : 0.9 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
