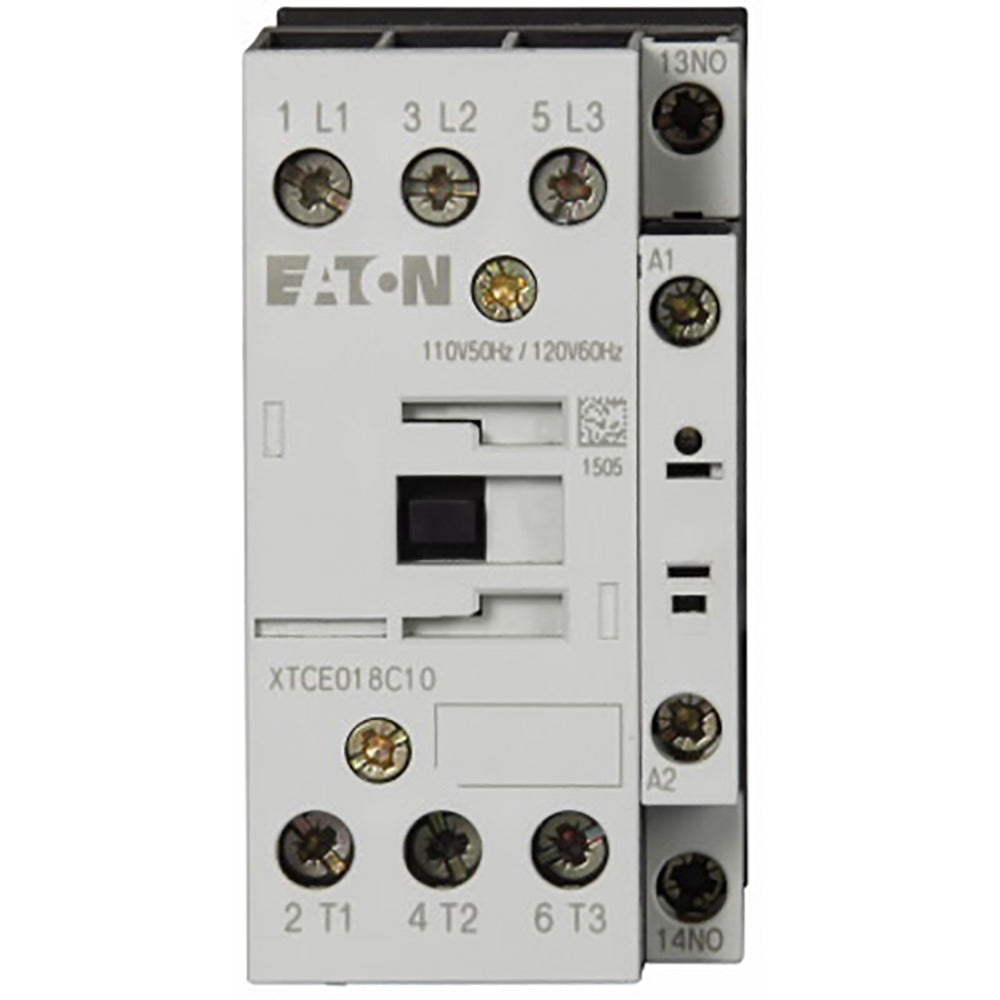

XTCE018C10C - Cutler Hammer 18A 600VAC 3 Pole Motor Contactor XT Series DIN Rail Panel Mount

XTCE018C10C

XTCE018C10C is a Cutler Hammer XT Series 3-pole motor contactor rated for 18 amps and 600VAC, designed for reliable motor control applications.This contactor features a 3-phase, 3-pole configuration with a coil voltage range of 412 to 480VAC at 50/60Hz. It includes 1 normally open (NO) auxiliary contact and supports both DIN rail and panel mounting. The device conforms to IEC 60947 standards and carries certifications including CE, UL, CSA, IEC, EN, CCC, and ATEX. It is suitable for non-reversing motor control with screw terminal connections and a Frame C size.

Key Specifications
• Amperage: 18A (AC-3 rating)
• Voltage: 600VAC operational voltage
• Poles: 3-pole, 3-phase
• Coil Voltage: 412-480VAC, 50/60Hz
• Auxiliary Contact: 1 Normally Open (NO)
• Mounting Type: DIN rail and panel mount
• Frame Size: C
• Contact Configuration: Non-reversing
• Terminals: Screw type
• Certifications: CE, UL, CSA, IEC, EN, CCC, ATEX
• Standards: IEC 60947, RoHS compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 412 VAC coil.

Specifications

• Part Number: XTCE018C10C
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Type : XTCE018C
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• Configuration : Non-Reversing
• Aux Contacts : 1 NO
• Coil Voltage Maximum : 480
• Coil Voltage Minimum : 480
• Frequency : 50 Hz

Product Data

• UPC : 4015082770075
• GTIN : 04015082770075
• Country of Origin : Romania
• Dimensions : 4 in x 2 in x 1.85 in (Length/Depth x Height x Width)
• Weight : 0.9 lb
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
