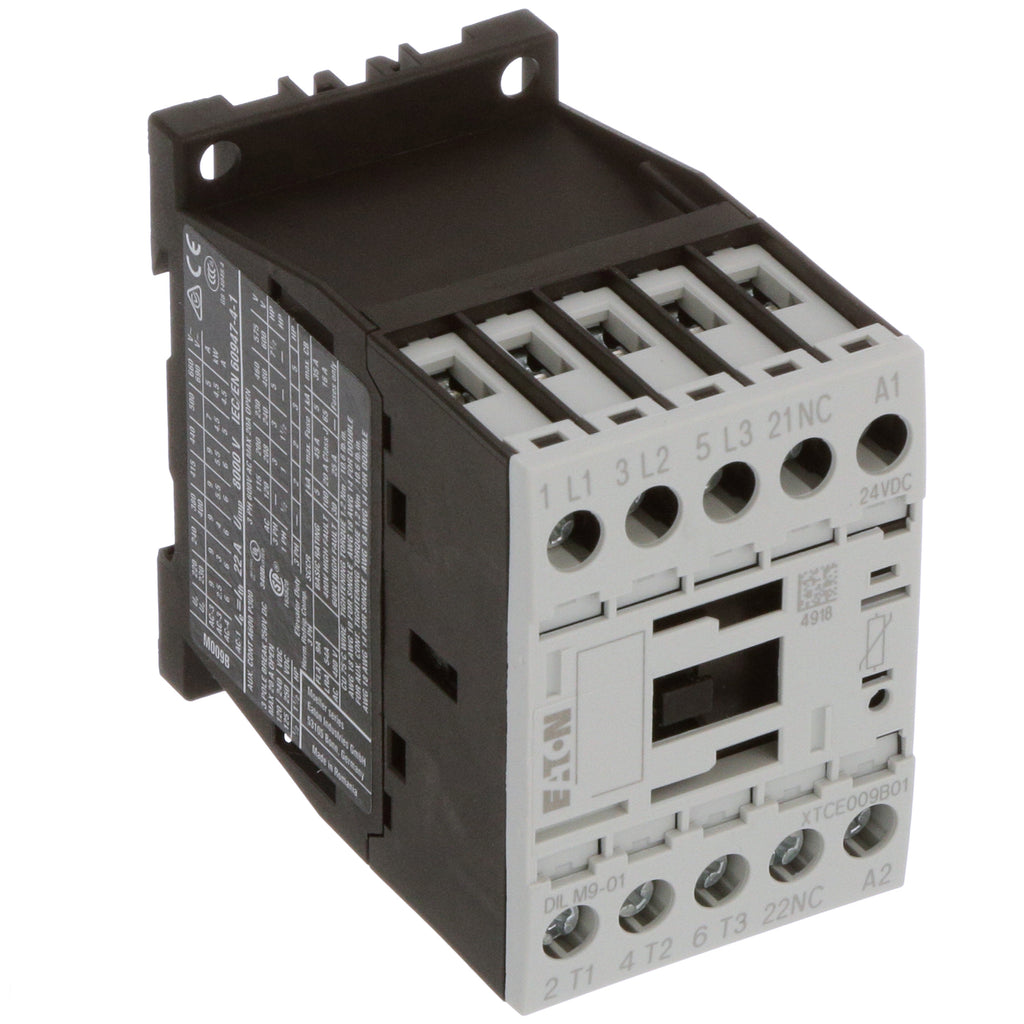

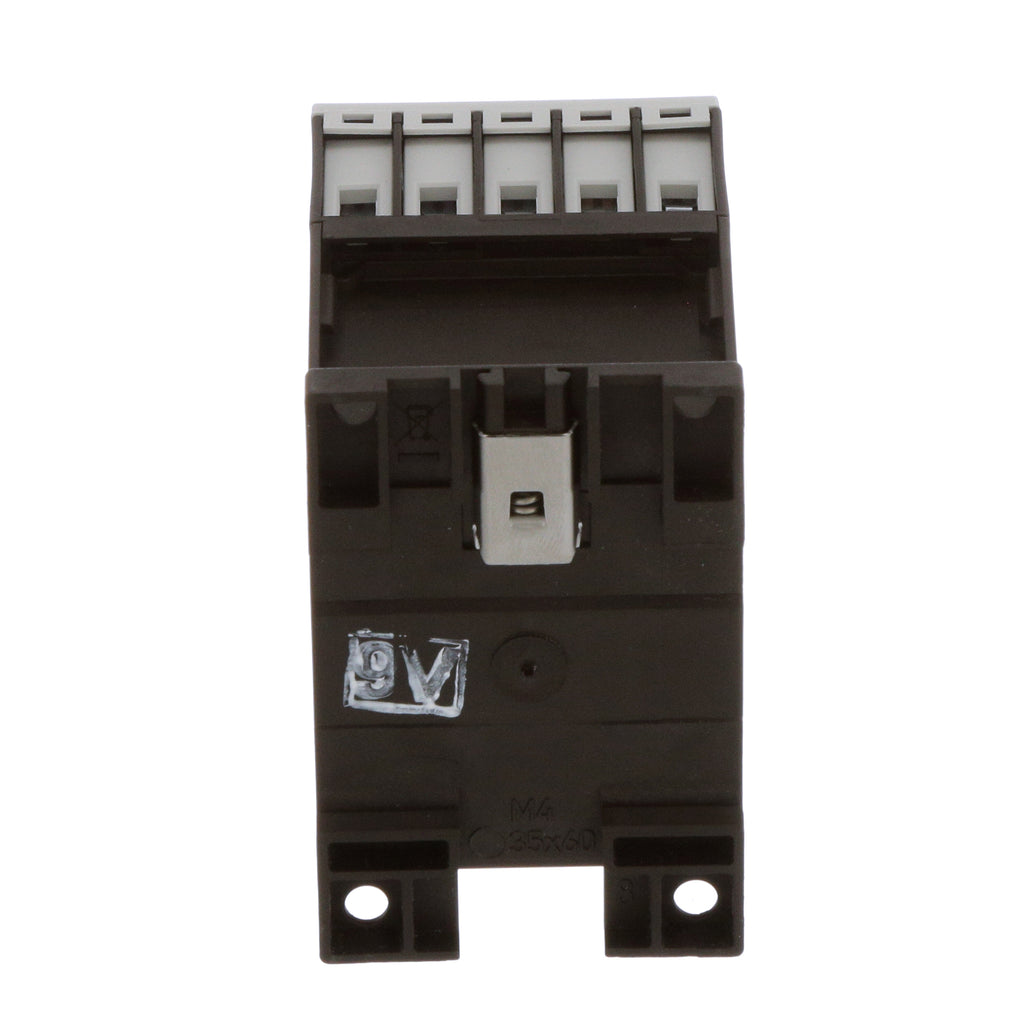

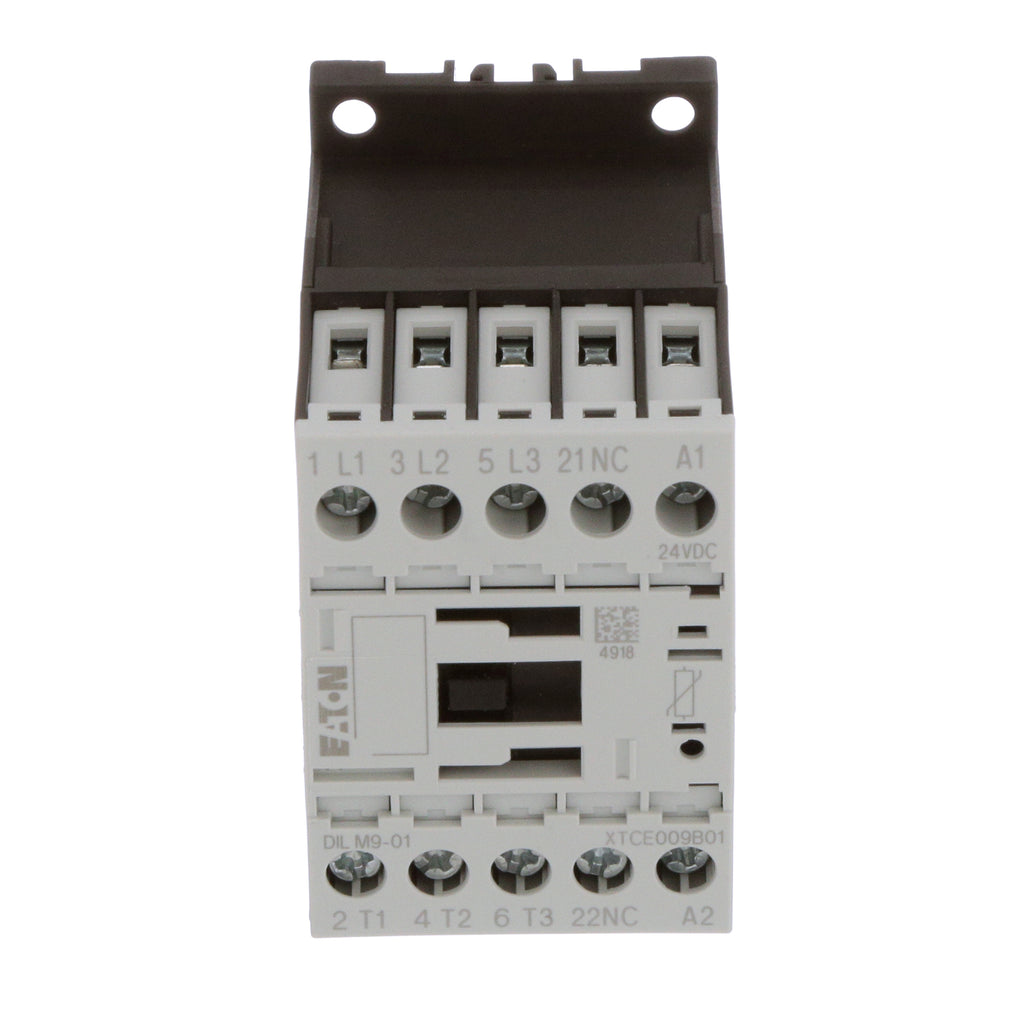

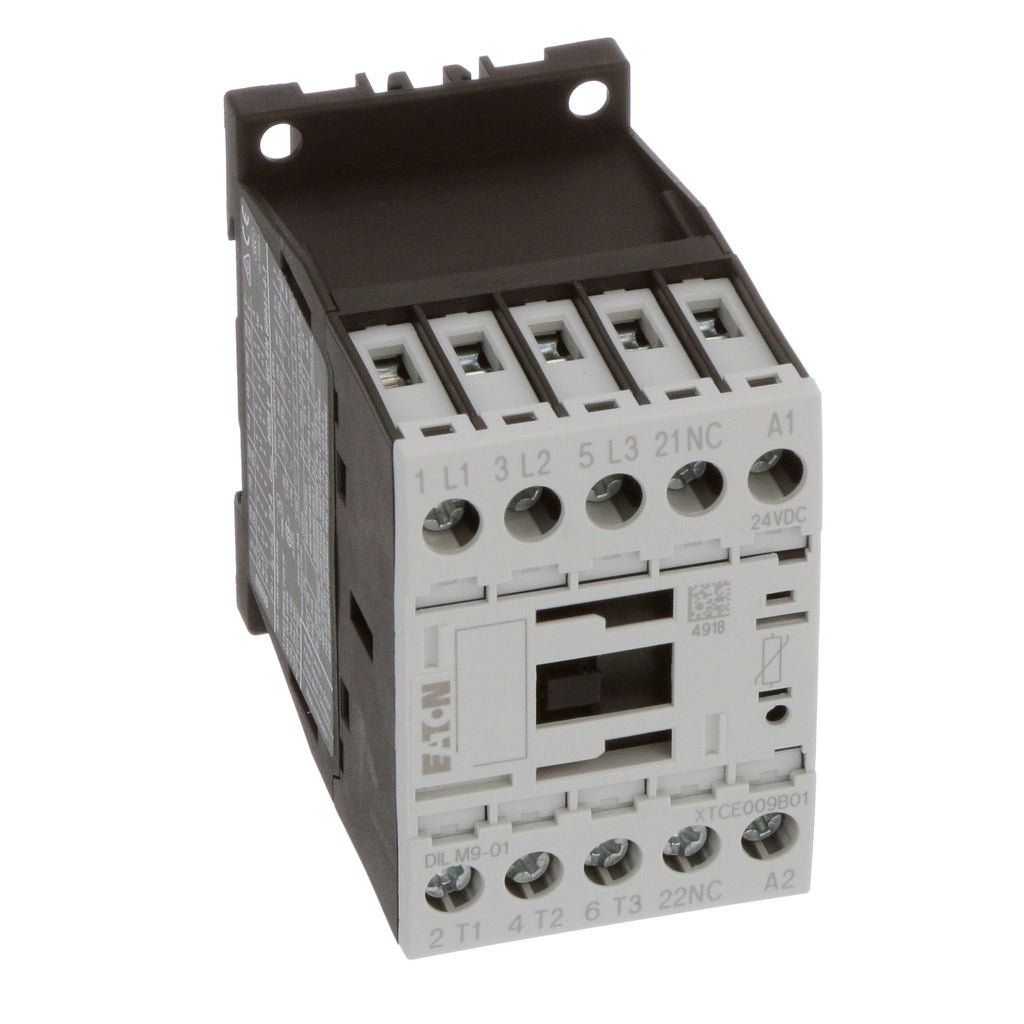

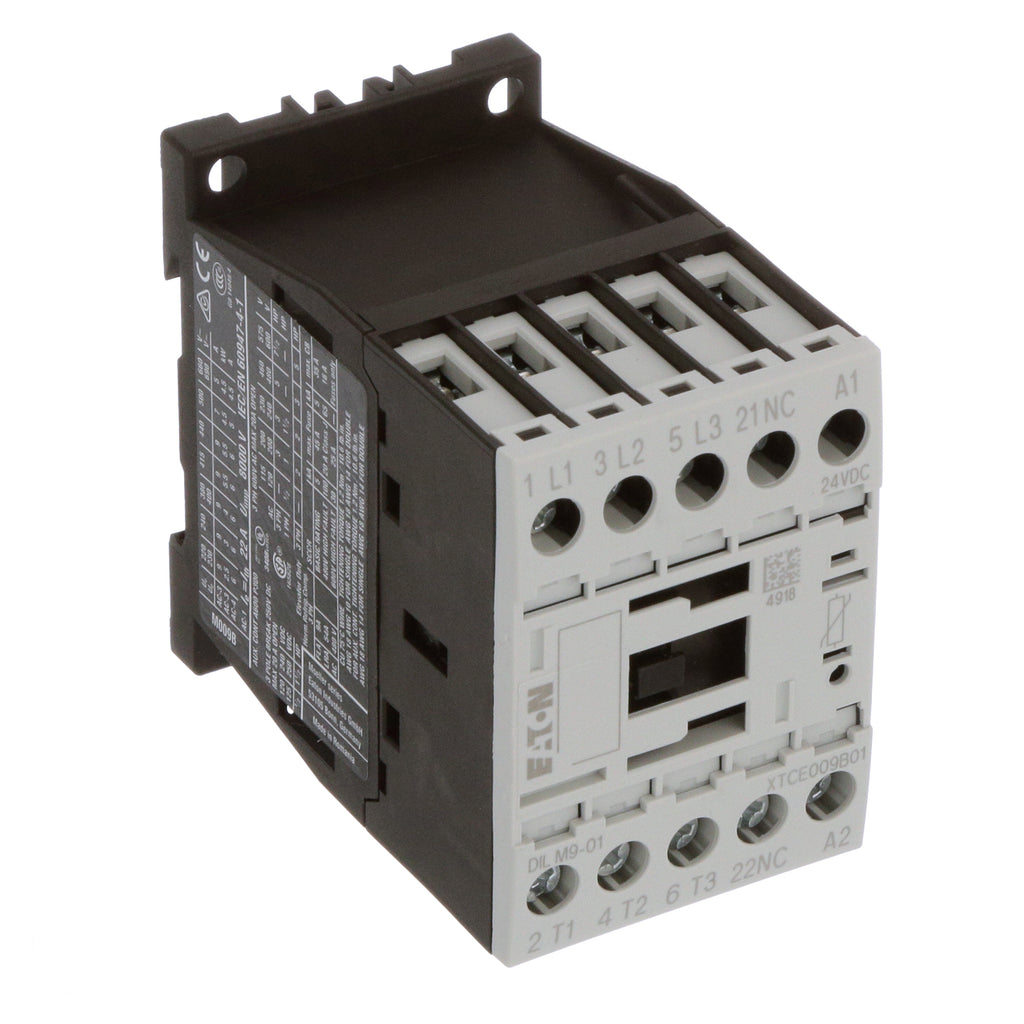

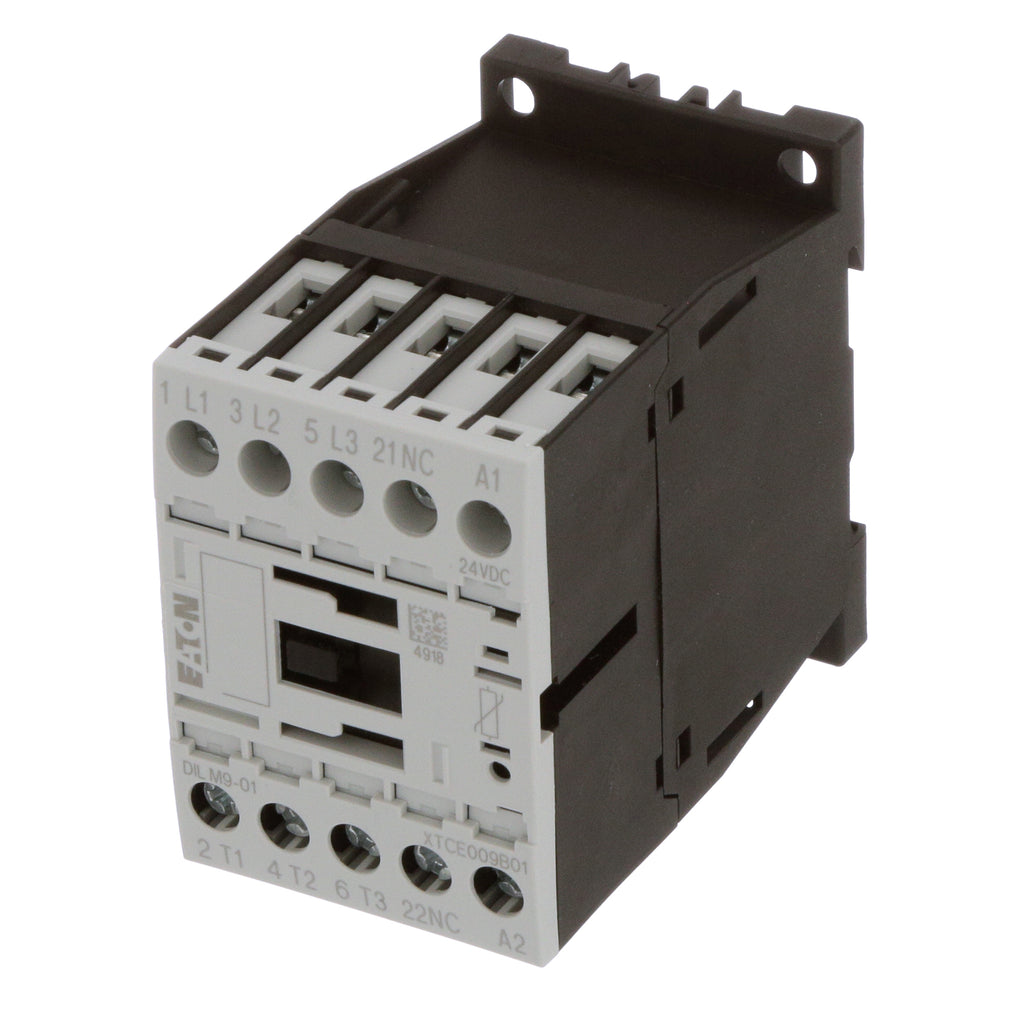

XTCE009B01TD - Cutler Hammer 9A 24VDC 3-Pole IEC Motor Contactor Frame B

XTCE009B01TD

XTCE009B01TD is a Cutler Hammer IEC motor contactor designed for controlling three-phase electric motors with a 9 ampere rating and 24 VDC coil voltage.This motor contactor features a Frame B size with a 45 mm width, three poles, and one normally closed (1NC) auxiliary contact. It supports motor horsepower ratings up to 5 HP at 460V and 3 HP at 230V, suitable for full voltage non-reversing applications. The device complies with IEC 60947 standards and is ideal for industrial motor control.

• Amperage Rating: 9A
• Coil Voltage: 24 VDC
• Number of Poles: 3 (Three-pole)
• Frame Size: B (45 mm)
• Auxiliary Contacts: 1 Normally Closed (1NC)
• Horsepower Ratings: 3 HP at 230V, 5 HP at 460V
• Type: Full Voltage Non-Reversing Contactor
• Standards: IEC 60947 Compliant
• Mounting Type: Panel Mount (IEC Standard)
• Interrupt Rating: IEC Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 24 VDC coil.

Specifications

• Part Number: XTCE009B01TD
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Voltage : 600
• Amperage : 9
• Phase : 3
• Poles : 3
• Configuration : Non-Reversing
• Aux Contacts : 1 NC
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24
• Compatible Frames : PDG,PDF

Product Data

• UPC : 4015082767402
• GTIN : 04015082767402
• Country of Origin : Romania
• Dimensions : 3 in x 2 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.3 lb
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
