XTCE009B01A - Cutler Hammer XT Series 3 Pole 9A 3 Phase Contactor 110/120VAC 1NC Frame B

XTCE009B01A

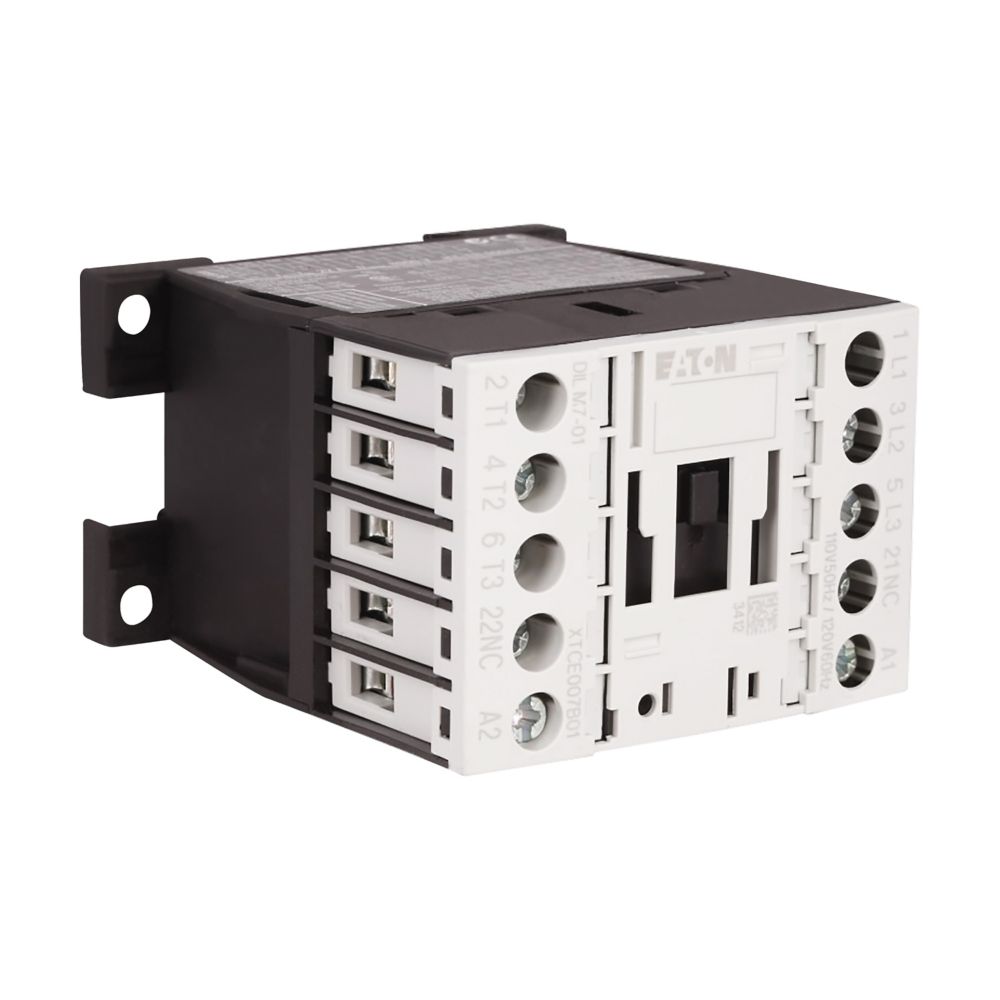

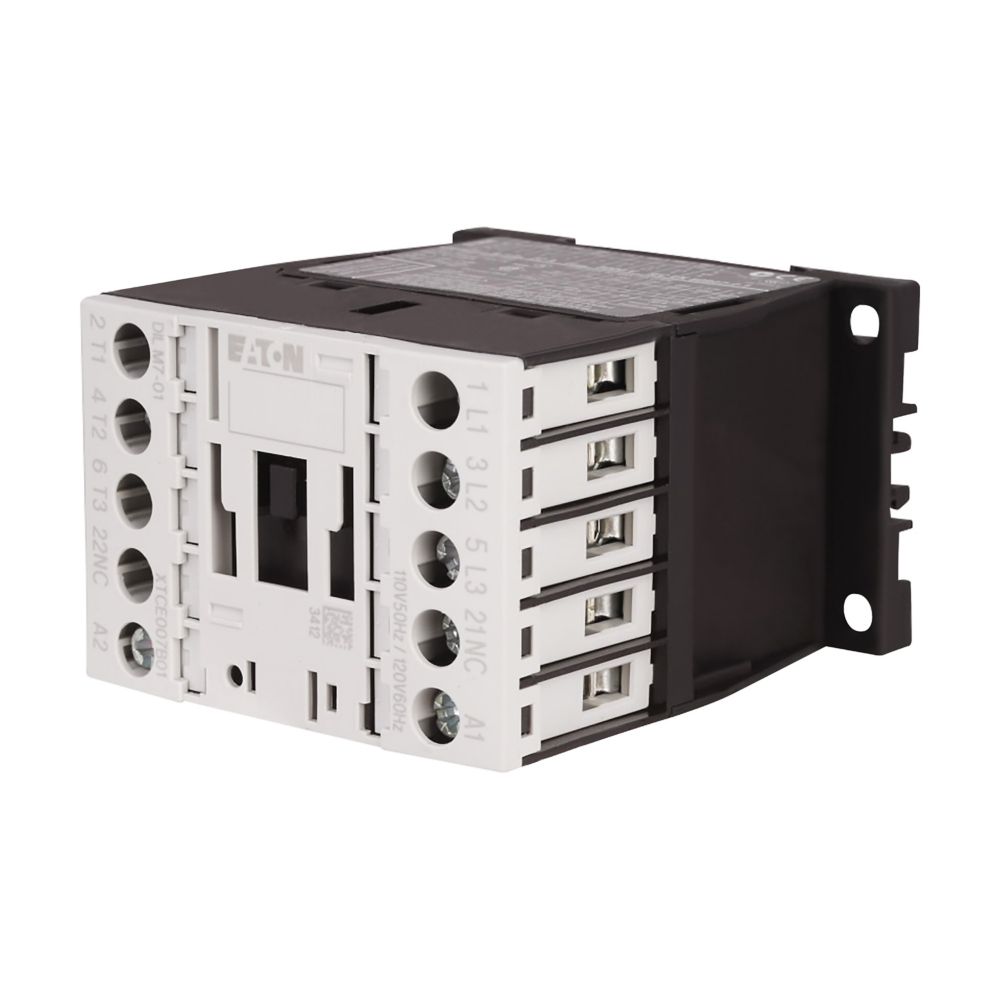

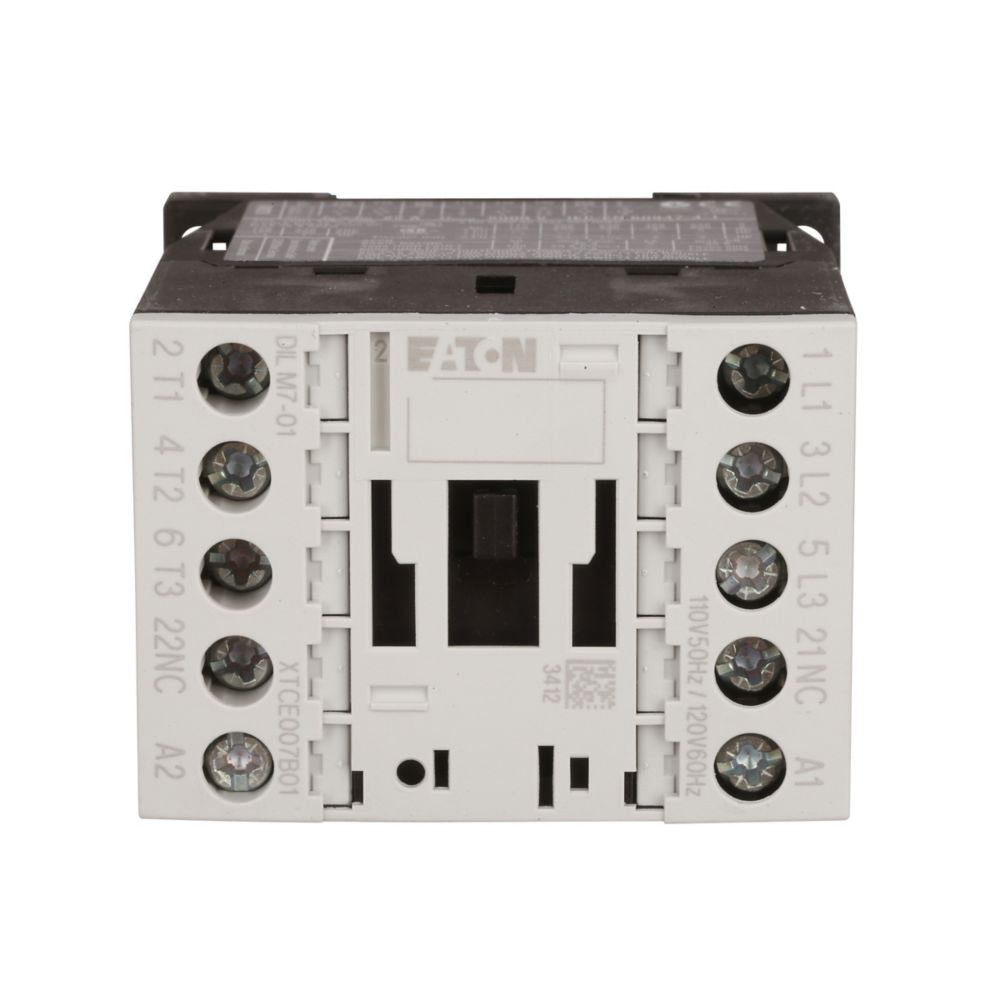

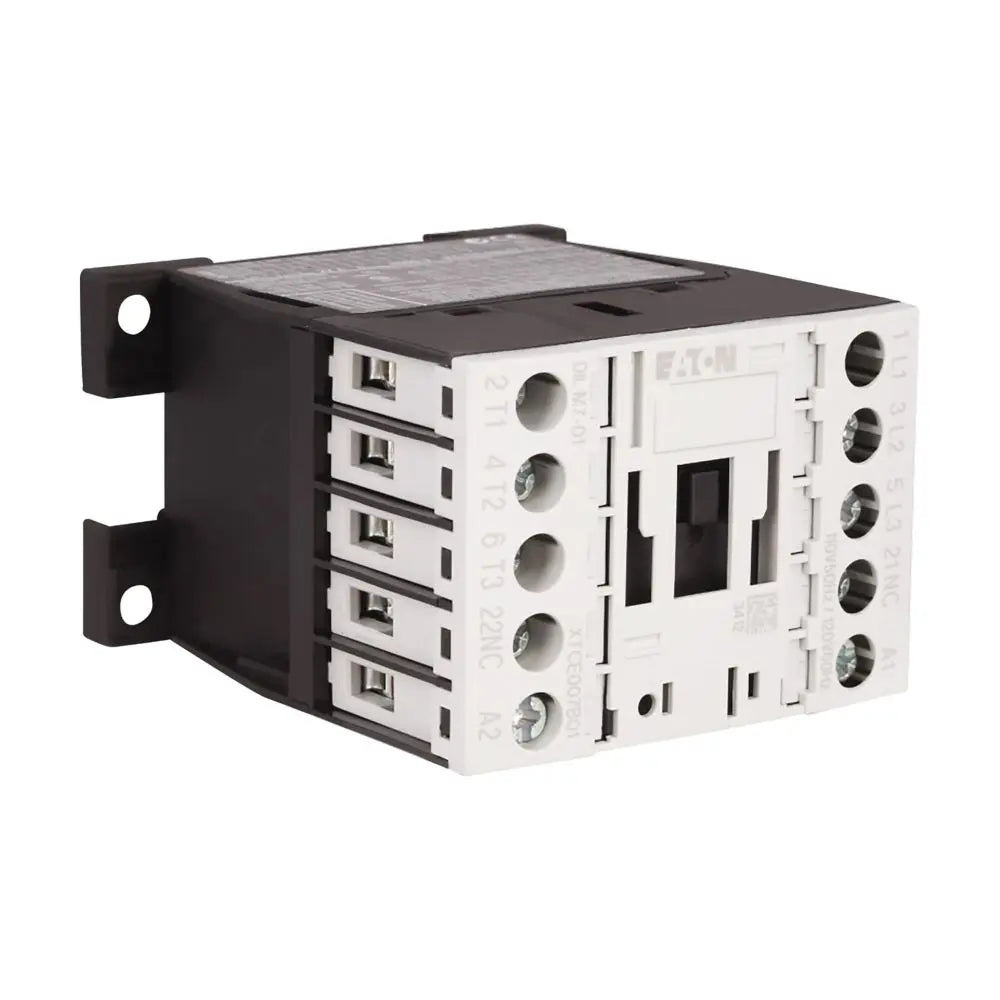

XTCE009B01A is a Cutler Hammer XT Series 3 pole, 9A, 3 phase contactor with a 110/120VAC coil and 1 normally closed auxiliary contact. This contactor is designed for reliable motor control in industrial applications. The XTCE009B01A features a compact frame B design, suitable for both screw and DIN rail mounting. It is rated for 3 HP at 230V and 5 HP at 460V, with an AC-3 rating of 9A and AC-1 rating of 20A. The contactor meets IEC 60947 standards and is certified for use in a wide range of environments.

• Manufacturer: Cutler Hammer
• Series: XT Series
• Frame: B
• Poles: 3
• Continuous Ampere Rating: 9A AC-3, 20A AC-1
• Coil Voltage: 110VAC 50Hz, 120VAC 60Hz
• Mounting: Screw or DIN rail
• Auxiliary Contact: 1NC
• Interrupt Rating: 600V
• Electrical Ratings: 3 HP @ 230V, 5 HP @ 460V
• Certifications: IEC 60947, UL, CSA, CCC, CE
• Application: Motor control, industrial equipment

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 110 VAC coil.

Specifications

• Part Number: XTCE009B01A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Voltage : 600
• Amperage : 9
• Phase : 3
• Poles : 3
• Configuration : Non-Reversing
• Aux Contacts : 1 NC
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 120
• Compatible Frames : PDG,PDG Frame 4
• Frequency : 50 Hz

Product Data

• UPC : 015082767222
• Country of Origin : Romania
• Dimensions : 2.75 in x 2 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.5070632
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
