XTCE007B10TD - Cutler Hammer 7A 3-Pole 24VDC IEC Motor Contactor Frame B

XTCE007B10TD

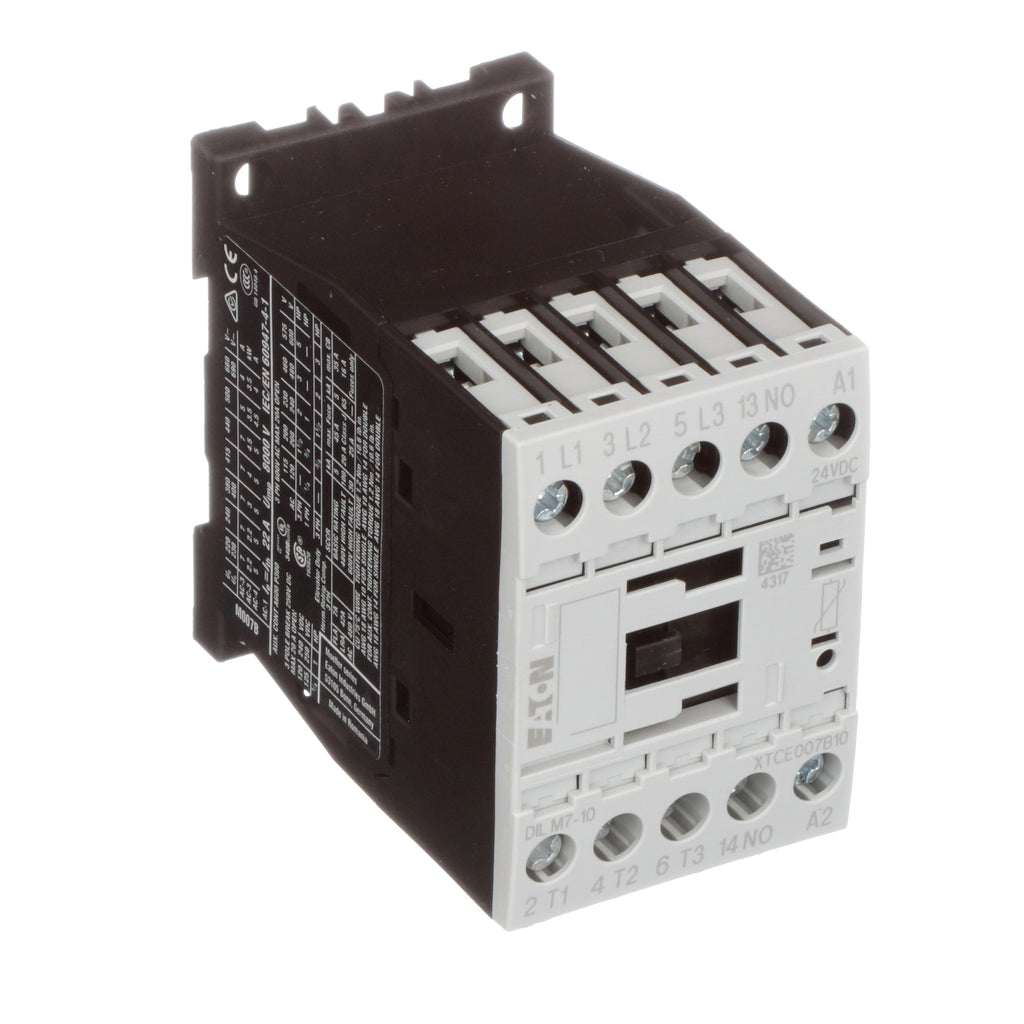

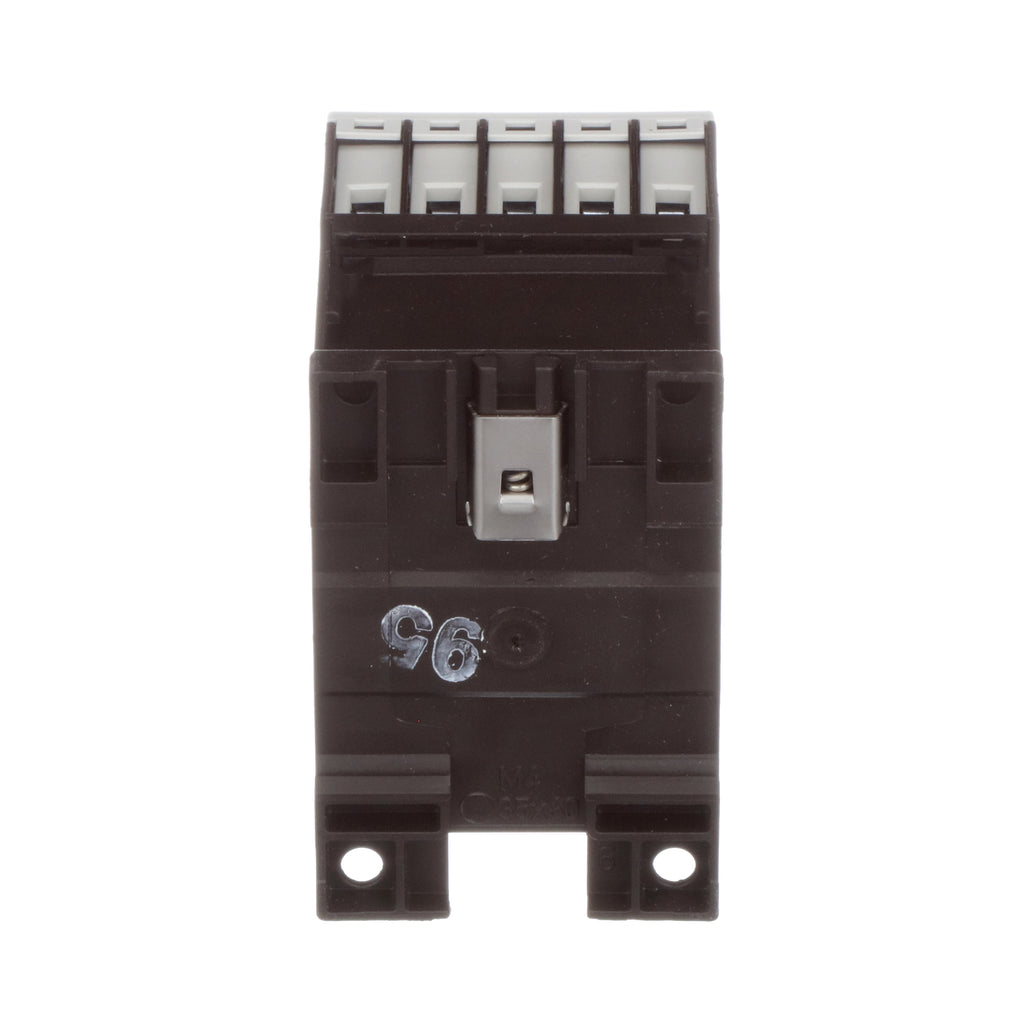

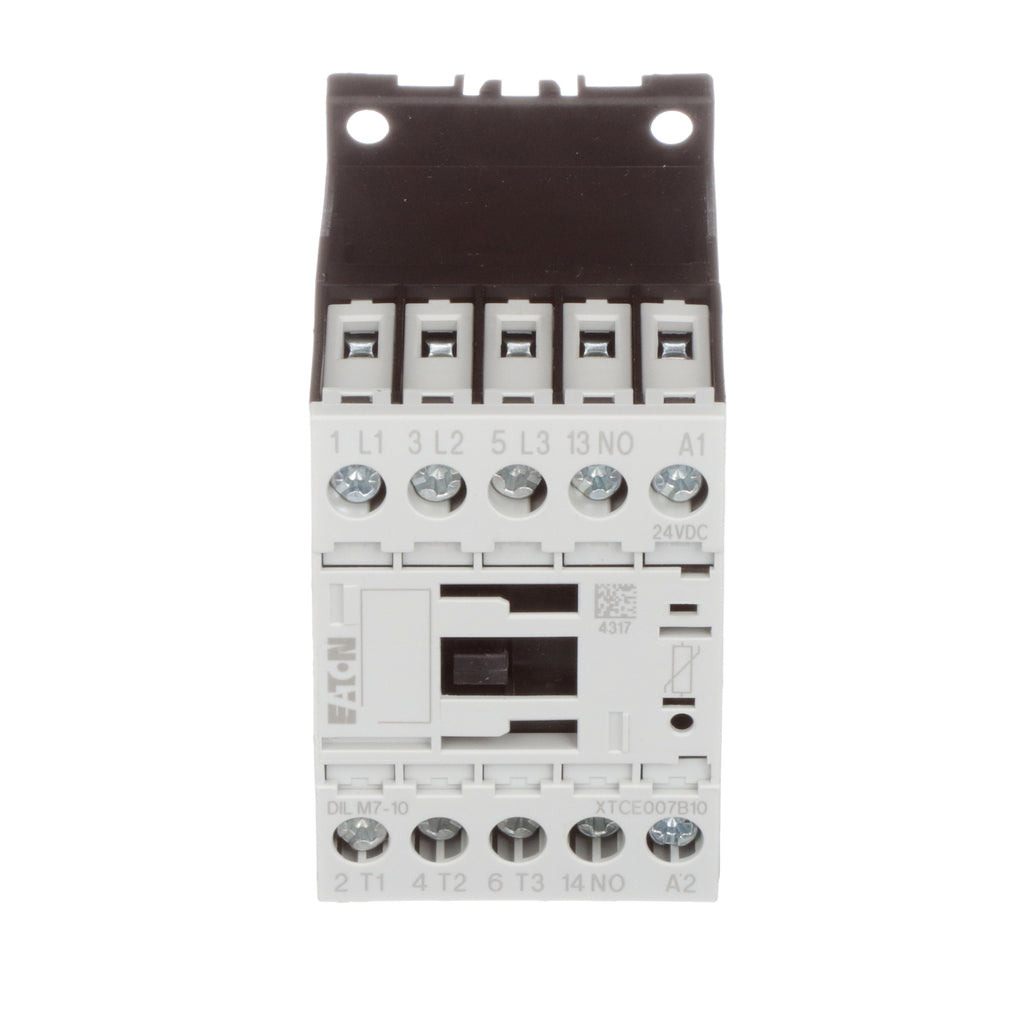

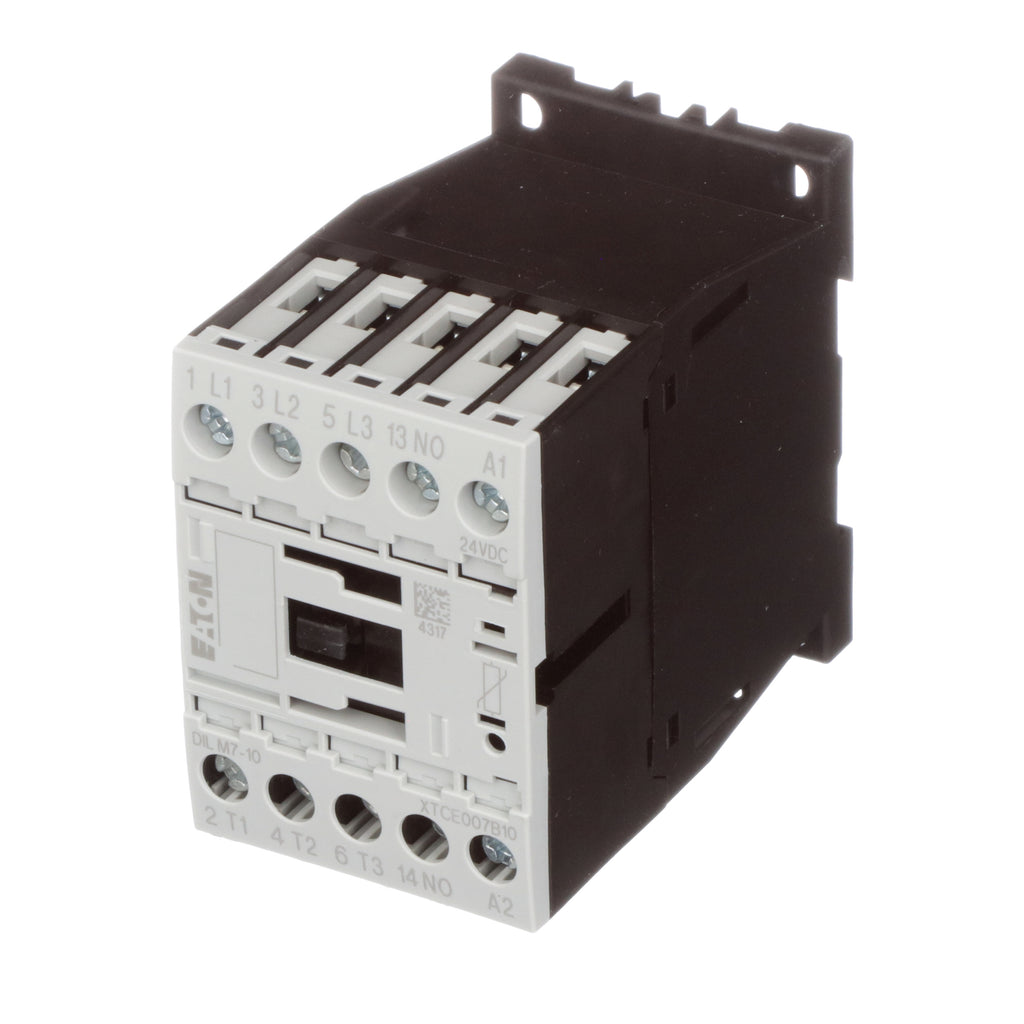

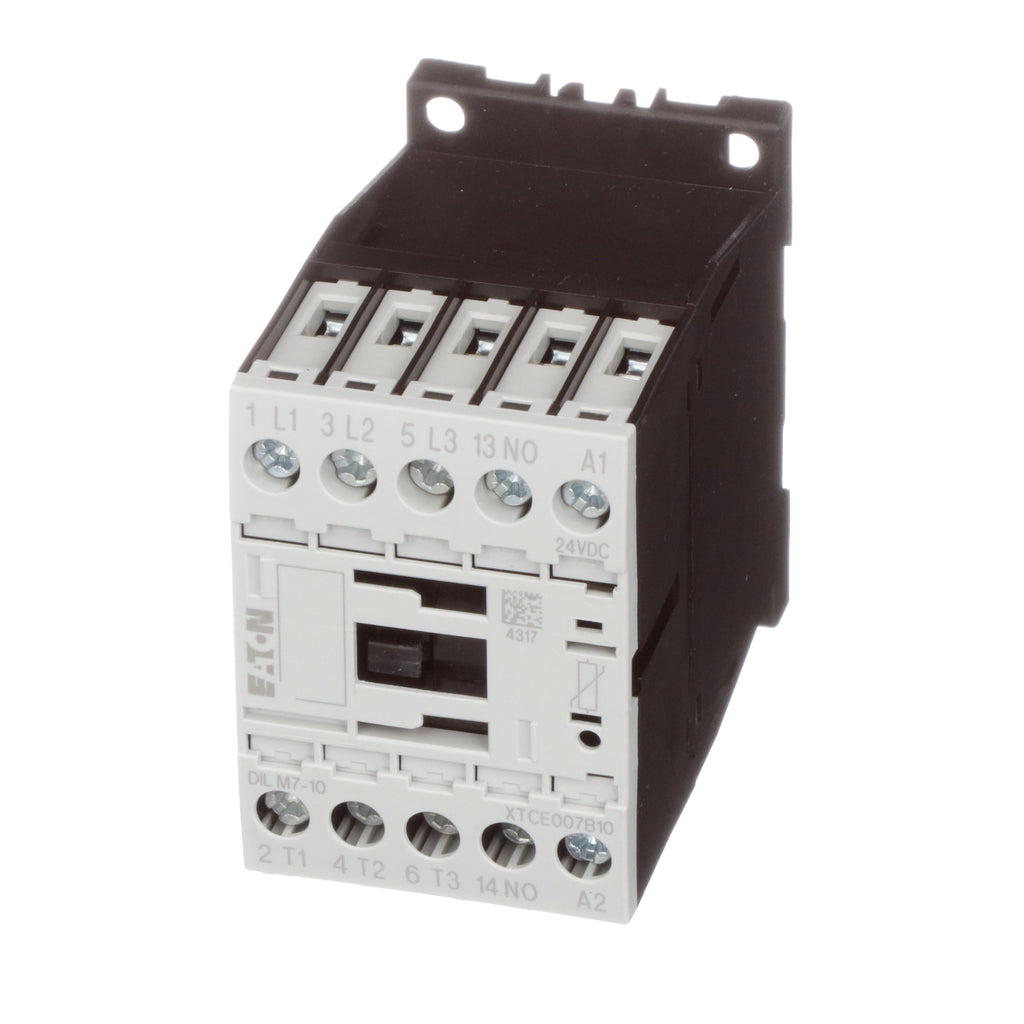

XTCE007B10TD is a 3-pole, 7 amp motor contactor from Cutler Hammer designed for IEC motor control applications with a 24 VDC coil.This Eaton Cutler Hammer XT IEC series contactor features a full voltage non-reversing operation with a 45 mm frame size. It supports motor loads up to 3 HP at 460V and 2 HP at 230V, with a 1 normally open auxiliary contact. The device offers screw terminal connections and can be mounted on panel or DIN rail. It is UL listed, CSA certified, and compliant with IEC 60947 standards.

• Amperage Rating: 7 A
• Coil Voltage: 24 VDC
• Number of Poles: 3
• Frame Size: 45 mm (Frame B)
• Contact Configuration: 1 Normally Open (NO) auxiliary contact
• Horsepower Rating: 2 HP @ 230V, 3 HP @ 460V
• Mounting Type: Panel or DIN rail
• Standards: UL Listed, CSA Certified, IEC 60947 Compliant
• Operation: Full voltage non-reversing
• Terminals: Screw type
• Dimensions: 3 in x 2 in x 3 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 24 VDC coil.

Specifications

• Part Number: XTCE007B10TD
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Voltage : 600
• Amperage : 7
• Phase : 3
• Poles : 3
• Configuration : Non-Reversing
• Aux Contacts : 1 NO
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24
• Compatible Frames : PDG,PDG Frame 4

Product Data

• UPC : 4015082765651
• GTIN : 04015082765651
• Country of Origin : Romania
• Dimensions : 3 in x 2 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
