XTCE007B01TD - Cutler Hammer 3-Pole 7A 24VDC IEC Contactor, Frame B, 1NC Auxiliary, DIN Rail/Screw Mount, UL/CSA Certified

Save $84.42
SKU: XTCE007B01TD-New
Condition: New
Price:
$106.58 $191.00
Stock:
10 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

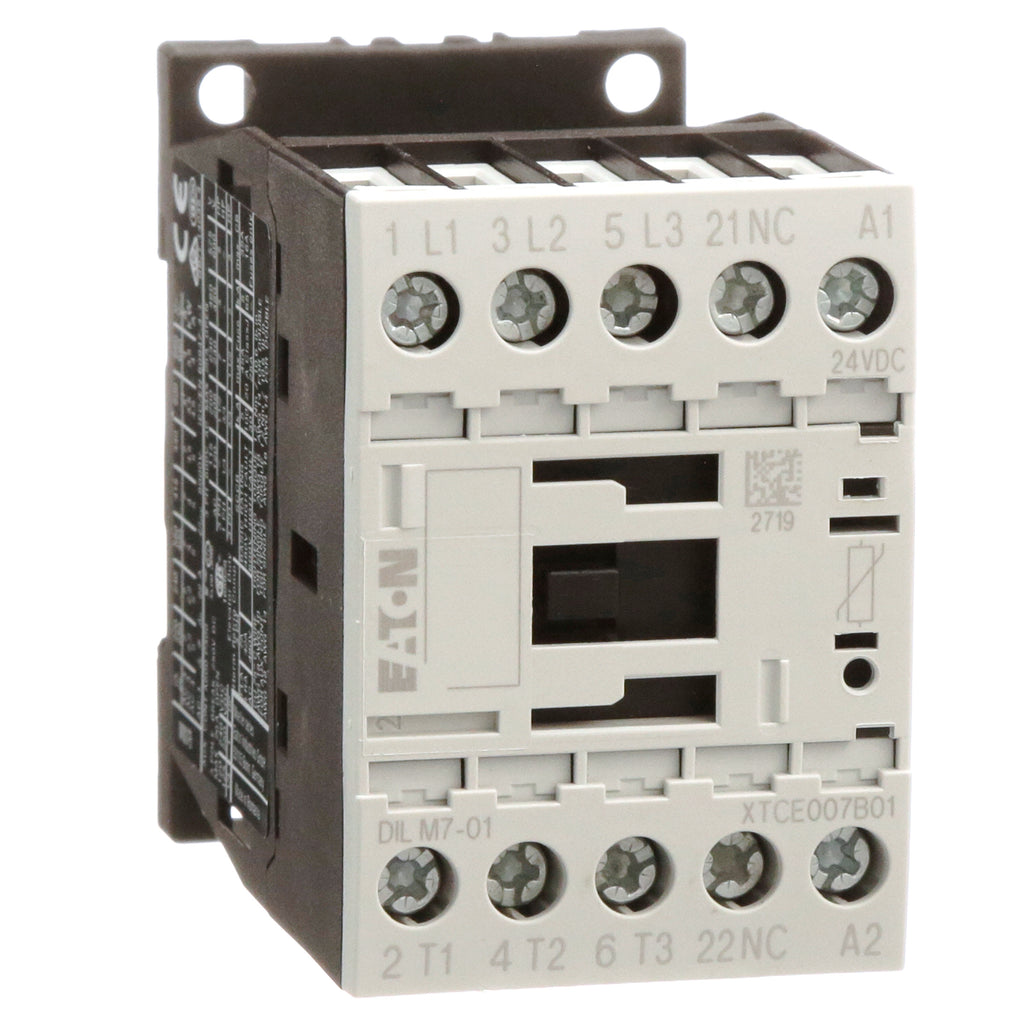

XTCE007B01TD Cutler Hammer XT Series Contactor 3 pole 3 phase 600V 7A 24V coil - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
XTCE007B01TD Cutler Hammer XT Series Contactor 3 pole 3 phase 600V 7A 24V coil - Essential Electric Supply

Description

XTCE007B01TD


XTCE007B01TD is a Cutler Hammer (Eaton) 3-pole IEC contactor designed for reliable motor control in industrial applications.

This full voltage non-reversing contactor features a 24VDC coil, screw terminals, and a compact 45mm Frame B design. It is rated for 7A continuous current and supports a range of motor horsepower ratings, including 2 HP at 230V and 3 HP at 460V. The unit includes one normally closed (1NC) base-mounted auxiliary contact and is compatible with XTOB overload relays for complete motor protection. It can be mounted on standard 35mm DIN rail or via screw, offering flexible installation options. The XTCE007B01TD is a direct replacement for Moeller DILM7-01 contactors, with fully interchangeable parts and accessories.

    Key Specifications
  • Amperage: 7A continuous (AC-3), 20A (AC-1)
  • Voltage: 24VDC coil; line voltage ratings up to 575V
  • Poles: 3-pole
  • Mounting Type: DIN rail or screw
  • Interrupt Rating: Not specified in available data
  • Series/Frame: XT IEC Series, Frame B (45mm)
  • Trip Unit: Not integrated (compatible with XTOB overload relays)
  • Certifications: UL Listed, CSA Certified
  • Auxiliary Contacts: 1 normally closed (1NC) base-mounted
  • Terminals: Screw type
  • Horsepower: 2 HP at 230V, 3 HP at 460V (see full chart for other voltages)
  • Operation: Non-reversing

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This IEC Non-Reversing Contactor includes a 24 VDC coil.


Specifications

  • Part Number: XTCE007B01TD
  • Manufacturer : Cutler Hammer
  • Brand : Cutler Hammer
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : XT Series
  • Type : XTCE007B
  • Voltage : 600
  • Amperage : 7
  • Phase : 3
  • Poles : 3
  • Horse Power : HP @ 3 Phase - 208V 1 1/2 hp HP @ 3 Phase - 240V 2 hp HP @ 3 Phase - 480V 3 hp
  • Configuration : Non-Reversing
  • Aux Contacts : 1 NC
  • Coil Voltage Maximum : 24
  • Coil Voltage Minimum : 24
  • Compatible Frames : PDG,PDG Frame 4

Product Data

  • UPC : 01508276600
  • GTIN : 04015082766009
  • Country of Origin : Romania
  • Dimensions : 1.77 in x 1.77 in
  • Weight : 1
  • Certification : CSA, UL Listed
