Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description
XTCE007B01B

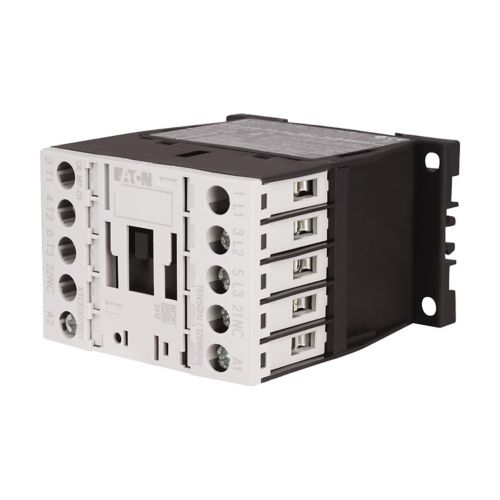

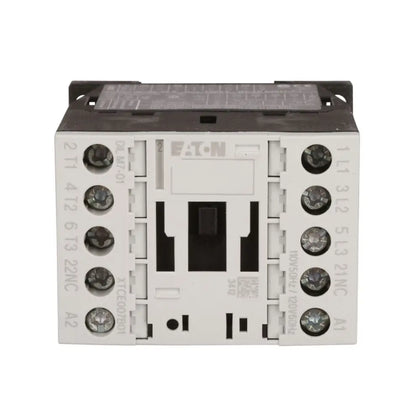

XTCE007B01B is a 7 amp, 220-240 volt AC, 3-pole IEC motor contactor from Cutler Hammer designed for reliable motor control applications.This contactor features a 45mm frame size, full voltage non-reversing operation, and includes one normally closed (1NC) auxiliary contact. It supports screw or DIN rail mounting and operates at 50-60 Hz frequency. Rated for 7A AC-3 and 20A AC-1, it can control motors up to 3 HP at 460V and 2 HP at 230V. The device conforms to IEC 60947 standards and is UL and CSA certified for safety and performance.
- Key Specifications
- Amperage: 7A AC-3, 20A AC-1
- Voltage: 220-240 VAC, 50-60 Hz
- Poles: 3-pole
- Mounting Type: Screw or DIN rail
- Auxiliary Contact: 1 normally closed (1NC)
- Frame Size: 45 mm (Frame B)
- Trip Unit: Non-reversing full voltage contactor
- Certifications: IEC 60947, UL, CSA
- Part Number: XTCE007B01B
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : XT Series
- Voltage : 600
- Amperage : 7
- Phase : 3
- Poles : 3
- Configuration : Non-Reversing
- Aux Contacts : 1 NC
- Coil Voltage Maximum : 240
- Coil Voltage Minimum : 240
- Compatible Frames : PDG,PDG Frame 4
- Frequency : 50 Hz
- UPC : 786679603499
- GTIN : 04015080000000
- Country of Origin : Romania
- Dimensions : 1.81 in x 3.07 in x 2.76 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
Additional Information
This IEC Non-Reversing Contactor includes a 220 VAC coil.
