Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT5NU330ABYN000XXX

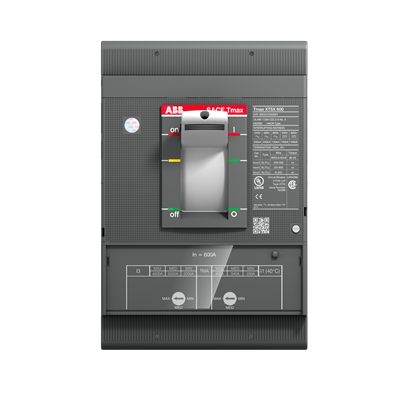

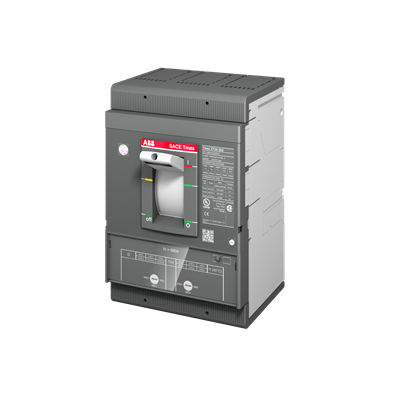

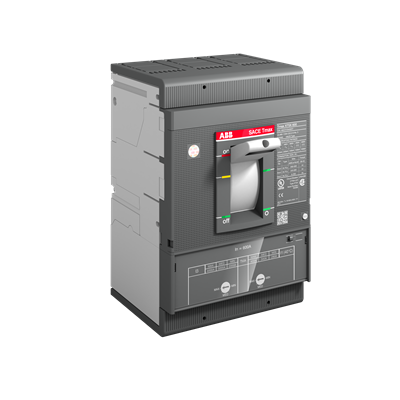

XT5NU330ABYN000XXX is a 3-pole thermal magnetic molded case circuit breaker from ABB with a 300 Amp rating and 600 VAC voltage capacity.This ABB XT5N frame breaker features a thermal magnetic (TMA) trip unit, 25kA interrupt rating at 480V, and front flat terminals for easy installation. It is designed for reliable protection in power distribution and motor control applications.
- Amperage: 300 Amps
- Voltage: 600 VAC
- Poles: 3
- Frame Type: XT5N
- Trip Unit: Thermal Magnetic (TMA)
- Interrupt Rating: 25kA at 480V
- Mounting Type: Molded Case
- Terminal Type: Front Flat Terminals
- Application: Power Distribution and Motor Control
- Certifications: UL Listed, CSA Certified (typical for ABB breakers)
Specifications
- Part Number: XT5NU330ABYN000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT5NU
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
Product Data
- UPC : 8056221790840
- Country of Origin : United States
- Weight : 20 lb
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 2x 2/0 to 500KCmil, Cu/Al
