Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT5LU340ABYN000XXX

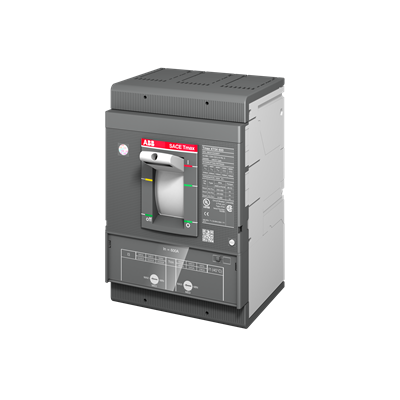

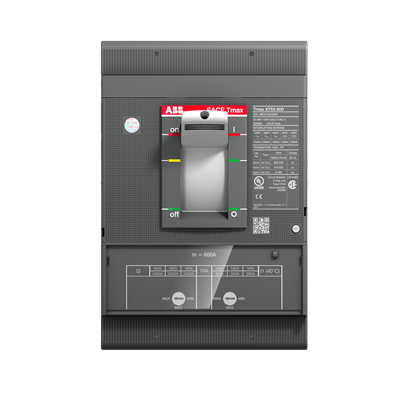

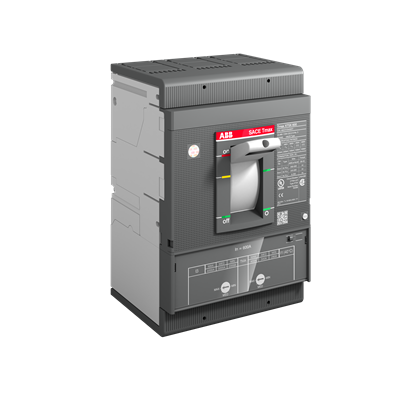

XT5LU340ABYN000XXX is a 3-pole, 400A molded case circuit breaker from ABB with Tmax XT5L frame. This ABB T-Max XT5L frame circuit breaker features thermal-magnetic trip (TMF), 100kA interrupt rating at 600VAC, and panel connect mounting for motor control and three-phase protection applications.
- Manufacturer: ABB
- Part Number: XT5LU340ABYN000XXX
- Frame Size: XT5L
- Amperage Rating: 400A
- Voltage Rating: 600VAC
- Poles: 3
- Trip Unit: Thermal-Magnetic (TMF)
- Interrupt Rating: 100kA
- Mounting Type: Panel Connect (Plug-in)
- Voltage Type: AC
Specifications
- Part Number: XT5LU340ABYN000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT5LU
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
Product Data
- Country of Origin : United States
- Weight : 20
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : 2x AWG 2/0 to 500KCmil, Cu/Al
