Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT5HU340AFYN000XXX

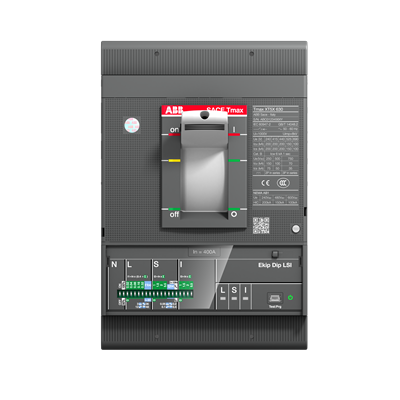

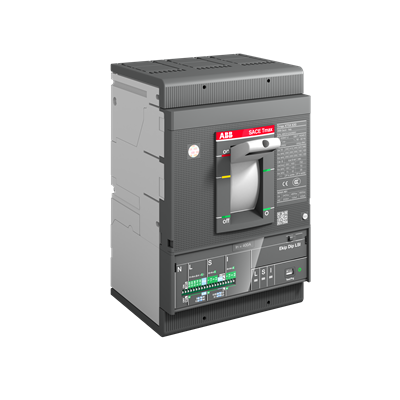

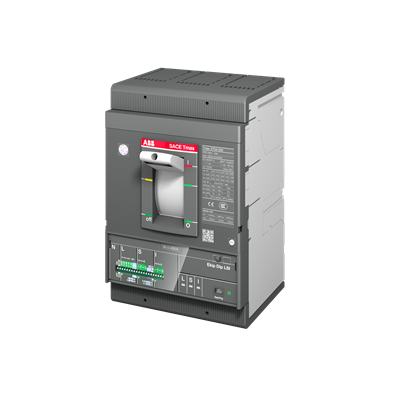

XT5HU340AFYN000XXX is an ABB SACE Tmax XT molded case circuit breaker rated at 400A, 3 poles, and 600V.This XT5H frame breaker features Ekip Dip LSI trip unit with In400 setting, fixed front connection, and H interruption rating of 65kA at 480VAC for reliable overcurrent protection in AC and DC applications.
- Manufacturer: ABB
- Part Number: XT5HU340AFYN000XXX
- Frame Size: XT5H
- Rated Current: 400A
- Poles: 3
- Voltage Rating: 600V AC/DC
- Interruption Rating: 65kA at 480VAC (H)
- Trip Unit: Ekip Dip LSI In400
- Connection: Fixed Front (FF)
- Standards: UL/CSA
Specifications
- Part Number: XT5HU340AFYN000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT5HU
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
Product Data
- Country of Origin : United States
- Weight : 12
- Standards : UL, CSA
- Certification : UL, CSA
