2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description

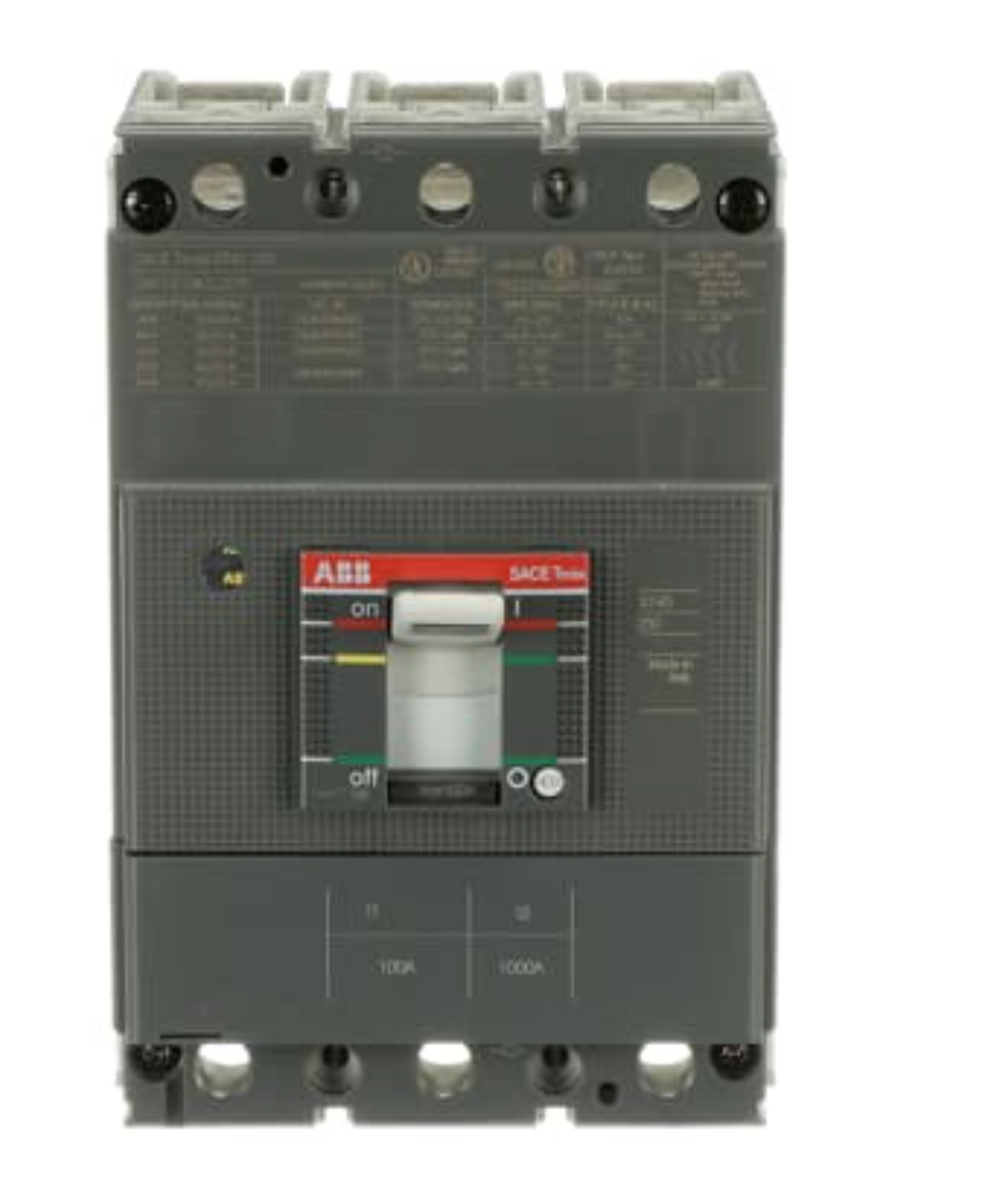

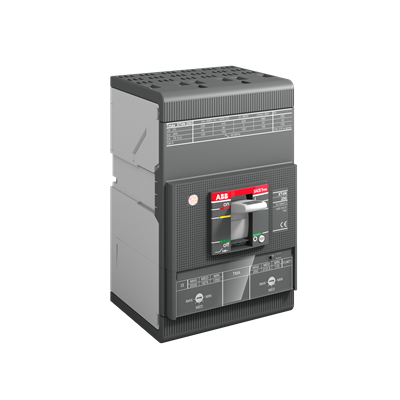

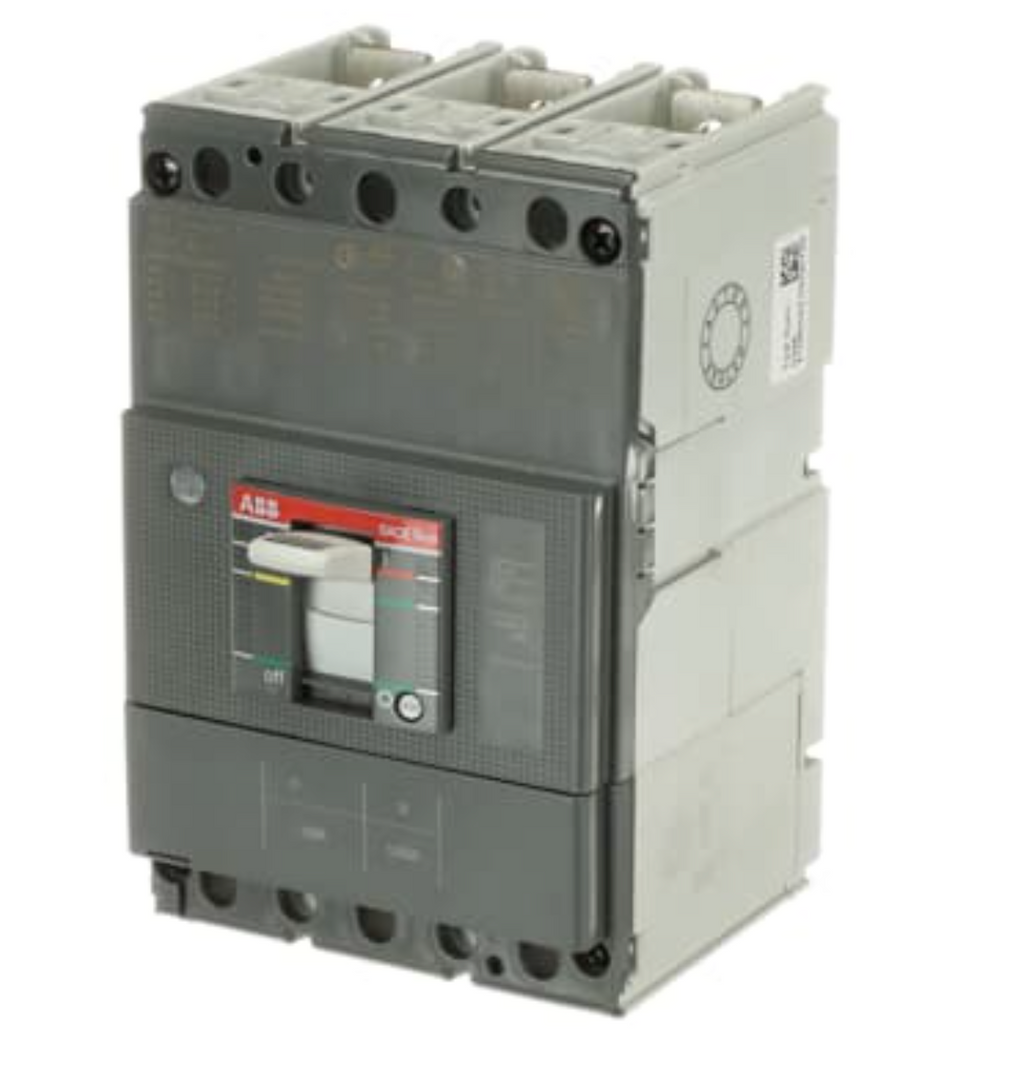

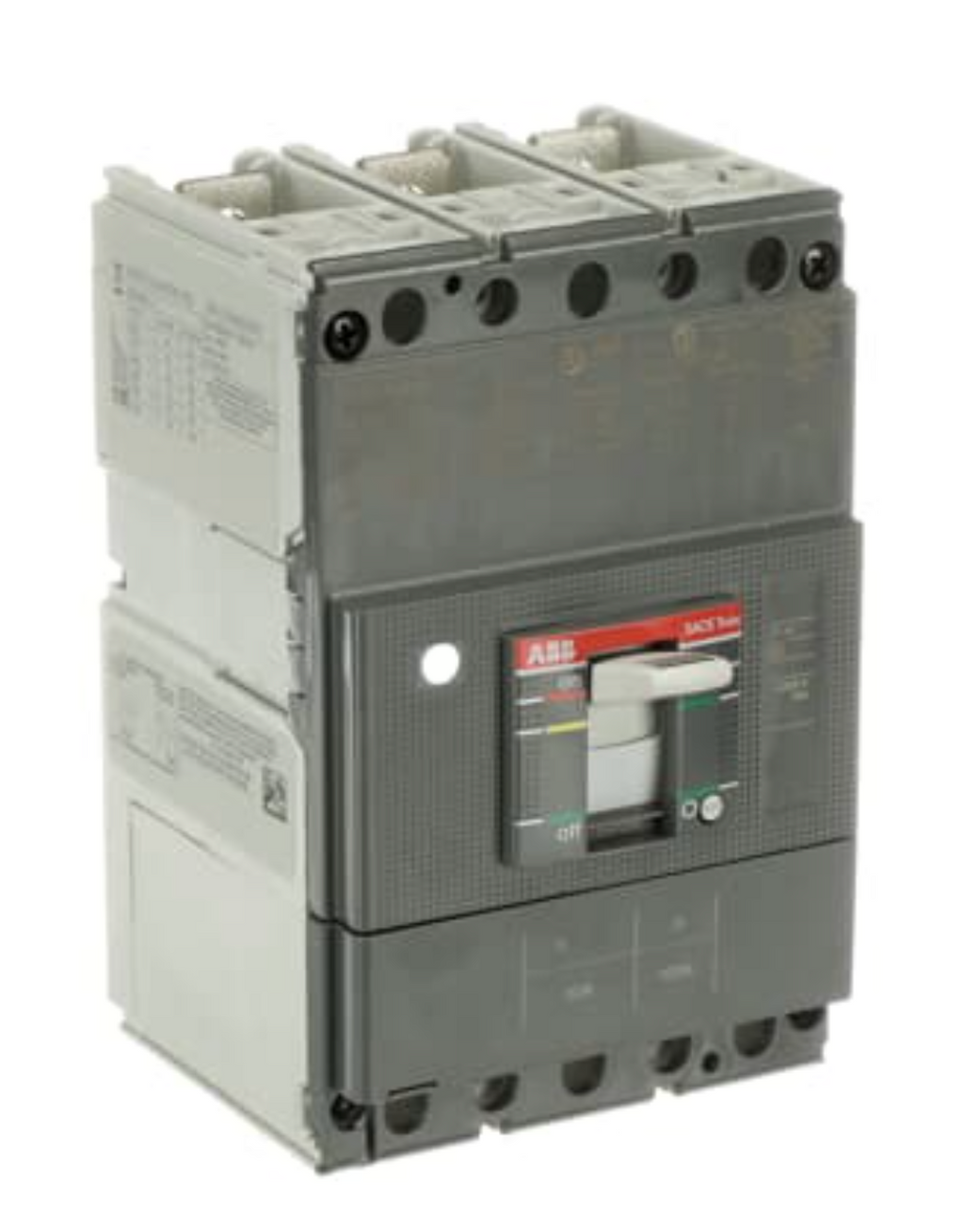

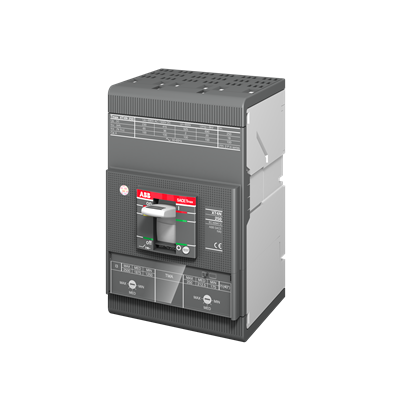

XT4SU3225AY8000XXX
XT4SU3225AY8000XXX is a 225 ampere, 600 volt, 3-pole molded case circuit breaker from ABB's Tmax XT4S series with an electronic trip unit.This ABB circuit breaker features a robust XT4S 250A frame designed for low voltage applications up to 600 VAC. It includes electronic trip protection with a trip range from 225 to 2250 amps, suitable for precise and reliable circuit protection. The breaker supports front line/load side connections and is double insulated for enhanced safety. It is rated for operation in ambient temperatures from -13 to 158 degrees Fahrenheit and is designed for use in three-phase systems.
- Key Specifications
- Amperage Rating: 225 A
- Voltage Rating: 600 V AC
- Number of Poles: 3
- Frame: XT4S 250A
- Trip Type: Electronic
- Trip Range: 225 to 2250 A
- Connection Type: Front Line/Load Side
- Insulation Type: Double Insulated
- Frequency Rating: 50/60 Hz
- Temperature Rating: -13 to 158 °F
- Series: Tmax XT4S
- Interrupt Rating: 22 kA
Specifications
- Part Number: XT4SU3225AY8000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT4SU
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
Product Data
- UPC : 57558696933
- Country of Origin : United States
- Weight : 85
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 3/0 to 350KCmil, Cu/Al
