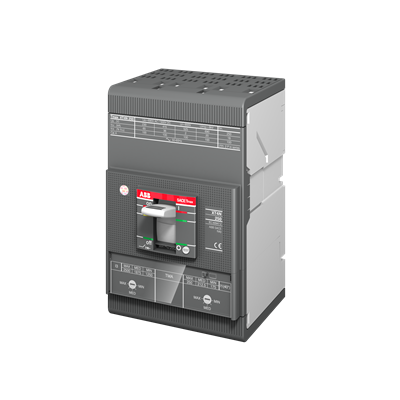

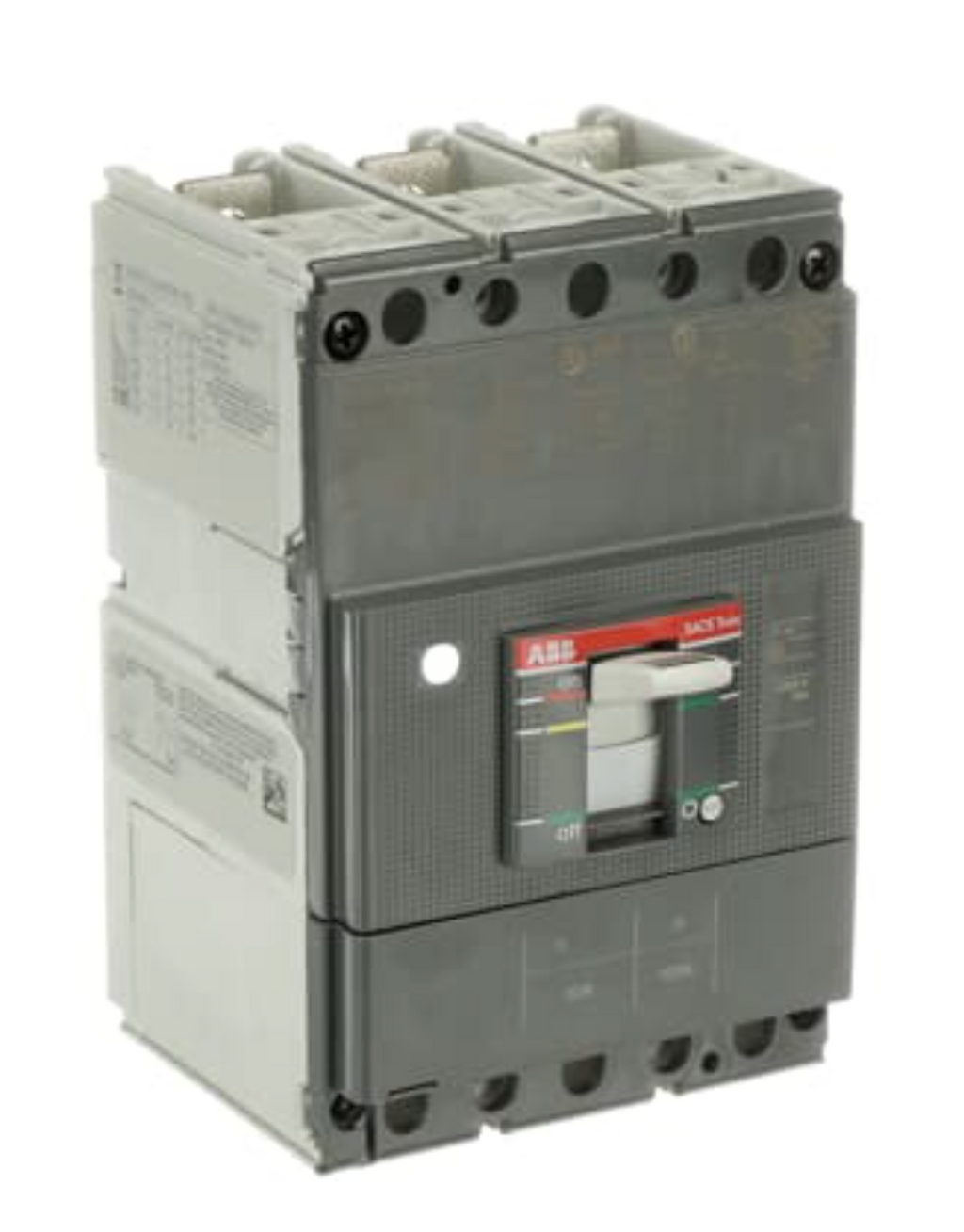

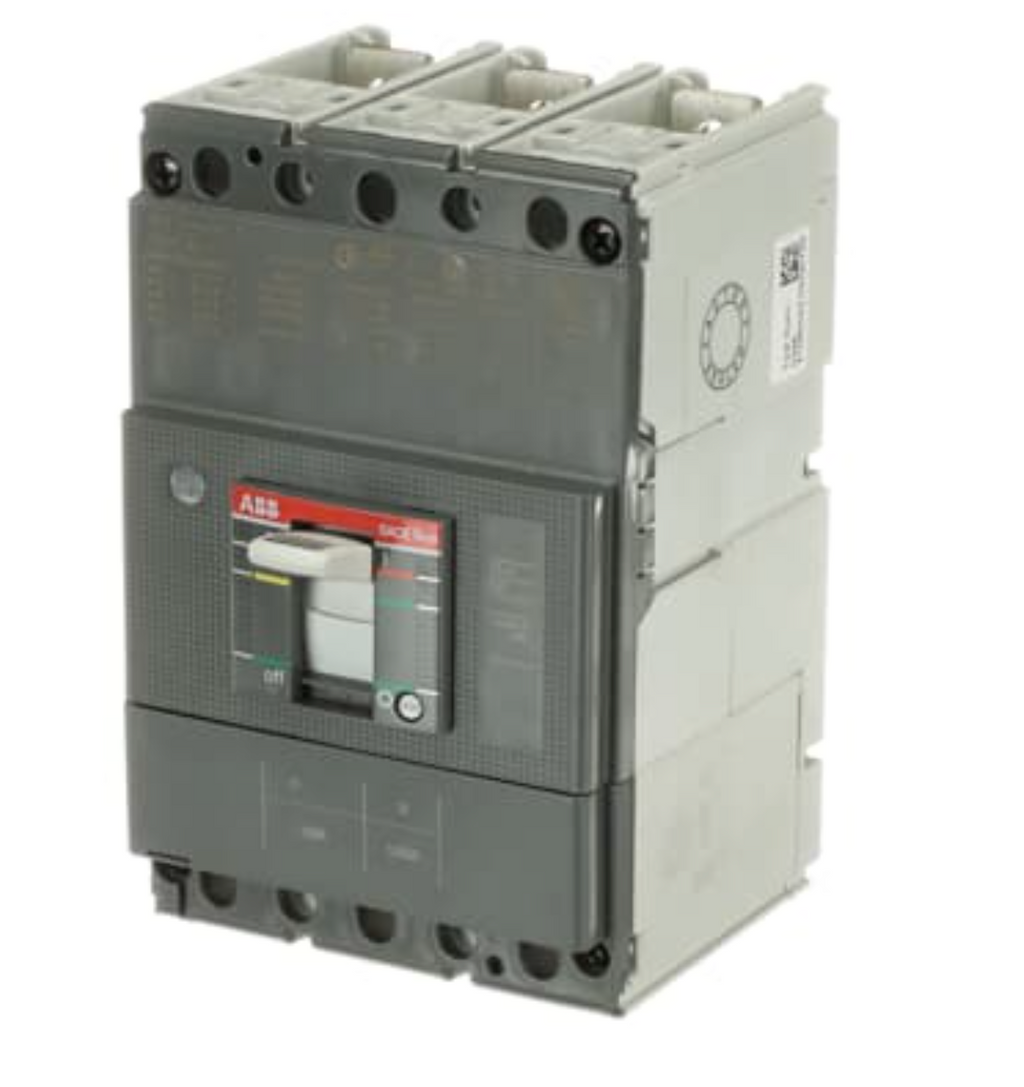

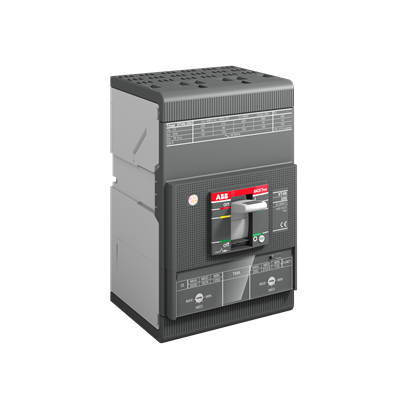

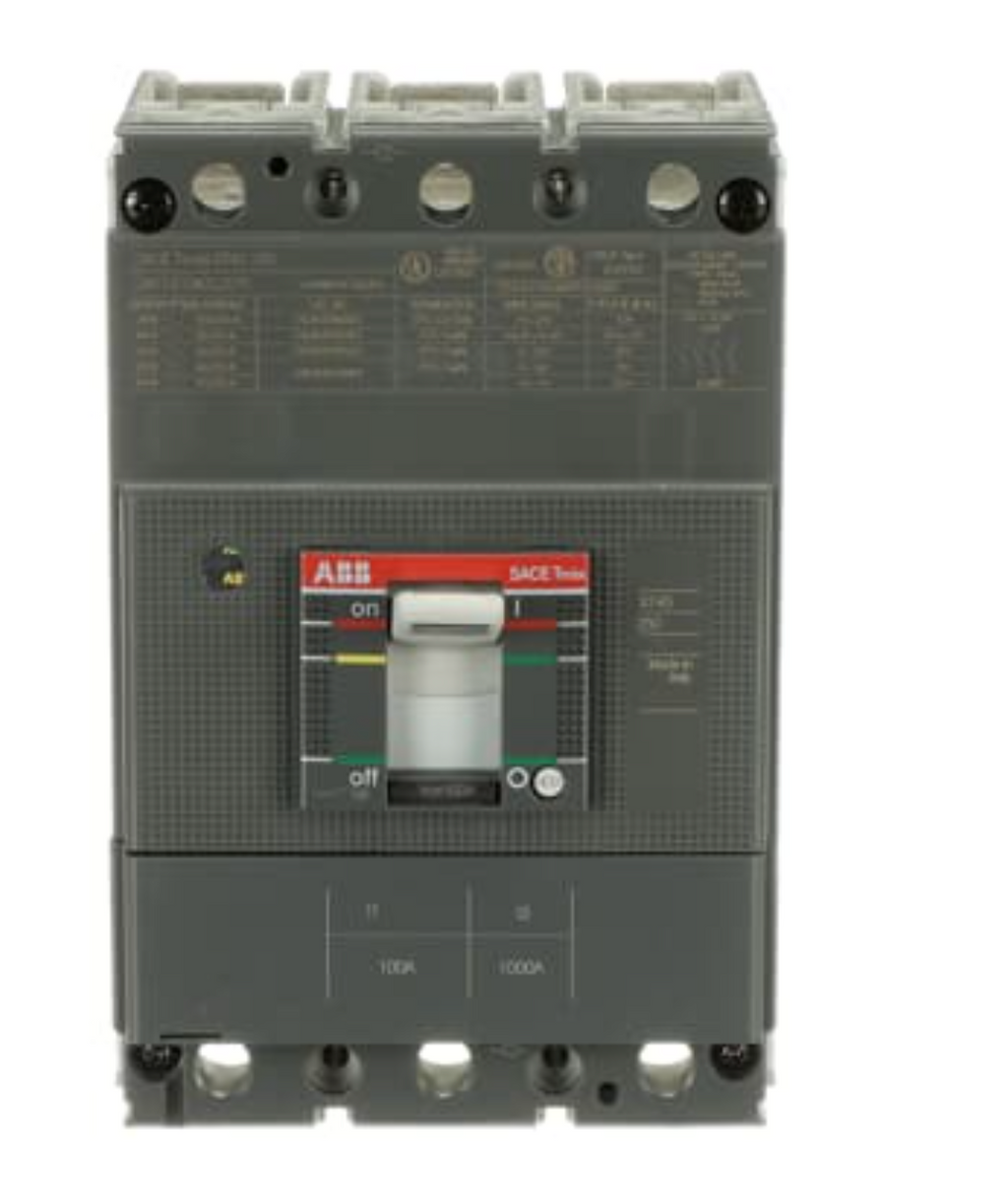

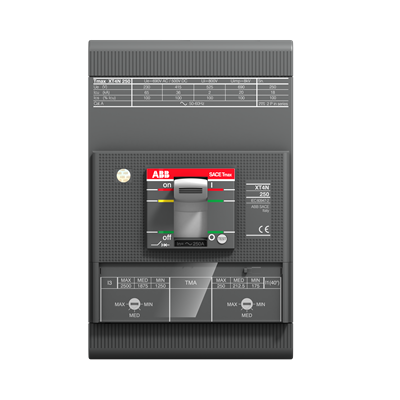

XT4SU3200AY8000XXX - ABB 3-Pole 3200A Molded Case Circuit Breaker Tmax Frame

XT4SU3200AY8000XXX

XT4SU3200AY8000XXX is a high-capacity 3-pole molded case circuit breaker from ABB's Tmax series designed for industrial power distribution applications.This circuit breaker features a 3200 ampere rating with a robust Tmax frame, suitable for high voltage and current protection in commercial and industrial electrical systems. It includes a thermal-magnetic trip unit for reliable overload and short circuit protection. The breaker is UL 489 and IEC 60947-2 certified, ensuring compliance with international safety standards. It is designed for bolt-on mounting and offers a high interrupt rating to safely clear fault currents.

Key Specifications
• Manufacturer: ABB
• Part Number: XT4SU3200AY8000XXX
• Amperage: 3200 A
• Poles: 3
• Mounting Type: Bolt-on
• Interrupt Rating: High (typically 65 kA or greater, per Tmax frame standards)
• Series/Frame: Tmax
• Trip Unit: Thermal-Magnetic
• Certifications: UL 489, IEC 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XT4SU3200AY8000XXX
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : SACE Tmax XT
• Type : XT4SU
• Voltage : 600VAC
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 35kAIC
• Connection : Bolt-On

Product Data

• Country of Origin : United States
• Weight : 85
• Standards : UL, CSA
• Certification : UL, CSA
• Wire Size : AWG 3/0 to 350KCmil, Cu/Al
