Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT4SU3175AY8000XXX

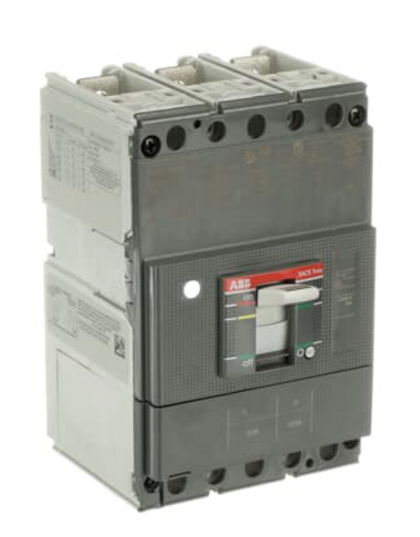

XT4SU3175AY8000XXX is a 175 Amp, 600 Volt, 3-pole molded case circuit breaker from ABB's XT4S series designed for low voltage power distribution.This ABB circuit breaker features a 3-pole configuration with a 175A current rating, 600 VAC voltage rating, and XT4S frame type. It includes an electronic trip unit with a trip range suitable for 175 to 1750 Amps, a 22 kA interrupt rating, and front line/load side connections. The breaker is double insulated and rated for operation in temperatures from -13 to 158 degrees Fahrenheit.
- Key Specifications
- Amperage: 175 A
- Voltage: 600 VAC
- Number of Poles: 3
- Frame Type: XT4S
- Interrupt Rating: 22 kA
- Trip Unit: Electronic
- Connection Type: Front Line/Load Side
- Insulation: Double Insulated
- Operating Temperature: -13 to 158 °F
- Series: Tmax XT
- Frequency: 50/60 Hz
- Country of Origin: Italy
Specifications
- Part Number: XT4SU3175AY8000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT4SU
- Voltage : 600
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
Product Data
- Country of Origin : United States
- Weight : 8
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 3/0 to 350KCmil, Cu/Al
