Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT4SU3100FYJ000XXX

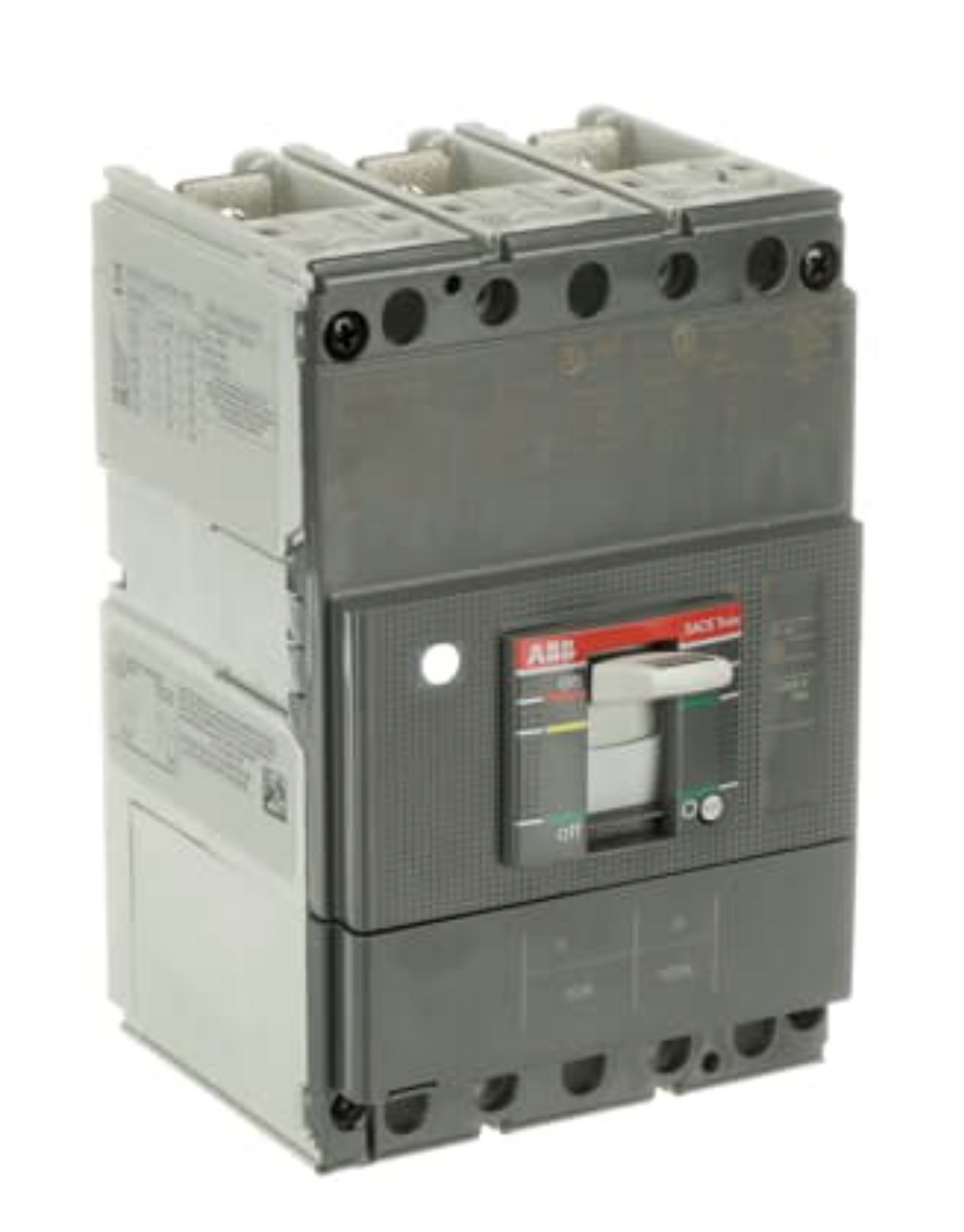

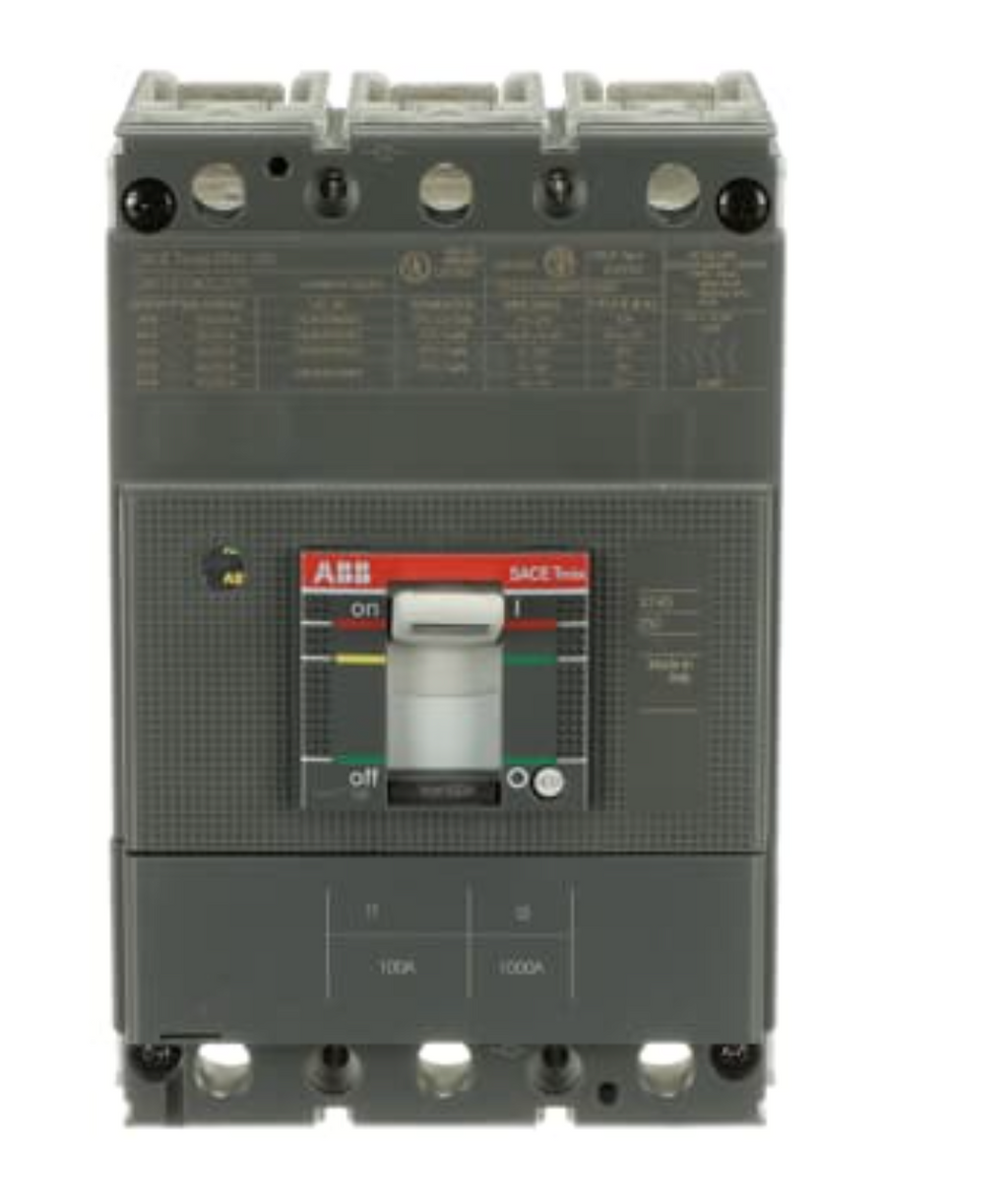

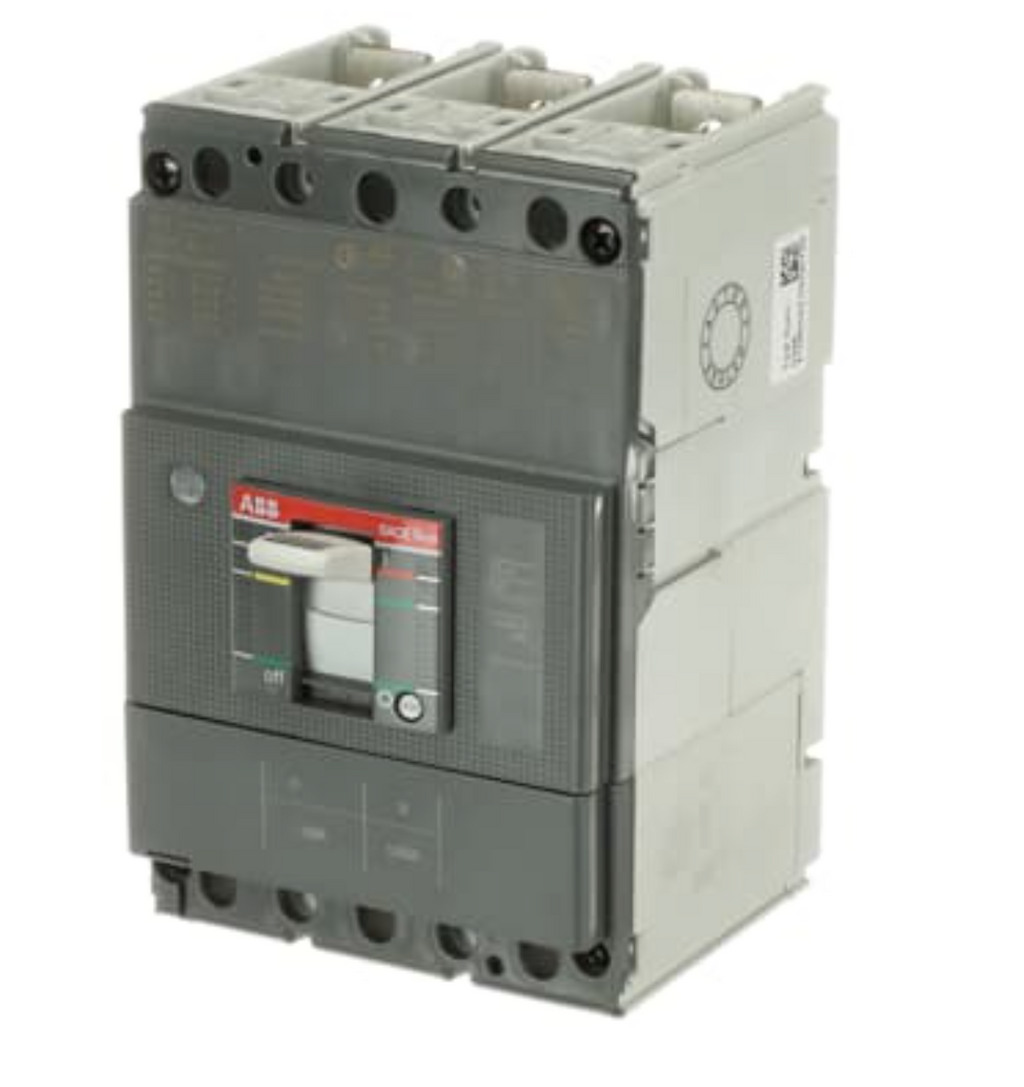

XT4SU3100FYJ000XXX is a 3-pole molded case circuit breaker from ABB designed for 100 Amp current rating and 600VAC voltage rating applications.This ABB circuit breaker features the XT4 frame type, suitable for industrial and commercial power distribution. It provides reliable protection with a 35kA interrupting rating at 600VAC and includes a trip unit for precise circuit control. The breaker supports front flat terminals and is UL/CSA certified for safety and performance.
- Amperage: 100 Amps
- Voltage: 600 VAC
- Poles: 3
- Frame Type: XT4
- Interrupt Rating: 35kA at 600VAC
- Mounting Type: Molded Case
- Trip Unit: EK/DIP LSI (Long-time, Short-time, Instantaneous)
- Terminals: Front Flat
- Certifications: UL, CSA
- Application: Motor Control and Power Distribution
Specifications
- Part Number: XT4SU3100FYJ000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT4SU
- Voltage : 600
- Amperage : 100
- Phase : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LSI - Long Time, Short Time and Instantaneous Trip
Product Data
- Country of Origin : United States
- Weight : 8
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 4 to AWG 300, Cu/Al
