Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT4NU3250FFL000XXX

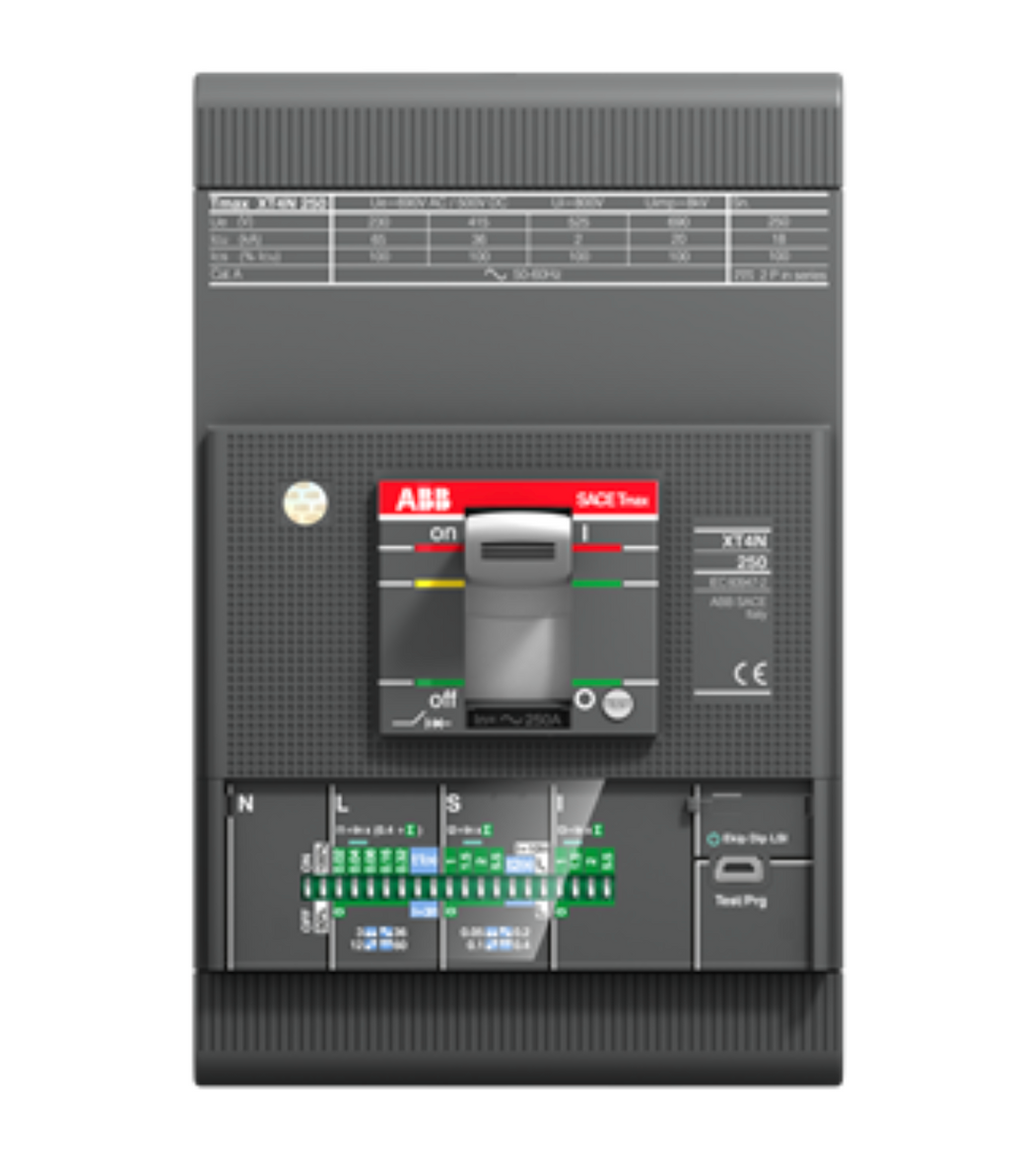

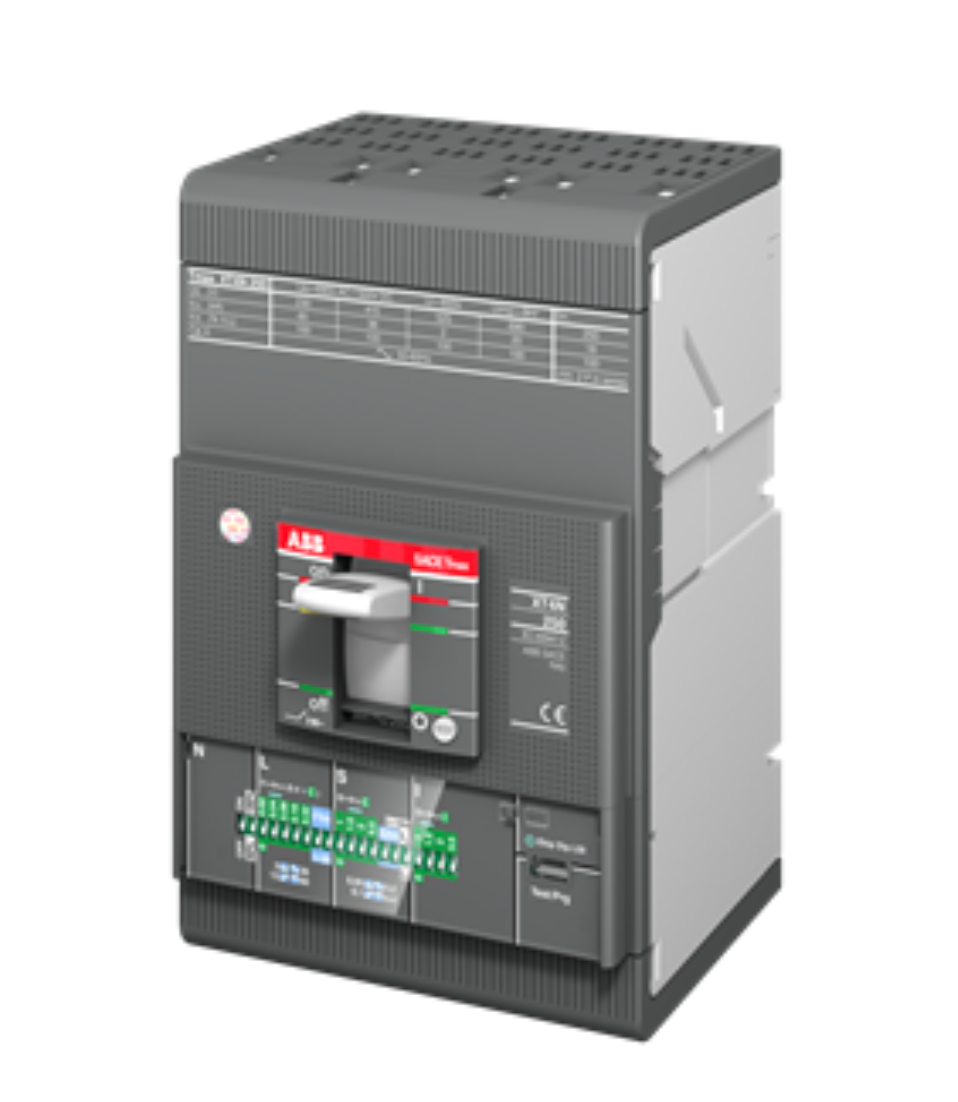

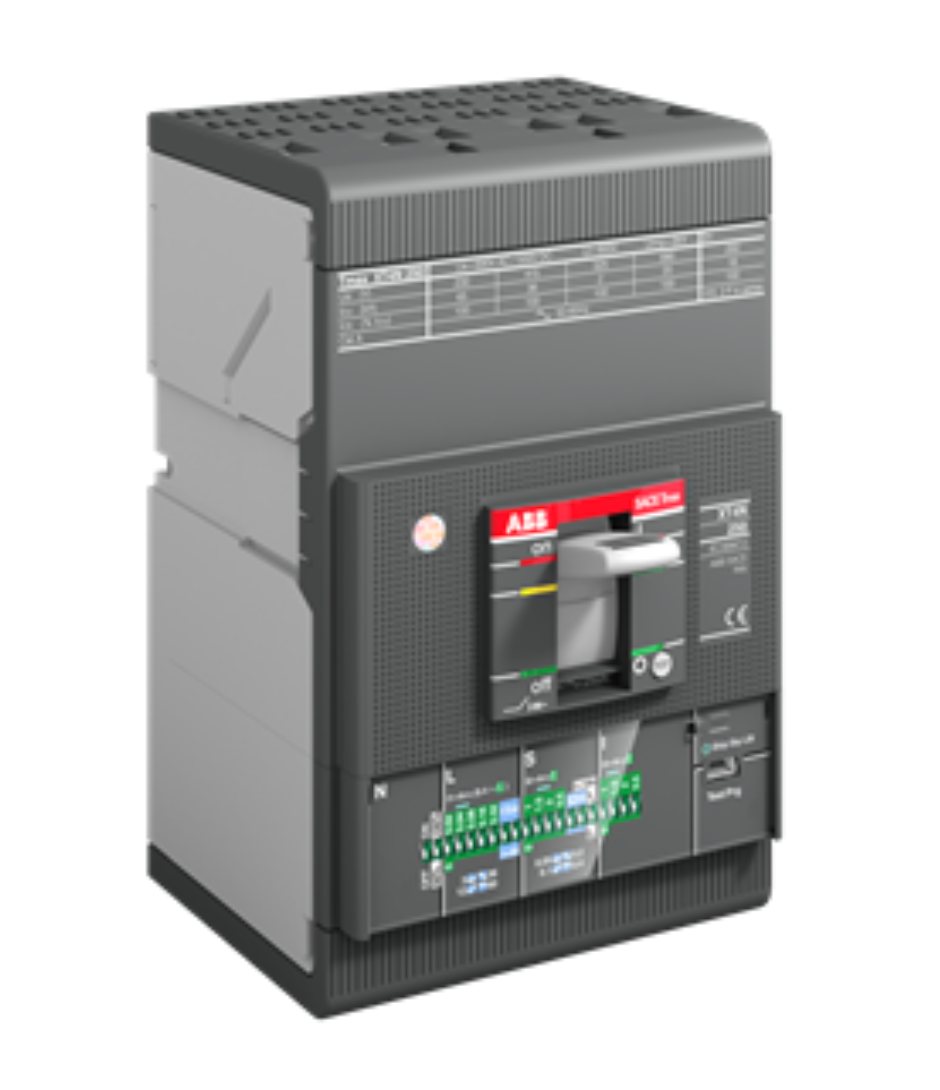

XT4NU3250FFL000XXX is an ABB Tmax XT series molded case circuit breaker with 250A rating, 3 poles, and electronic trip unit.This XT4 frame breaker provides thermal-magnetic and electronic protection for low voltage applications up to 600V AC, featuring front terminals without lugs on line and load sides, double insulated design, and high interrupting capacity suitable for main and sub-switchboards.
- Part Number: XT4NU3250FFL000XXX
- Manufacturer: ABB
- Frame Size: XT4 250A
- Amperage Rating: 250 A
- Number of Poles: 3
- Series: Tmax XT
- Trip Type: Electronic
- Voltage Rating: 600 VAC
- Frequency: 50/60 Hz
- Interrupt Rating: Up to 25 kA
- Connection: Front terminals, no lugs
- Mounting: Fixed, built-in
Specifications
- Part Number: XT4NU3250FFL000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT4NU
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
Product Data
- Country of Origin : United States
- Weight : 20 lb
- Standards : UL, CSA
- Certification : UL, CSA
