XT4HU3250AFJ000XXX - ABB 250A 600V 3-Pole Molded Case Circuit Breaker XT4H Frame Bolt-On

XT4HU3250AFJ000XXX

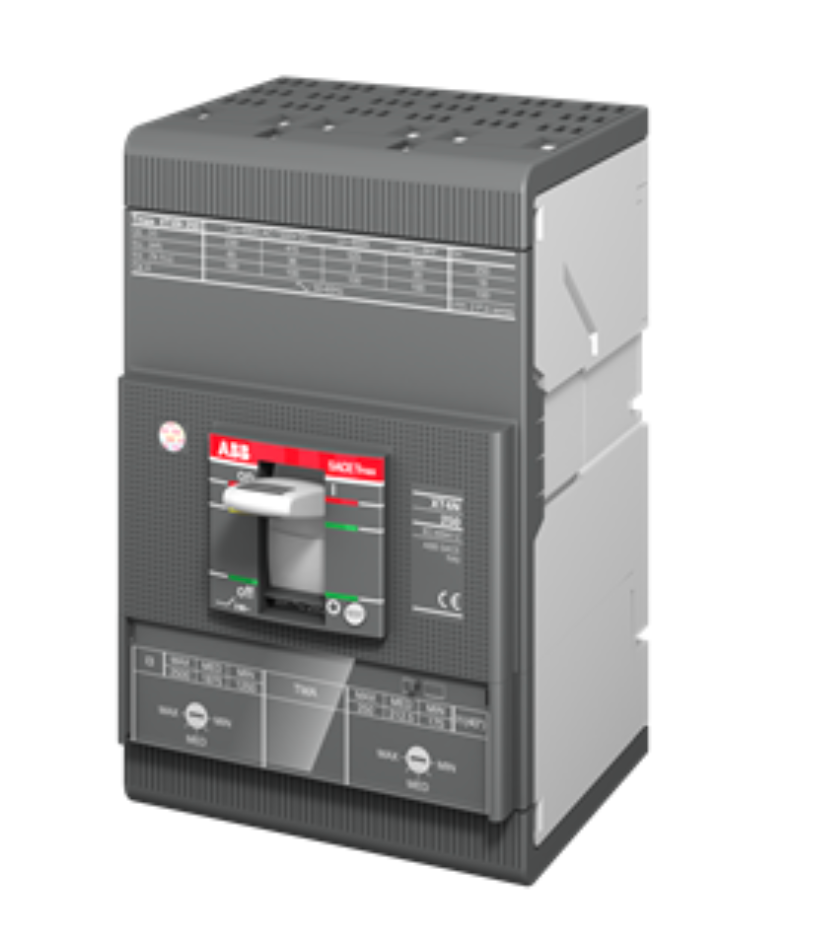

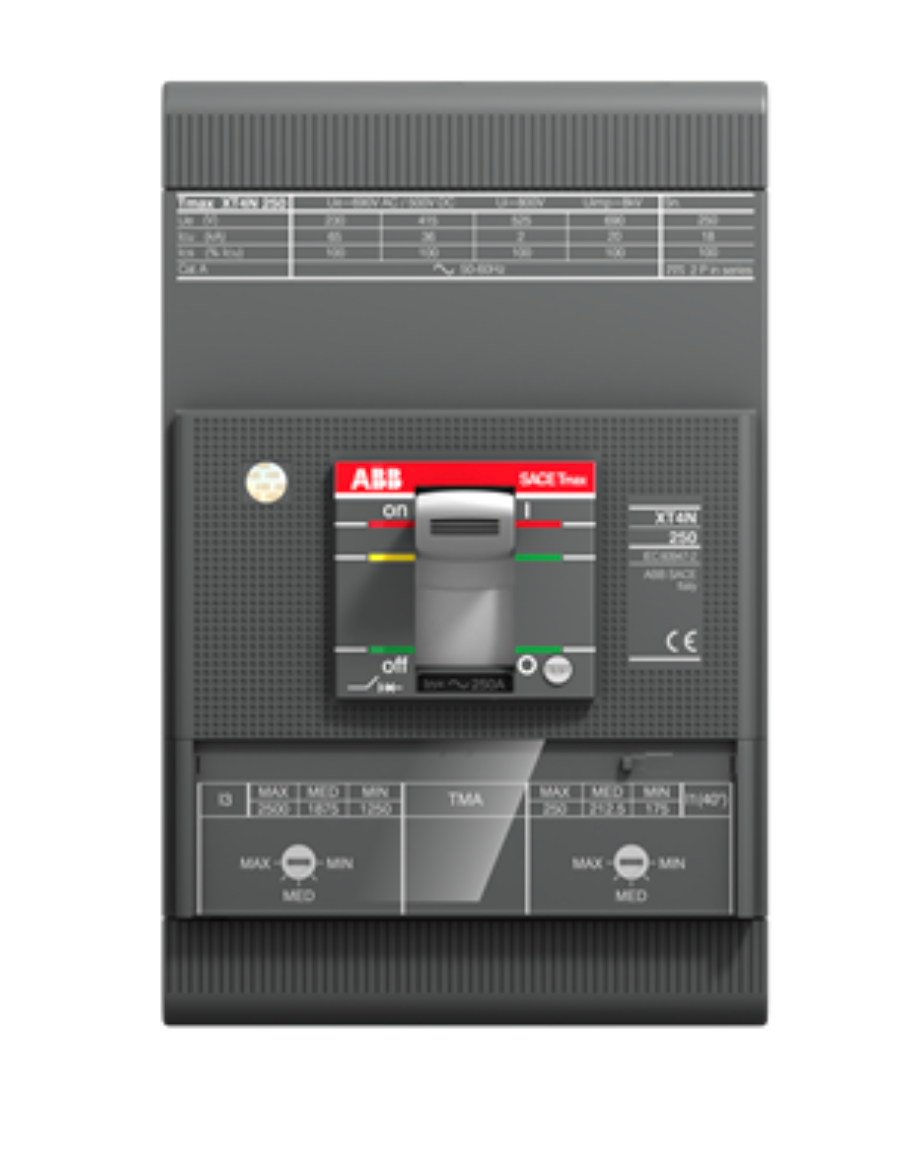

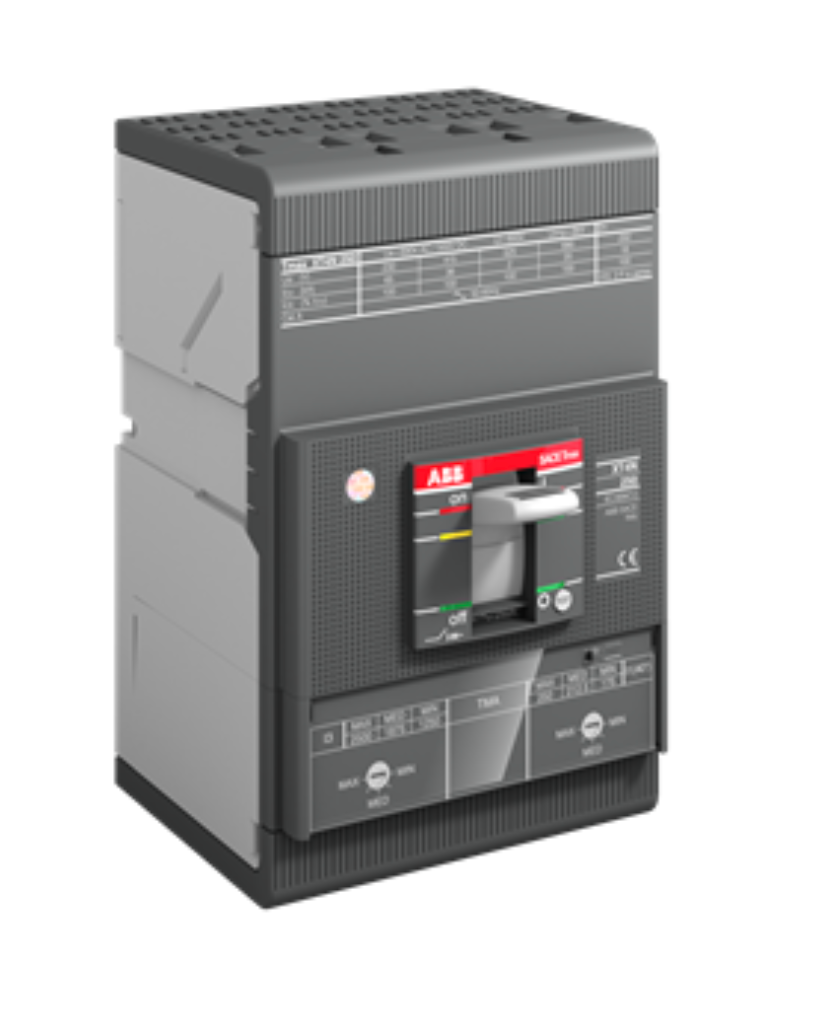

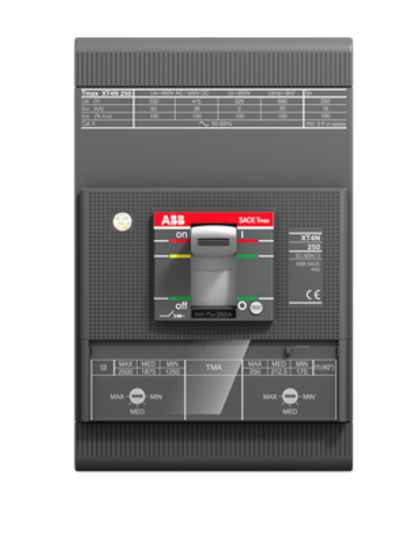

XT4HU3250AFJ000XXX is a 250 Amp, 600 Volt, 3-pole molded case circuit breaker from ABB designed for industrial power distribution applications.

This ABB circuit breaker features a bolt-on mounting type and belongs to the Tmax XT series with an XT4H frame. It offers a 25 kA interrupt rating at 600/690 VAC and an electronic trip unit with a trip range of 250 to 2500 Amps. The breaker is double insulated and rated for operation in temperatures from -13 to 158 degrees Fahrenheit. It includes front line/load side connections and is certified for low voltage use.

Key Specifications
• Amperage: 250 A
• Voltage Rating: 600/690 VAC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 25 kA
• Series/Frame: Tmax XT, XT4H Frame
• Trip Unit: Electronic, 250 to 2500 A trip range
• Insulation: Double Insulated
• Connection Type: Front Line/Load Side
• Temperature Rating: -13 to 158 °F
• Frequency: 50/60 Hz
• Country of Origin: Italy

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XT4HU3250AFJ000XXX
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : SACE Tmax XT
• Type : XT4HU
• Voltage : 600VAC
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 25kAIC at 600VAC
• Connection : Bolt-On
• Terminal Connection : Load Side Lug
• Circuit Breaker Mounting Style : Panel
• Protection : Thermal Magnetic

Product Data

• Country of Origin : United States
• Weight : 5.19
• Standards : UL, CSA
• Certification : UL, CSA
• Wire Size : AWG 4 to AWG 300, Cu/Al
