XT4HU3250AFF000XXX - ABB Tmax XT 250A 3 Pole Molded Case Circuit Breaker 600VAC 25kA Interrupt

XT4HU3250AFF000XXX

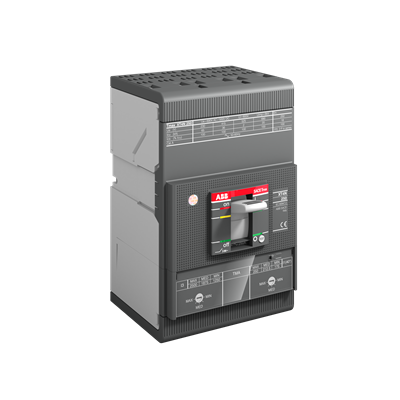

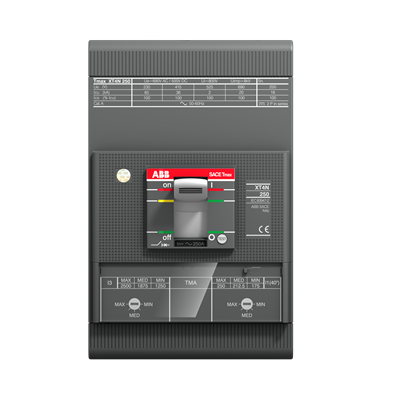

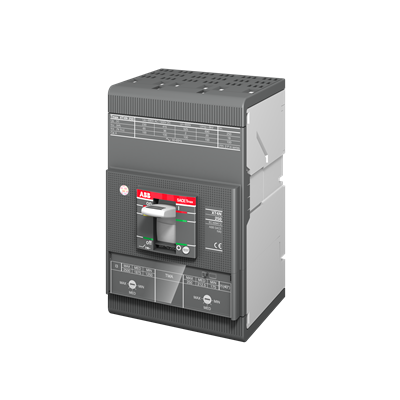

XT4HU3250AFF000XXX is a 3-pole molded case circuit breaker from ABB's Tmax XT series, rated for 250 amperes at 600/690 VAC with thermal magnetic fixed (TMF) trip protection and 25 kA interrupt rating.

This low voltage circuit breaker is designed for distribution applications from main switchboards to sub-switchboards. It features a fixed thermal magnetic trip unit with adjustable trip range of 250 to 2500 amperes, front flat terminals for line and load side connections, and double insulation. The breaker is UL and CSA certified, meeting North American standards for industrial and commercial electrical systems.

• Frame Size: XT4 - 250A
• Number of Poles: 3
• Rated Current: 250 A
• Voltage Rating: 600/690 VAC
• Frequency: 50/60 Hz
• Trip Type: Thermal Magnetic Fixed (TMF)
• Trip Range: 250 to 2500 A
• Interrupt Rating: 25 kA
• Certifications: UL, CSA
• Insulation Type: Double Insulated
• Connection Type: Front Line/Load Side
• Operating Temperature: -13 to 158 degrees F
• Dimensions: 6.3 in H x 4.13 in W x 3.25 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XT4HU3250AFF000XXX
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : SACE Tmax XT
• Type : XT4HU
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 015644866134
• Country of Origin : United States
• Dimensions : 105 mm x 160 mm
• Weight : 4
• Standards : UL, CSA
• Certification : UL, CSA
