Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT4HU3225FFF000XXX

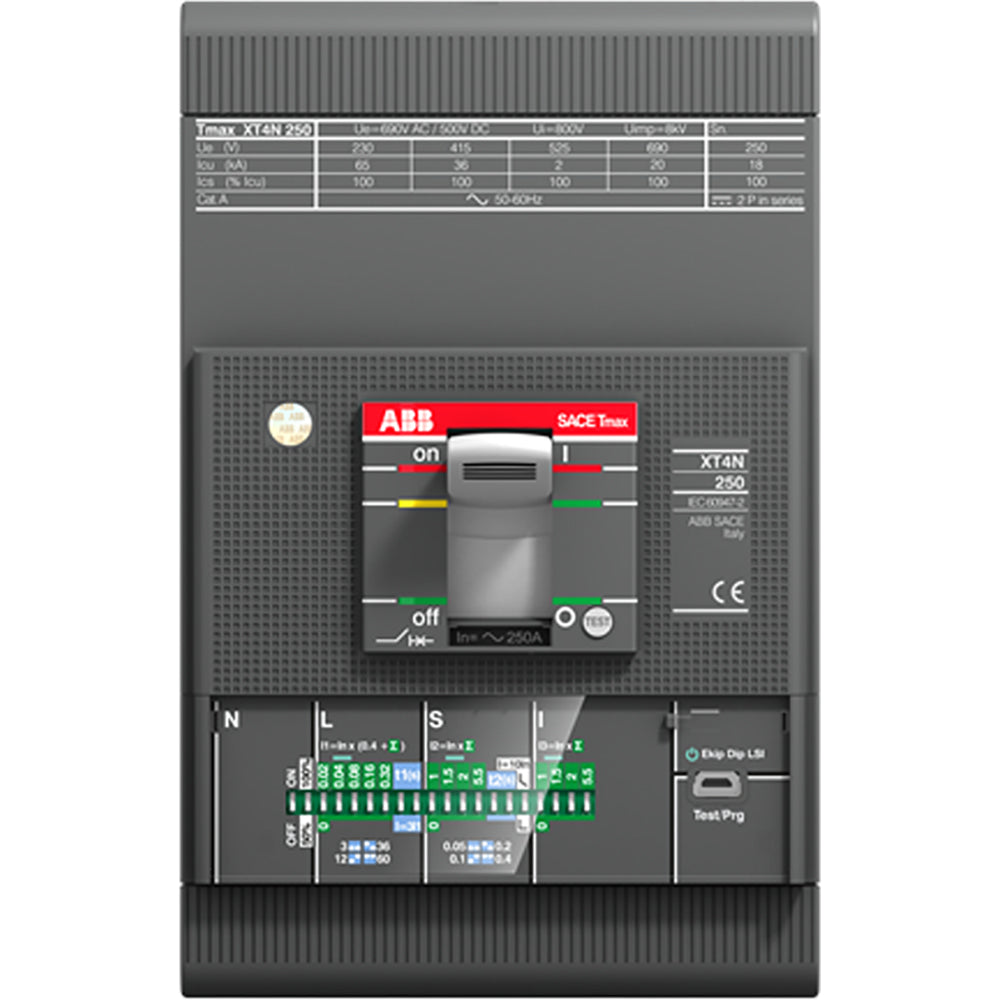

XT4HU3225FFF000XXX is a 3 pole, 225 amp, 600 Volt circuit breaker from ABB designed for bolt-on mounting with a 65kA interrupt rating at 480V.XT4HU3225FFF000XXX features the SACE Tmax XT frame size XT4 with an Ekip DIP LSI trip unit, providing reliable protection for electrical installations. It complies with UL 489, CSA C22.2 No. 5, IEC 60947-2, and NEMA AB-1 standards, suitable for industrial and commercial applications requiring high interrupt capacity and durability.
- Key Specifications
- Amperage: 225A
- Voltage Rating: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 65kA at 480V
- Frame Size: XT4
- Trip Unit: Ekip DIP LSI
- Standards: UL 489, CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1
- HACR Type Certified
- Application: Power circuit breaker for transformer, generator, and installation protection
Specifications
- Part Number: XT4HU3225FFF000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT4HU
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Protection : Solid State
Product Data
- UPC : 01564479423
- GTIN : 08015644794231
- Country of Origin : United States
- Weight : 5
- Standards : UL, CSA
- Certification : UL, CSA
