XT4HU3225AFJ000XXX - ABB 225A 600V 3 Pole Molded Case Circuit Breaker XT4 Frame

XT4HU3225AFJ000XXX

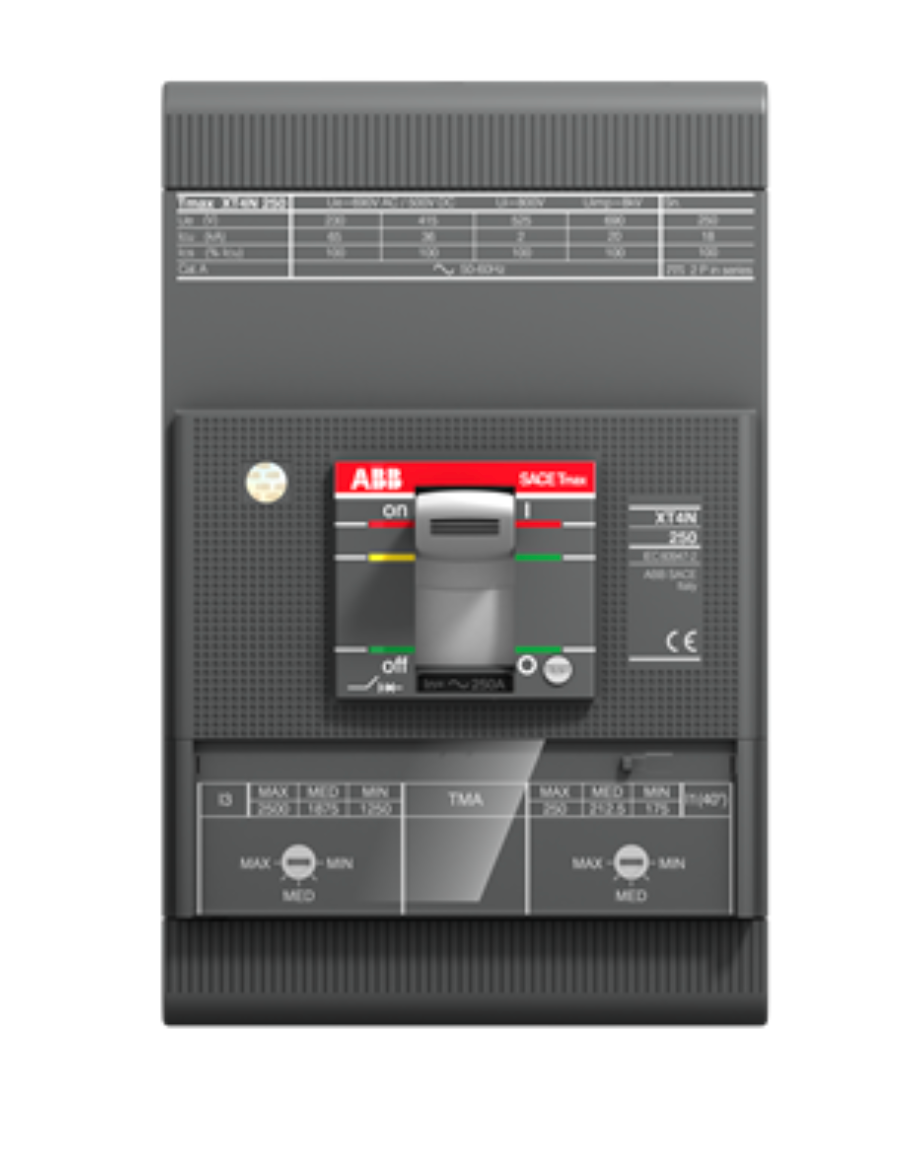

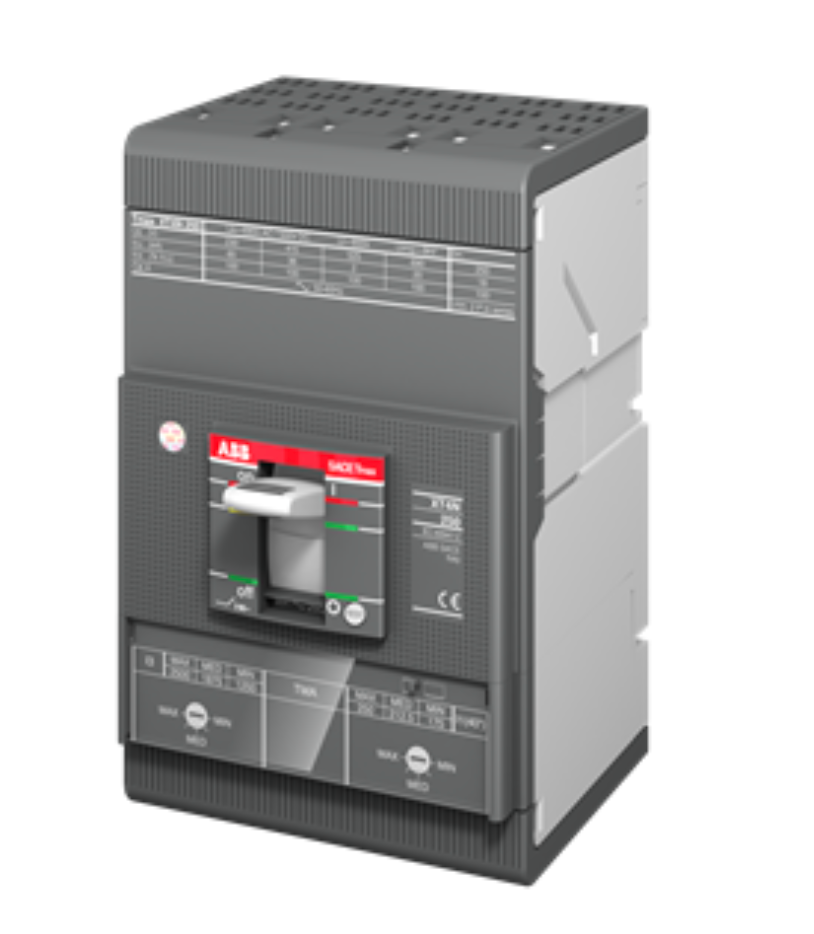

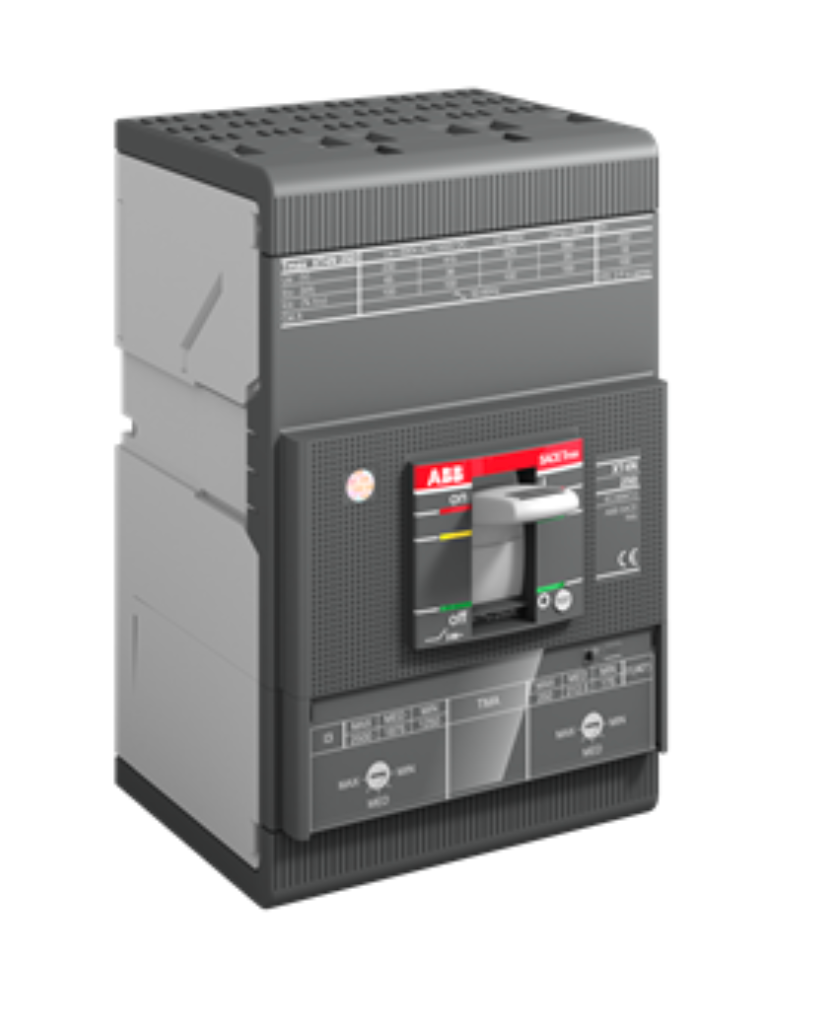

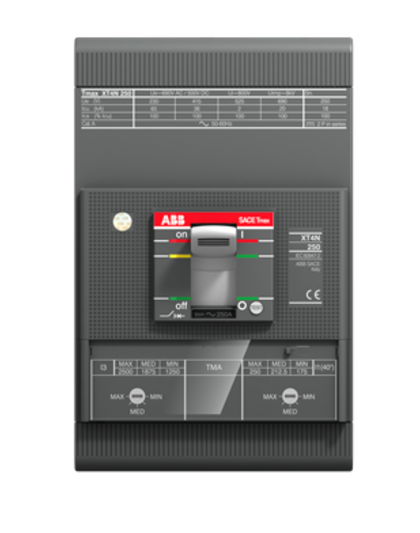

XT4HU3225AFJ000XXX is a 3 pole molded case circuit breaker from ABB, designed for reliable protection in low voltage power distribution systems. This breaker features a 225A current rating and a 600V AC/DC voltage rating, making it suitable for a wide range of commercial and industrial applications. The XT4 frame provides robust performance and compact size for efficient panel integration. This ABB circuit breaker utilizes a thermal magnetic trip unit for dependable overload and short circuit protection. It is engineered for front line/load side mounting and is compatible with standard DIN rail or panel mounting configurations. The breaker is designed to meet UL 489 and IEC 60947-2 standards, ensuring compliance with major safety and performance requirements.

• 225A Amperage Rating
• 600V AC/DC Voltage Rating
• 3 Poles
• XT4 Frame
• Thermal Magnetic Trip Unit
• Front Line/Load Side Mounting
• 65 kA Interrupt Rating @ 480V AC
• UL 489 Listed
• IEC 60947-2 Compliant
• 50/60 Hz Frequency Rating
• Compact Design
• Fixed Trip Settings

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XT4HU3225AFJ000XXX
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : SACE Tmax XT
• Type : XT4HU
• Voltage : 600VAC
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 65kAIC at 480VAC
• Connection : Bolt-On
• Terminal Connection : Load Side Lug
• Circuit Breaker Mounting Style : Panel
• Protection : Thermal Magnetic

Product Data

• Country of Origin : United States
• Weight : 9
• Standards : UL, CSA
• Certification : UL, CSA
• Wire Size : AWG 4 to AWG 300, Cu/Al
