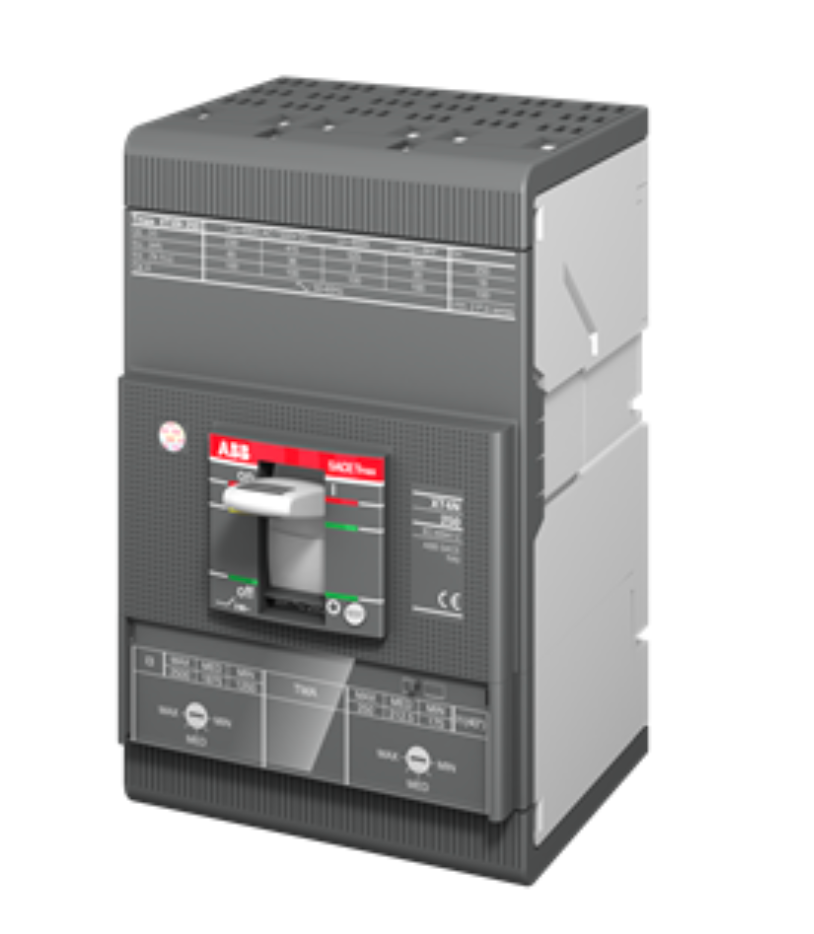

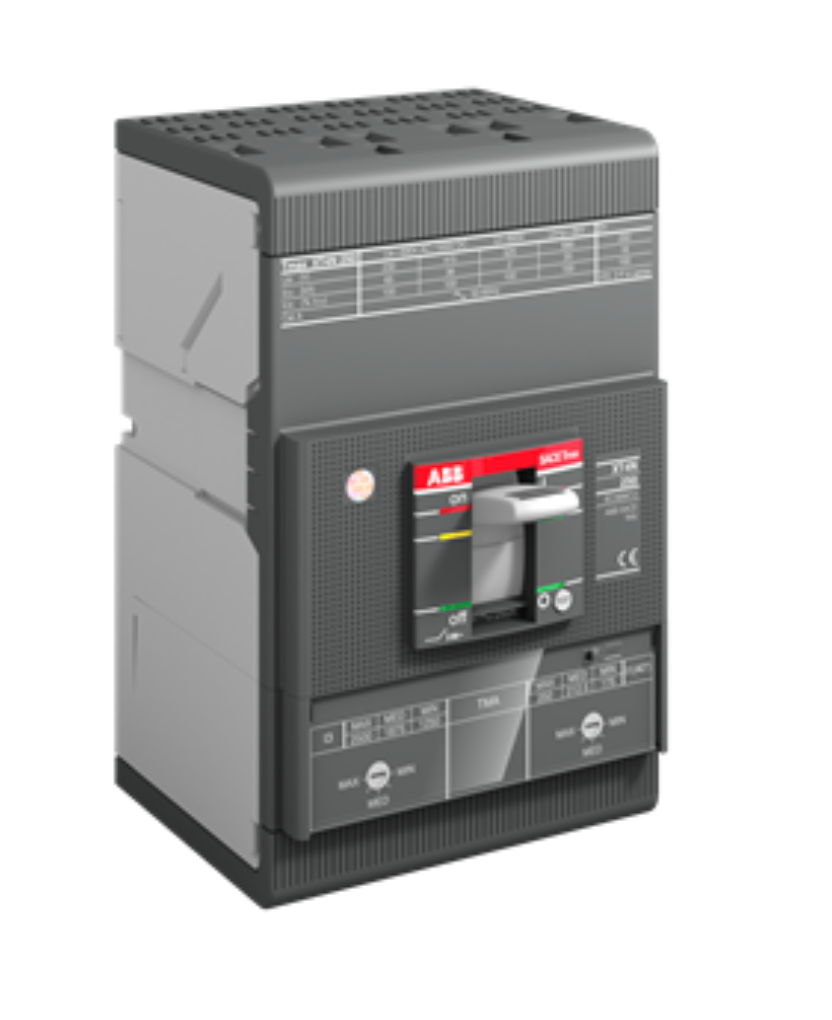

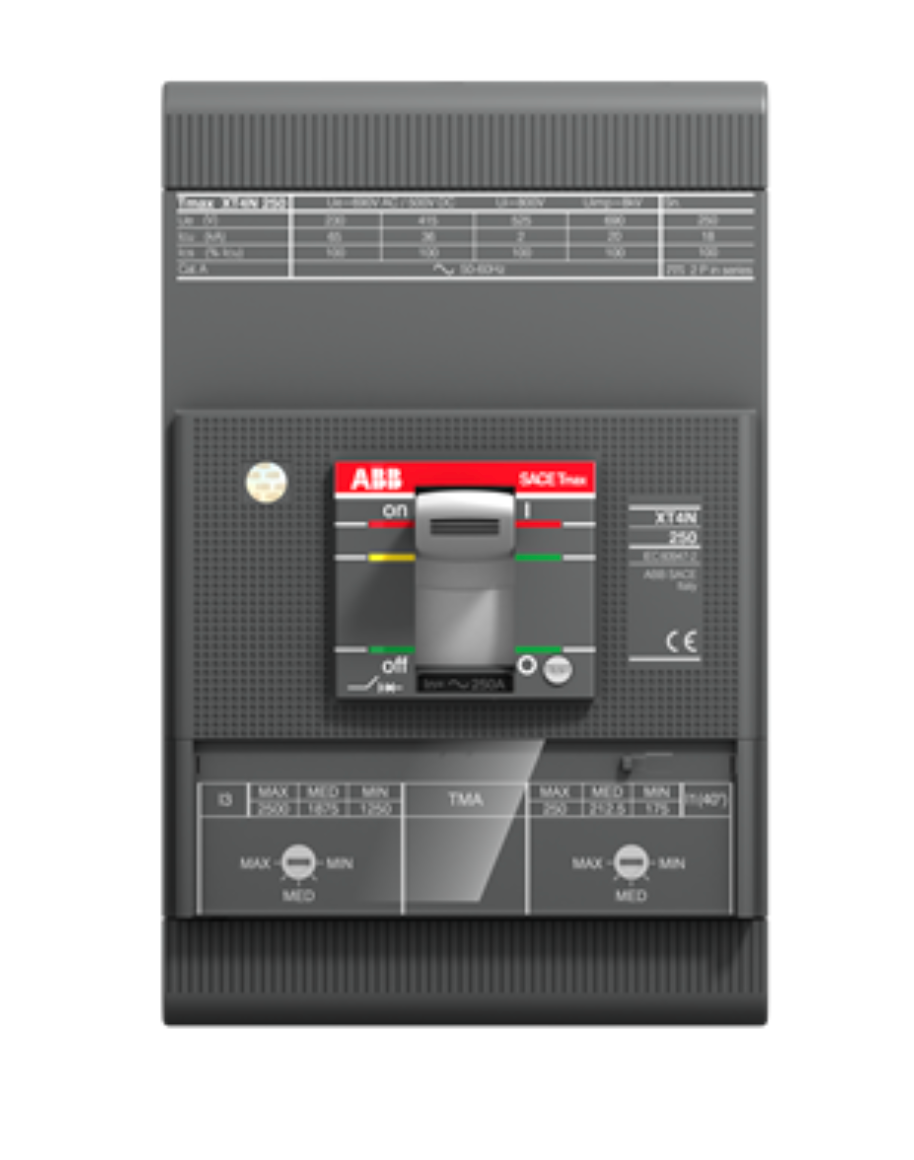

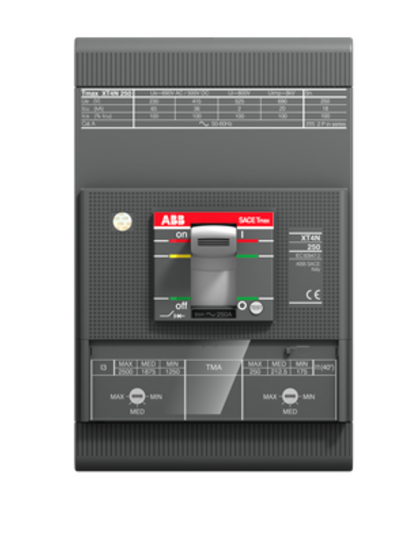

XT4HU3200AFJ000XXX - ABB 200A 600VAC 3-Pole Molded Case Circuit Breaker 65kA Interrupt Rating Tmax XT4 Frame

XT4HU3200AFJ000XXX

XT4HU3200AFJ000XXX is a 3-pole molded case circuit breaker from ABB designed for reliable power distribution protection.This ABB Tmax XT4 series breaker features a 200 ampere rating, 600 VAC voltage rating, and a high interrupt rating of 65 kA at 480 VAC. It includes a thermal magnetic trip unit (TMF/TMD) suitable for panel mounting with front line/load side connections. The breaker supports 3 poles and is built on the XT4 250A frame, providing robust protection in low voltage applications. It is UL listed and suitable for use in 50/60 Hz systems.

Key Specifications
• Amperage: 200 A
• Voltage Rating: 600 VAC/VDC
• Number of Poles: 3
• Interrupt Rating: 65 kA at 480 VAC
• Frame/Series: Tmax XT4 250A
• Trip Unit: Thermal Magnetic (TMF/TMD)
• Mounting Type: Panel Mount
• Connection Type: Front Line/Load Side
• Frequency: 50/60 Hz
• Dimensions: 6.3 in H x 4.13 in W x 3.25 in D
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XT4HU3200AFJ000XXX
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : SACE Tmax XT
• Type : XT4HU
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kAIC at 480VAC
• Connection : Bolt-On
• Circuit Breaker Mounting Style : Panel
• Protection : Thermal Magnetic

Product Data

• UPC : 56221720647
• Country of Origin : United States
• Weight : 14
• Standards : UL, CSA
• Certification : UL, CSA
• Wire Size : AWG 4 to 300KCmil, Cu/Al
