Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT4HU3175BYJ000XXX

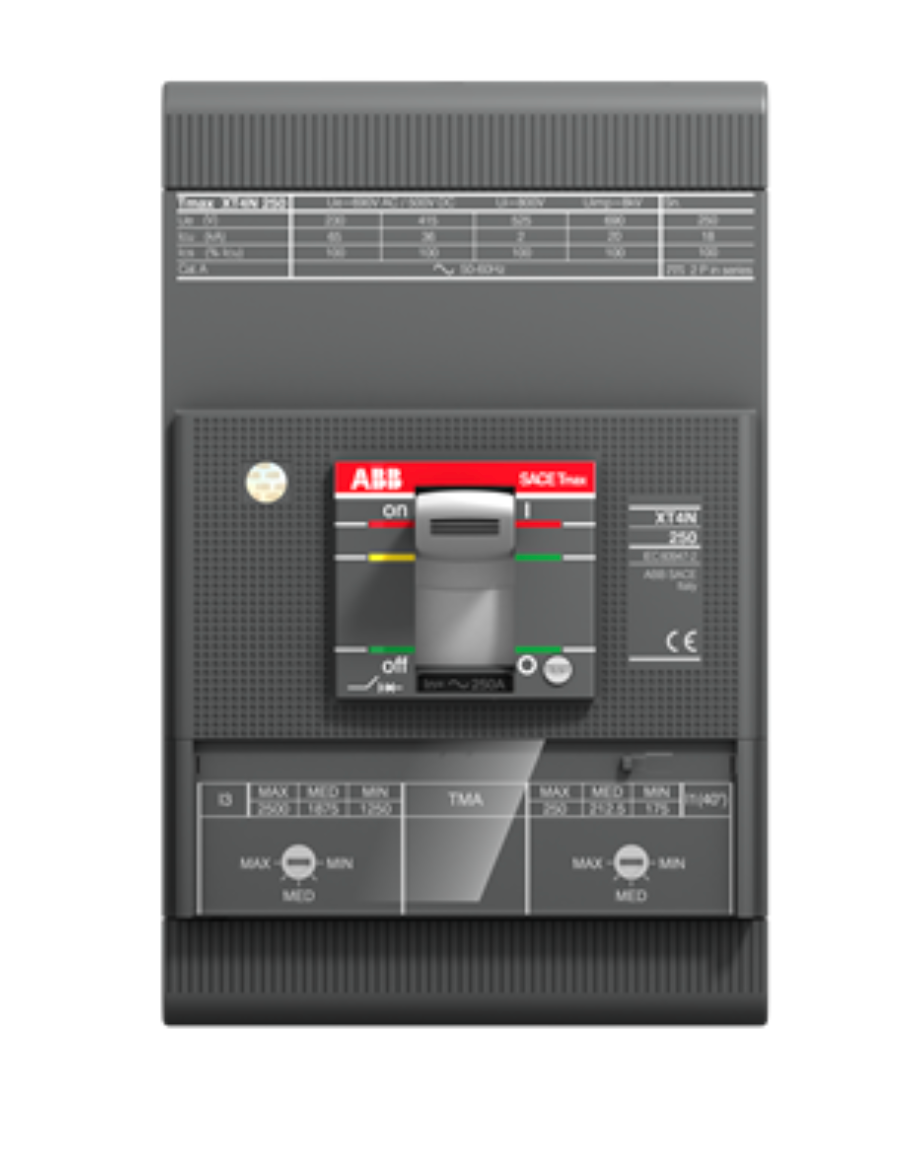

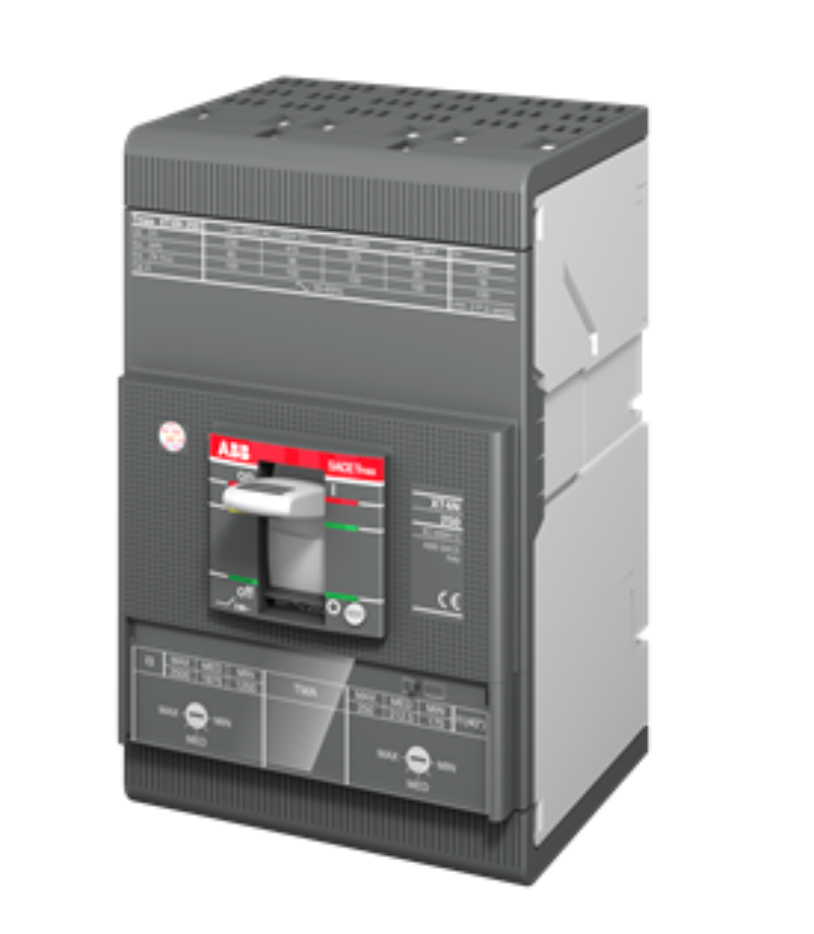

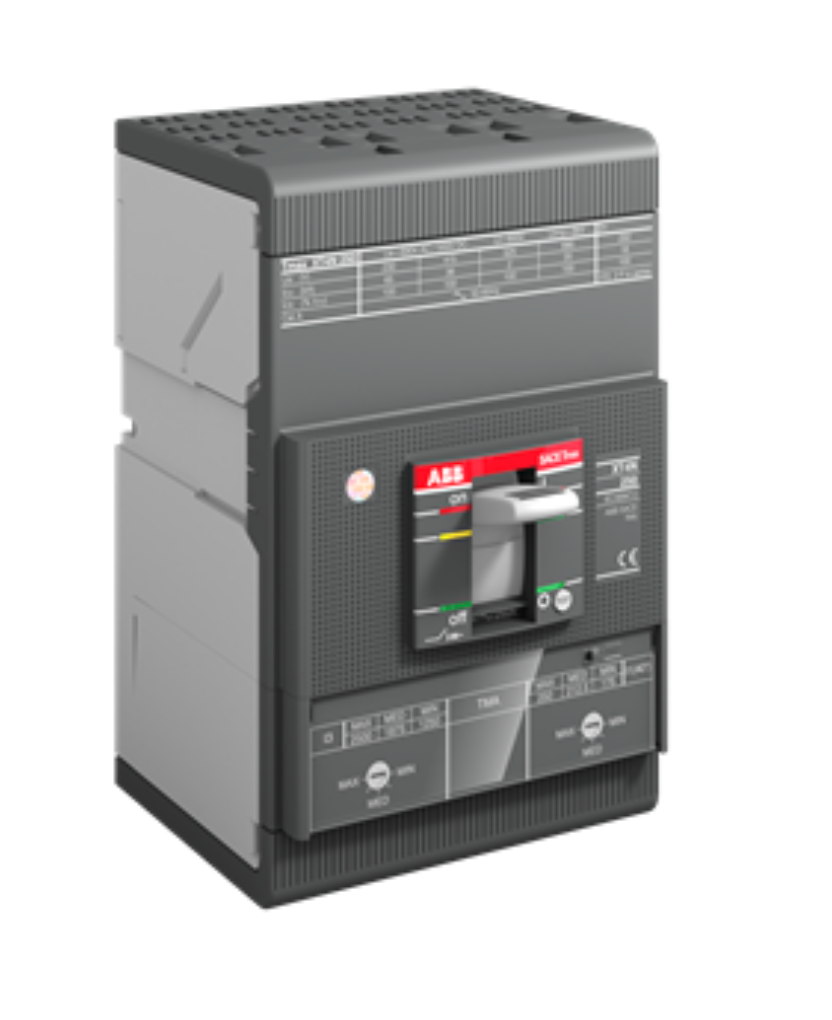

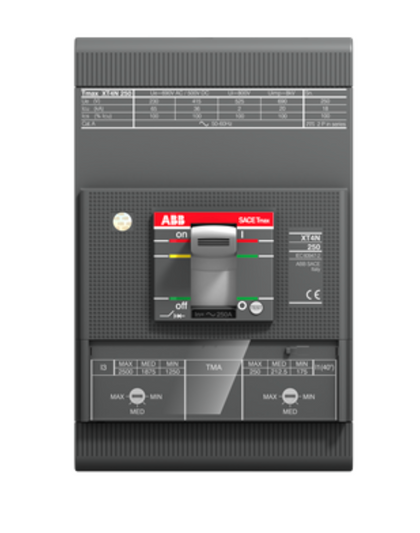

XT4HU3175BYJ000XXX is a 3-pole molded case circuit breaker from ABB designed for reliable low voltage power distribution and motor control.This ABB Tmax XT4 series breaker features a 175 ampere rating, 600 volt AC voltage rating, and a 65kA interrupting capacity with a thermal magnetic (TMA) trip unit. It is engineered for use in demanding industrial and commercial applications requiring robust protection and long service life.
- Manufacturer: ABB
- Part Number: XT4HU3175BYJ000XXX
- Amperage: 175 A
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Interrupt Rating: 65 kA
- Frame/Series: Tmax XT4
- Trip Unit: Thermal Magnetic (TMA)
- Mounting Type: Fixed
- Connection Type: Front Line/Load Side
- Insulation: Double Insulated
- Operating Temperature Range: -13 to 158 °F
- Country of Origin: Italy
Specifications
- Part Number: XT4HU3175BYJ000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT4HU
- Voltage : 600
- Amperage : 175
- Connection : Bolt-On
Product Data
- Country of Origin : United States
- Weight : 8 lb
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 4 to AWG 300, Cu/Al
