2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT4HU3150QYJ00HXXX

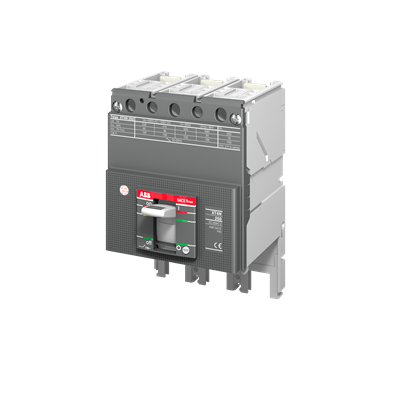

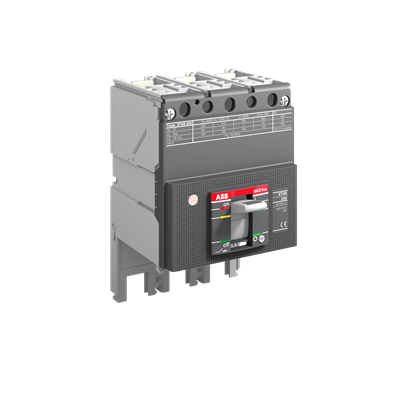

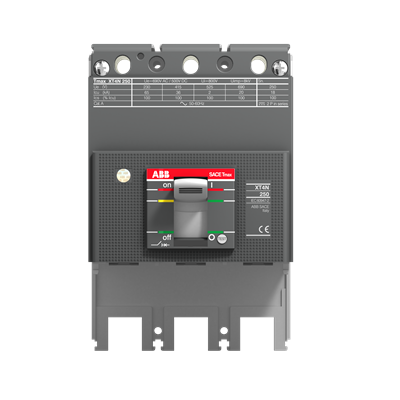

XT4HU3150QYJ00HXXX is a 3 pole molded case circuit breaker from ABB's XT4H series, designed for reliable protection in commercial and industrial power distribution systems. This breaker features a 150A current rating, 600VAC voltage rating, and is suitable for fixed mounting applications. It offers thermal-magnetic trip protection and is UL/CSA certified for safety and performance. The XT4HU3150QYJ00HXXX is engineered for durability and easy installation, with a robust frame and high interrupting capacity. It is ideal for use in panelboards, switchboards, and motor control centers where dependable circuit protection is required.
- Part Number: XT4HU3150QYJ00HXXX
- Manufacturer: ABB
- Series/Frame: XT4H
- Amperage: 150A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Fixed
- Interrupt Rating: 65kA
- Protection Type: Thermal-Magnetic
- Approvals: UL, CSA
- Wire Gauge: AWG 4 to AWG 300, Cu/Al
- Operating Temperature: 104°F
Specifications
- Part Number: XT4HU3150QYJ00HXXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT4HU
- Voltage : 600
- Amperage : 150
- Phase : 3
- Connection : Bolt-On
Product Data
- Country of Origin : United States
- Weight : 8
- Standards : UL, CSA
- Certification : UL, CSA
