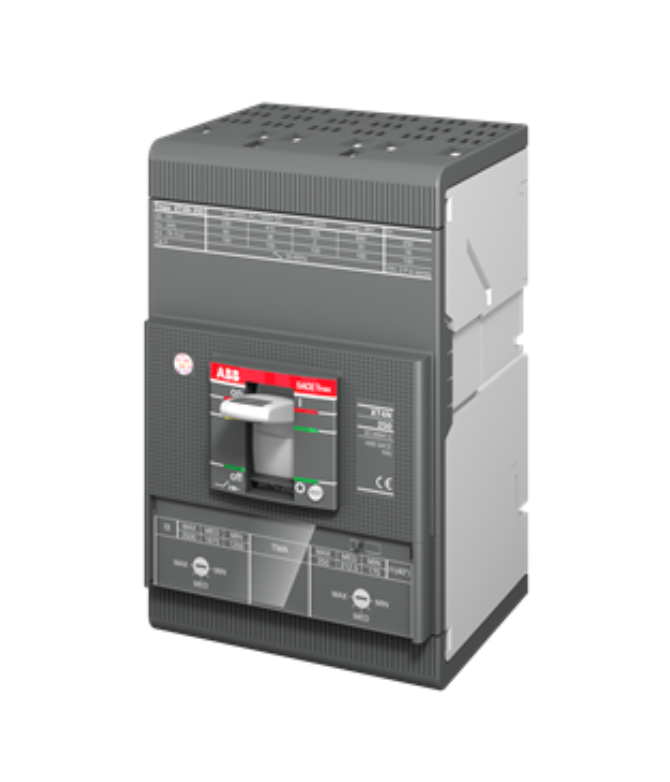

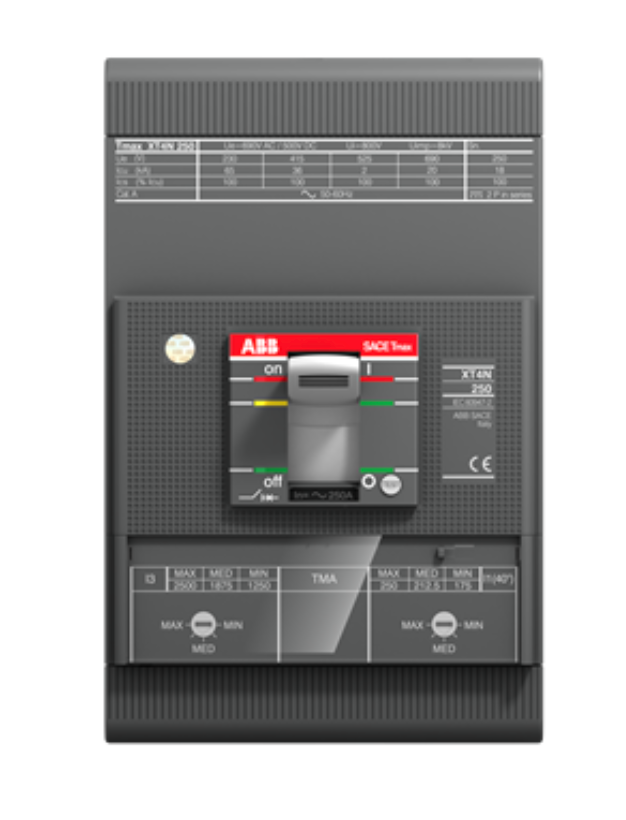

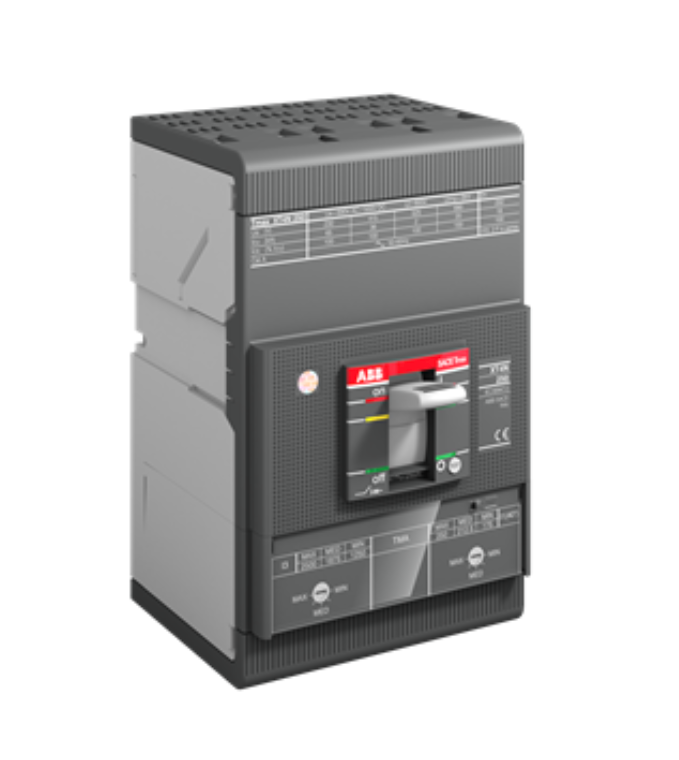

XT4HU3150AFJ000XXX - ABB 150A 600V 3 Pole Molded Case Circuit Breaker XT4H Frame Thermal Magnetic

XT4HU3150AFJ000XXX

XT4HU3150AFJ000XXX is a 3 pole molded case circuit breaker from ABB, designed for reliable protection in commercial and industrial power distribution systems. This breaker features a 150A current rating, 600VAC voltage rating, and is built on the XT4H frame with thermal magnetic trip technology for dependable circuit protection. This ABB XT4HU3150AFJ000XXX breaker is engineered for fixed mounting applications and offers a high interrupt rating suitable for demanding environments. The thermal magnetic trip unit provides both overload and short-circuit protection, ensuring safety and compliance with industry standards. The breaker is suitable for use in panelboards and switchgear where robust circuit protection is required.

• Part Number: XT4HU3150AFJ000XXX
• Manufacturer: ABB
• Amperage: 150A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Fixed
• Interrupt Rating: 65kA
• Series/Frame: XT4H
• Protection Type: Thermal Magnetic
• Standards: UL 489, CSA 22.2
• Operating Temperature: -25°C to +70°C
• Application: Commercial, Industrial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XT4HU3150AFJ000XXX
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : SACE Tmax XT
• Type : XT4HU
• Voltage : 600VAC
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 25kAIC at 600VAC, 65kAIC at 480VAC
• Connection : Bolt-On
• Terminal Connection : Load Side Lug
• Circuit Breaker Mounting Style : Panel
• Protection : Thermal Magnetic

Product Data

• UPC : 56221720623
• Country of Origin : United States
• Weight : 8
• Standards : UL, CSA
• Certification : UL, CSA
• Wire Size : AWG 4 to AWG 300, Cu/Al
