Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT2NU3125FYD000XXX

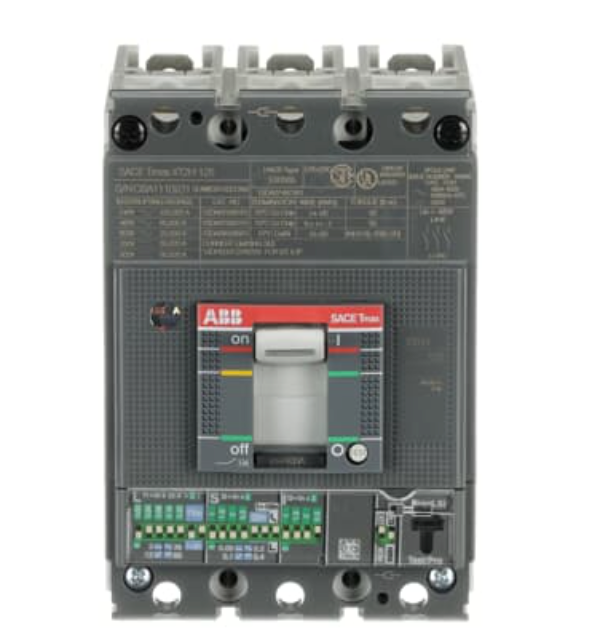

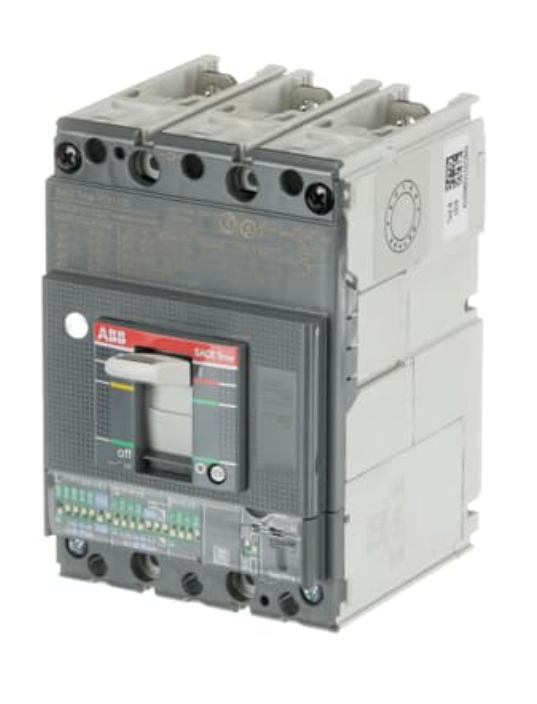

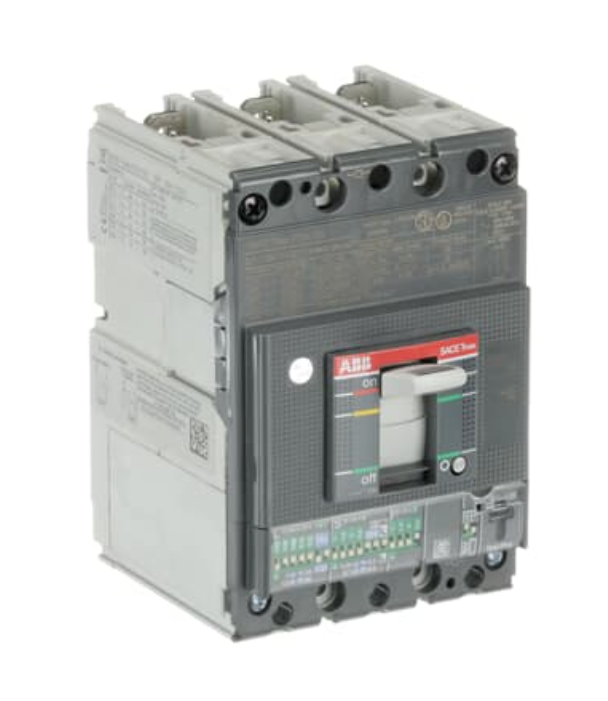

XT2NU3125FYD000XXX is an ABB Tmax XT molded case circuit breaker designed for low voltage applications.XT2NU3125FYD000XXX features a 125 A rating in a compact XT2 frame with 3 poles, 600 V rating, and 18 kA interrupt capacity at 600 VAC. It includes electronic trip functionality with long-time, short-time, and instantaneous protection, front line/load side connections, and double insulated design for reliable circuit protection in industrial and commercial settings.
- Part Number: XT2NU3125FYD000XXX
- Manufacturer: ABB
- Frame Size: XT2 125A
- Amperage Rating: 125 A
- Number of Poles: 3
- Voltage Rating: 600 VAC
- Interrupt Rating: 18 kA @ 600 VAC
- Series: Tmax XT
- Trip Type: Electronic
- Frequency Rating: 50/60 Hz
- Dimensions: 5.12 in H x 3.54 in W x 3.25 in D
- Temperature Rating: -13 to 158 deg F
Specifications
- Part Number: XT2NU3125FYD000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT2NU
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LSI - Long Time, Short Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- Country of Origin : United States
- Weight : 8
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 10 to AWG 2/0, Cu/Al
