Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT2HU3060FYD000XXX

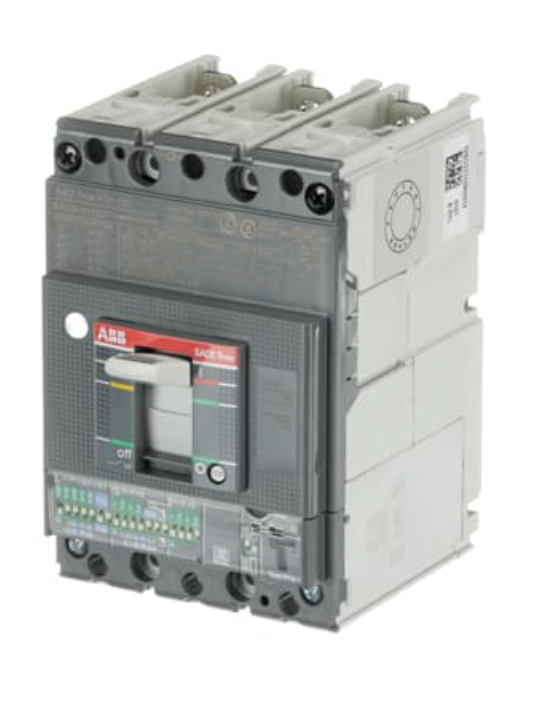

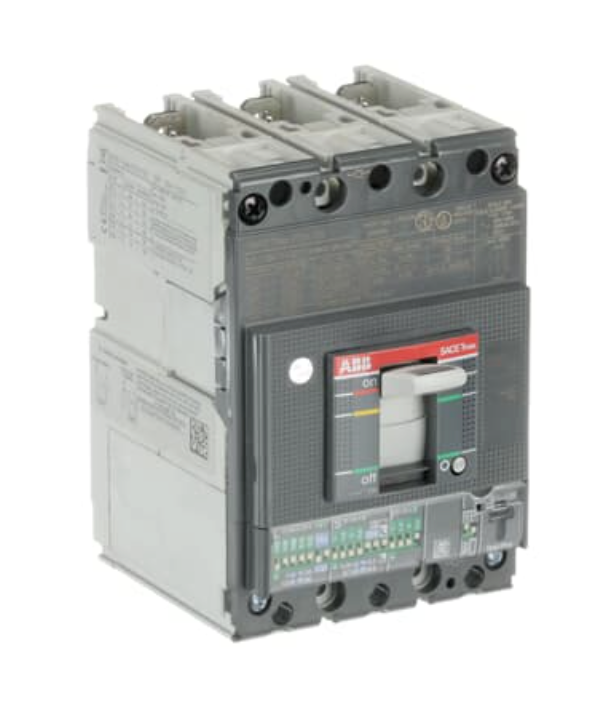

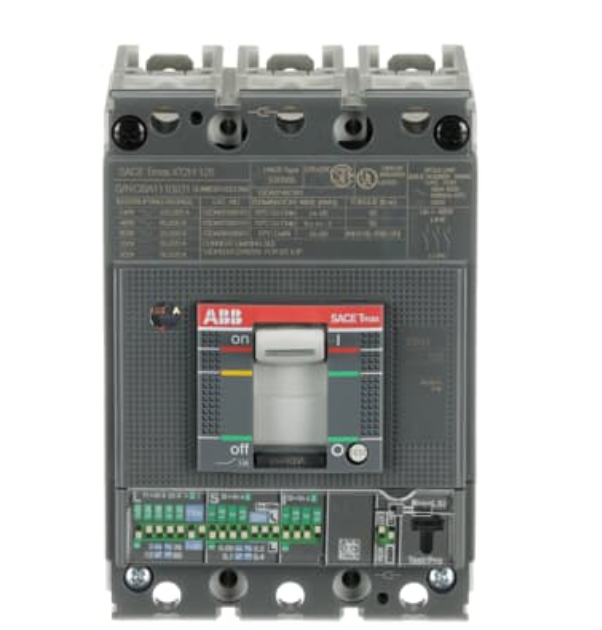

XT2HU3060FYD000XXX is an ABB Tmax XT molded case circuit breaker featuring thermal-magnetic protection for low voltage applications.This 3-pole circuit breaker from the XT2 frame series offers 60A amperage rating and 600V voltage rating with front flat terminals and electronic/fixed thermal-magnetic trip unit. It provides high let-through current peak and energy limiting characteristics for optimal circuit protection.
- Part Number: XT2HU3060FYD000XXX
- Manufacturer: ABB
- Series/Frame: Tmax XT, XT2 125A
- Amperage: 60A
- Voltage: 600/690 VAC
- Poles: 3
- Trip Unit: Electronic/Fixed Thermal Magnetic
- Interrupt Rating: 25kA@600V, 65kA@480V
- Frequency: 50/60 Hz
- Connection: Front Line/Load Side, Front Flat Terminals
- Dimensions: 5.12 in H x 3.54 in W x 3.25 in D
Specifications
- Part Number: XT2HU3060FYD000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT2HU
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- Connection : Bolt-On
- Functions : LSI - Long Time, Short Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- Country of Origin : United States
- Weight : 5.19
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 10 to AWG 2/0, Cu/Al
