Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT1SU3100AYD000XXX

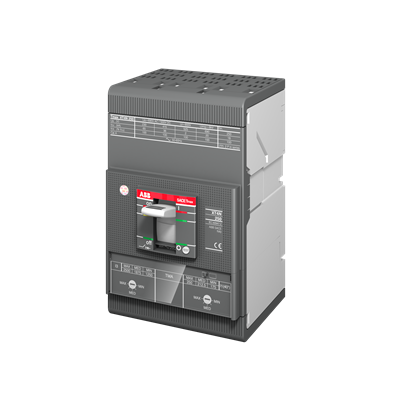

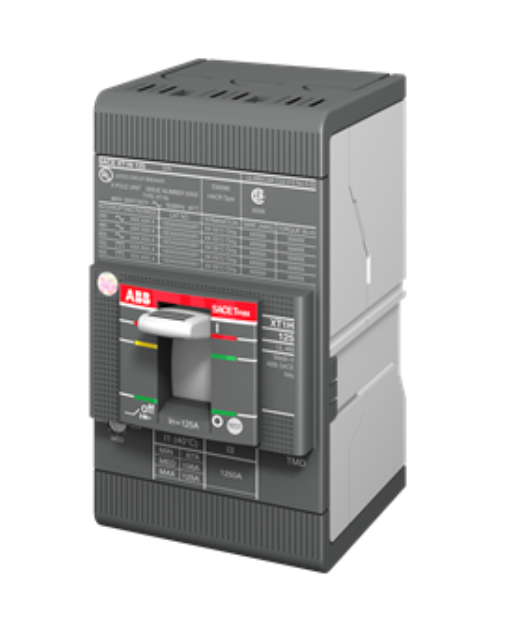

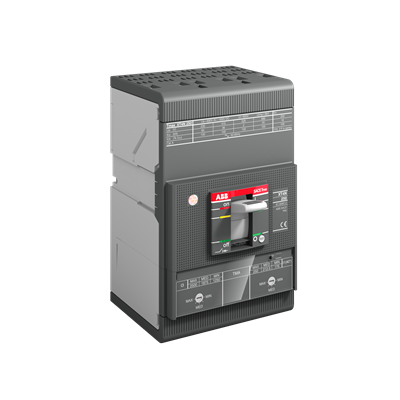

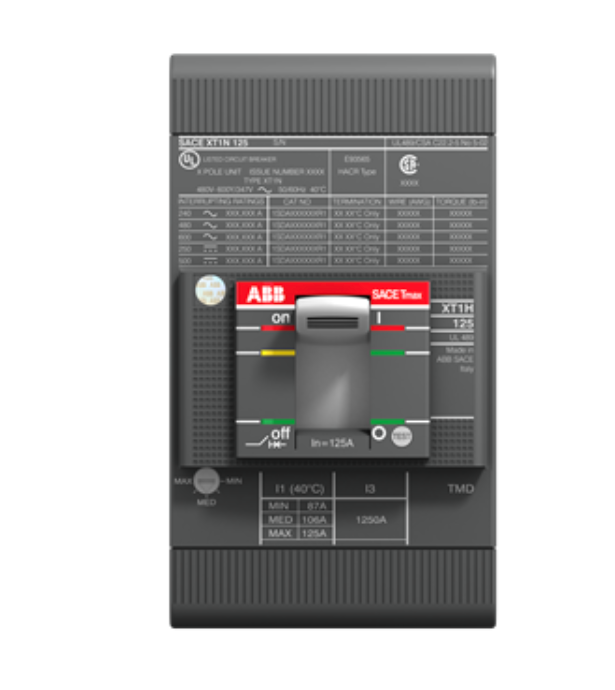

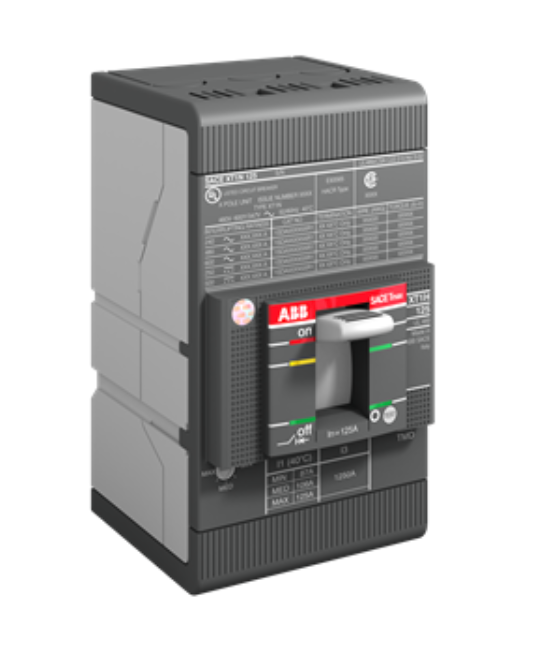

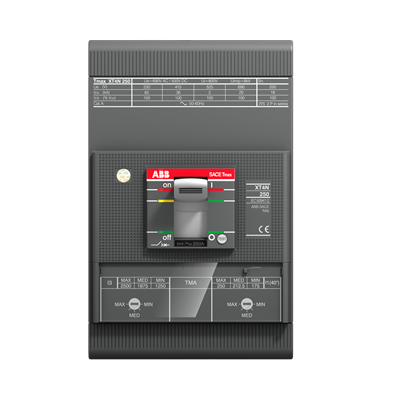

XT1SU3100AYD000XXX is a 3 pole thermal magnetic molded case circuit breaker from ABB designed for reliable power distribution and protection. This breaker features a 100 ampere current rating and a 600 volt AC voltage rating suitable for industrial applications. It offers a 35kA interrupting rating at 480V, ensuring robust short-circuit protection. The breaker is part of the ABB SACE Tmax XT series and supports fixed bolt-on mounting. It is UL and CSA certified and suitable for continuous operation at 100% rating with 90°C wire.
- Manufacturer: ABB
- Part Number: XT1SU3100AYD000XXX
- Series/Frame: SACE Tmax XT
- Type: XT1S
- Poles: 3
- Amperage: 100A
- Voltage Rating: 600VAC
- Interrupt Rating: 35kA at 480V
- Mounting Type: Fixed bolt-on
- Trip Unit: Thermal Magnetic
- Certifications: UL, CSA
- Suitable for continuous operation at 100% rating
Specifications
- Part Number: XT1SU3100AYD000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT1SU
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Country of Origin : United States
- Weight : 8
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 10 to AWG 2/0, Cu/Al
