Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT1SU3025AFD000XXX

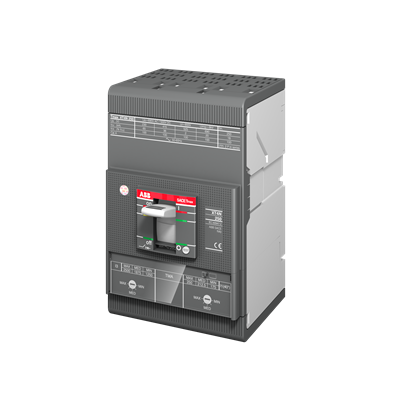

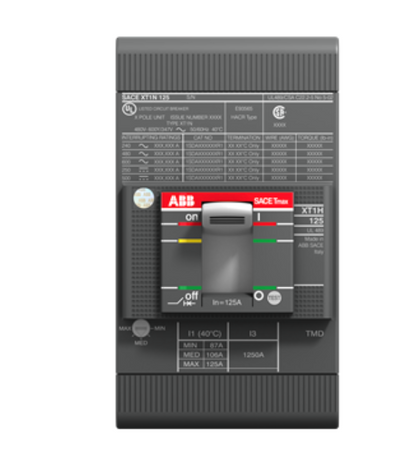

XT1SU3025AFD000XXX is a 3 pole, 25 amp, 600 volt molded case circuit breaker from ABB's Tmax XT1 series designed for low voltage power distribution protection. This thermal magnetic circuit breaker provides reliable overcurrent and short circuit protection for main switchboards and sub-switchboards in industrial and commercial installations. The fixed thermal-magnetic trip unit delivers consistent performance across 50/60 Hz applications with a compact XT1 125A frame design.
- Amperage Rating: 25 A
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Series: Tmax XT1
- Frame Size: XT1 125A
- Trip Type: Thermal Magnetic
- Interrupt Rating: 22 kA at 600V
- Frequency: 50/60 Hz
- Connection Type: Front Line/Load Side
- Dimensions: 3 in W x 2.75 in D x 5.12 in H
- Operating Temperature: -13 to 158 deg F
Specifications
- Part Number: XT1SU3025AFD000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT1SU
- Voltage : 600Y/347 VAC
- Amperage : 25
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Country of Origin : United States
- Weight : 5 lb
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 10 to AWG 2/0, Cu/Al
