Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT1NU3045AFD000XXX

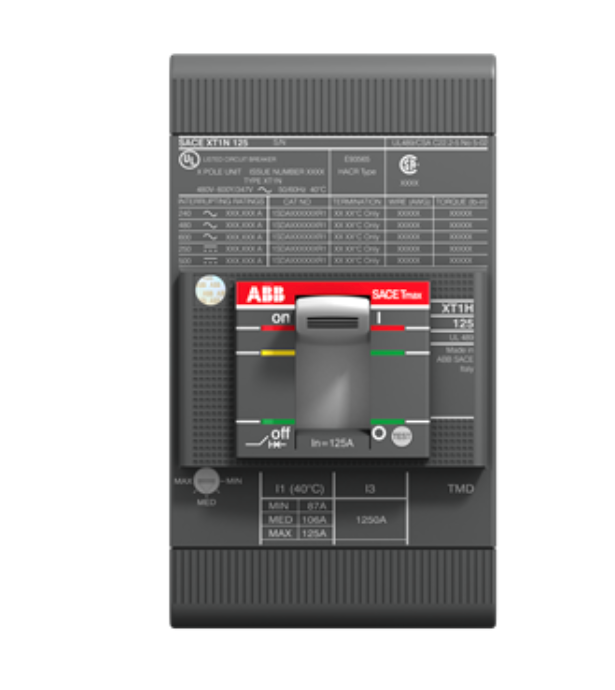

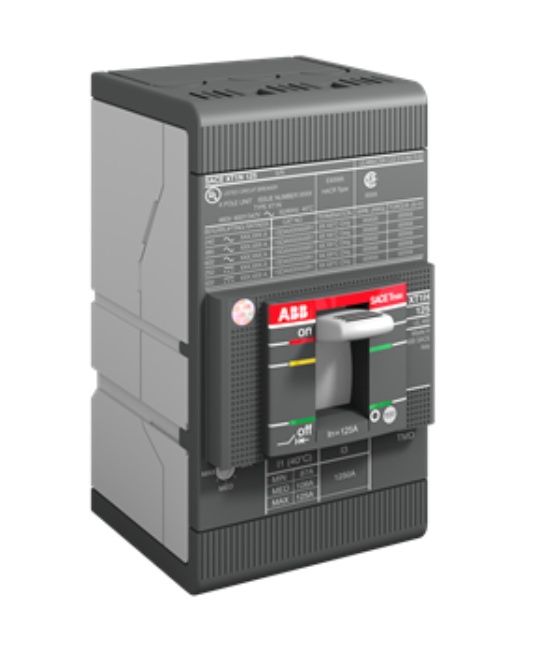

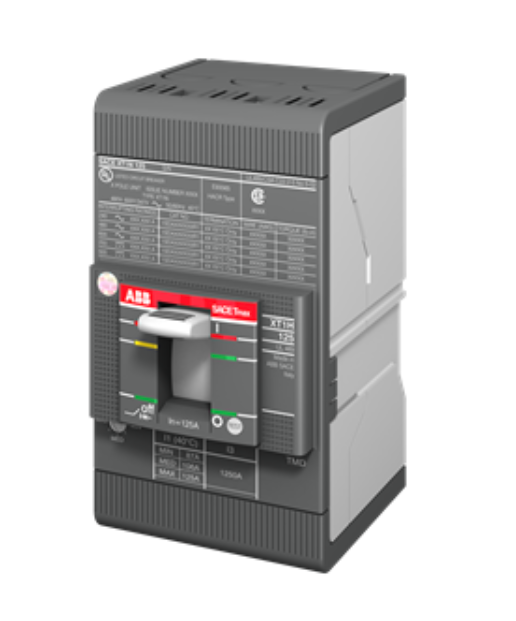

XT1NU3045AFD000XXX is a 45-ampere, 3-pole molded case circuit breaker from ABB's Tmax XT series designed for low voltage power distribution applications. This thermal magnetic fixed (TMF) protection breaker provides reliable overcurrent and short-circuit protection for main and sub-switchboard installations. The XT1 frame accommodates ratings up to 125A and features front line/load side terminals with standard mounting hardware. Key Specifications
- Amperage Rating: 45A
- Voltage Rating: 600V AC (50/60 Hz)
- Number of Poles: 3
- Frame Size: XT1 125A
- Trip Unit: Thermal Magnetic Fixed (TMF)
- Interrupt Rating: 18 kA at 600V AC
- Trip Range: 45 to 500A
- Dimensions: 3 in W x 2.75 in D x 5.12 in H
- Temperature Rating: -13 to 158 deg F
- Certifications: UL/CSA
- Connection Type: Front terminals
- Country of Origin: Italy
Specifications
- Part Number: XT1NU3045AFD000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT1NU
- Voltage : 600Y/347 VAC
- Amperage : 45
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
Product Data
- GTIN : 08056221750240
- Country of Origin : United States
- Weight : 5.19
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 10 to AWG 2/0, Cu/Al
