Product Info
- Manufacturer:ABB
Description

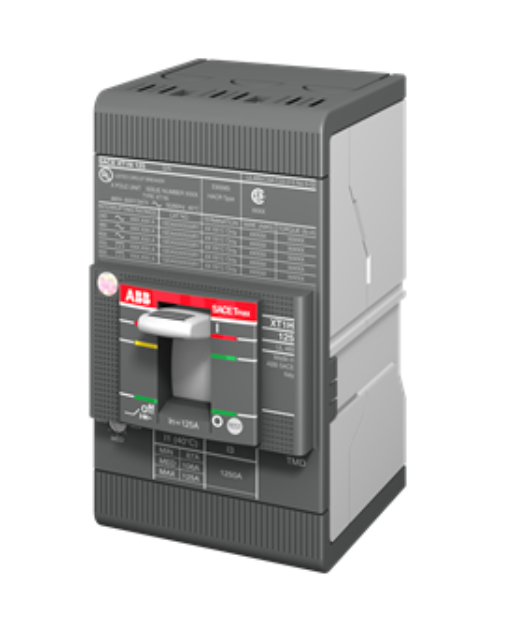

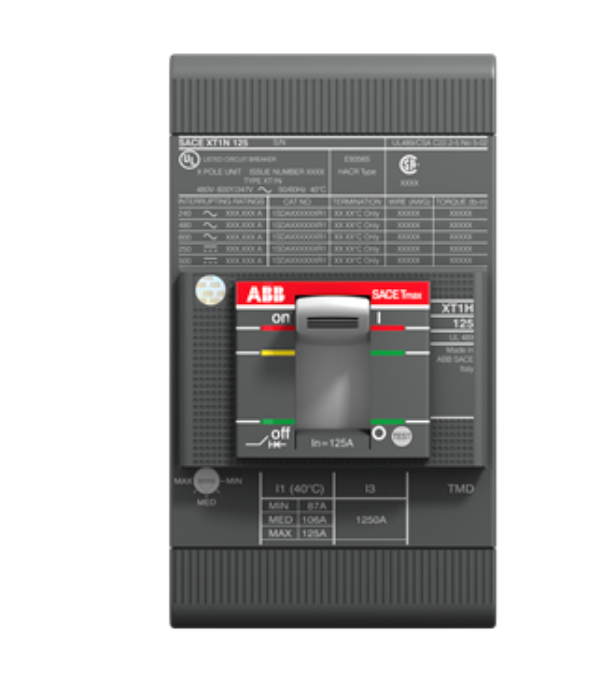

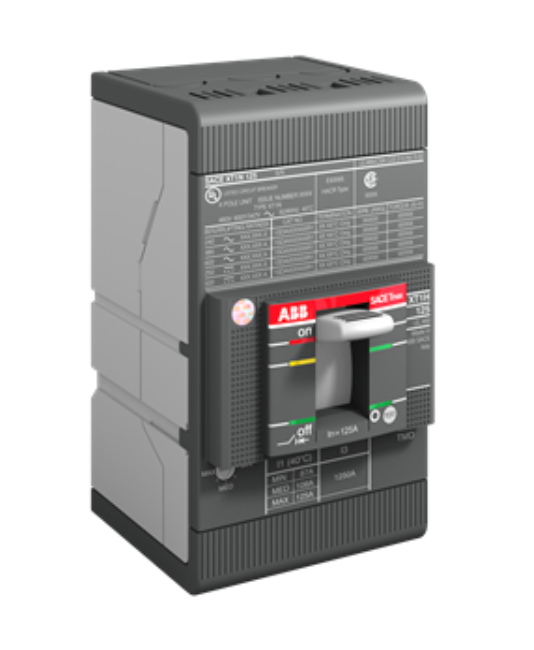

XT1NU3020AYD00GXXX
XT1NU3020AYD00GXXX is a 3-pole, 20A molded case circuit breaker from the ABB Tmax XT1N Series, designed for reliable protection in commercial and industrial applications. This breaker features a fixed thermal-magnetic trip unit, 600VAC rating, and 25kA interrupting capacity at 480VAC, making it suitable for demanding electrical environments. It is panel-mountable and meets UL 489, CSA, and IEC 60947-2 standards for global compliance. Engineered for space-saving installations, the XT1NU3020AYD00GXXX is ideal for OEM panels, switchgear, and facility upgrades. Its robust construction and precise trip characteristics ensure dependable overcurrent and short-circuit protection.
- Rated Current: 20A
- Poles: 3
- Voltage Rating: 600VAC
- Interrupting Capacity: 25kA @ 480VAC
- Mounting Type: Panel Mount
- Series/Frame: XT1N
- Frame Size: XT1
- Phase: 3-Phase
- Terminal Configuration: Line and Load
- Trip Unit: Fixed Thermal-Magnetic (TMF 20–500)
- Certifications: UL 489, CSA, IEC 60947-2
- Application: Industrial and Commercial Distribution
Specifications
- Part Number: XT1NU3020AYD00GXXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Family : SACE Tmax XT
- Type : XT1NU
- Voltage : 600
- Amperage : 20
- Connection : Bolt-On
Product Data
- Country of Origin : United States
- Weight : 5.19
- Standards : UL, CSA
- Certification : UL, CSA
