Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT1NU3020AYD000XXX

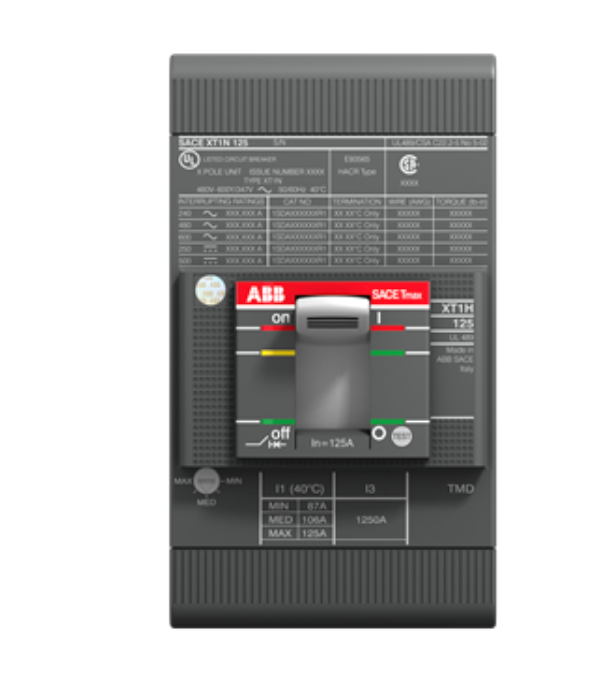

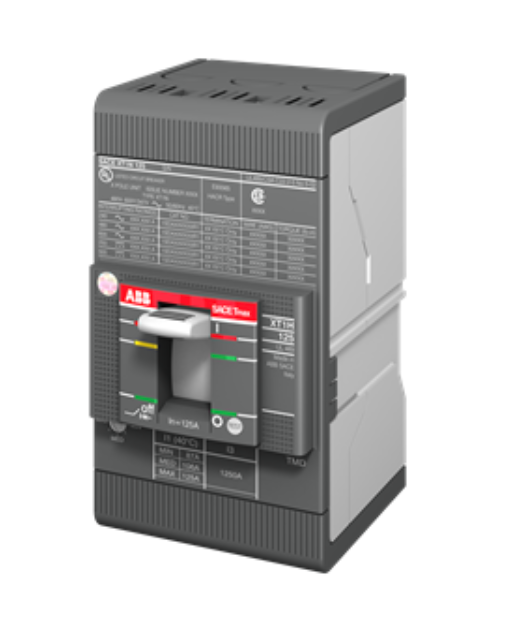

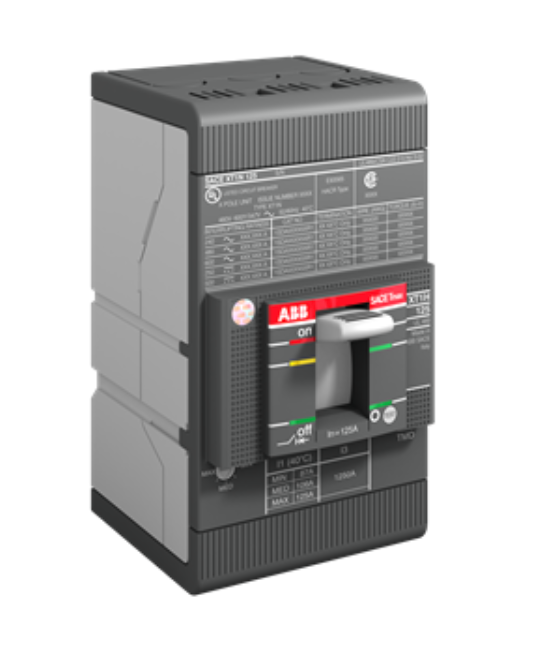

XT1NU3020AYD000XXX is a 3-pole molded case circuit breaker from ABBs Tmax XT1N series, rated at 20A and 600VAC with fixed thermal-magnetic trip unit.This compact XT1N frame breaker provides reliable overcurrent and short-circuit protection with 25kA interrupting capacity at 480VAC. It features fixed mounting for panel installations and front flat terminals, ideal for industrial distribution boards, OEM panels, and commercial switchgear.
- Part Number: XT1NU3020AYD000XXX
- Manufacturer: ABB
- Series/Frame: Tmax XT1N
- Amperage: 20A
- Poles: 3
- Voltage Rating: 600VAC
- Trip Unit: Fixed Thermal-Magnetic
- Interrupt Rating: 25kA at 480VAC
- Mounting Type: Fixed, Panel-Mount
- Certifications: UL 489, CSA, IEC 60947-2
Specifications
- Part Number: XT1NU3020AYD000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT1NU
- Voltage : 600Y/347 VAC
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
Product Data
- UPC : 56221785561
- Country of Origin : United States
- Weight : 5 lb
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 10 to AWG 2/0, Cu/Al
