Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT1HU3015AFD000XXX

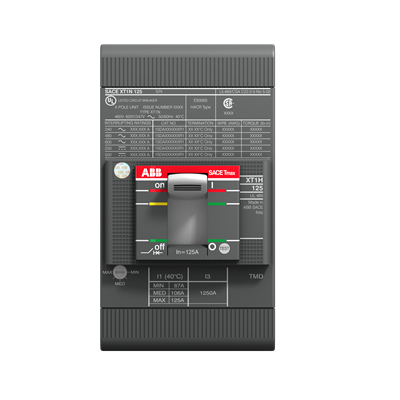

XT1HU3015AFD000XXX is an ABB Tmax XT molded case circuit breaker with 3 poles, 15A rating, and thermal magnetic trip unit.This XT1 frame breaker provides reliable low voltage protection up to 600Y/347 VAC with fixed thermal magnetic trip, front line/load side connections for copper/aluminum cables, and double insulated design for industrial and commercial applications.
- Part Number: XT1HU3015AFD000XXX
- Manufacturer: ABB
- Type: Molded Case Circuit Breaker
- Series/Frame: Tmax XT, XT1 125A
- Amperage: 15A
- Voltage: 600Y/347 VAC
- Poles: 3
- Trip Unit: Thermal Magnetic Fixed (TMF)
- Interrupt Rating: 65kA@480V, 25kA@600V
- Frequency: 50/60 Hz
- Connection: Front Line/Load Side, FC CuAl
- Dimensions: 5.12in H x 3in W x 2.75in D
Specifications
- Part Number: XT1HU3015AFD000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT1HU
- Voltage : 600Y/347 VAC
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Trip Type : Fixed Thermal / Fixed Magnetic
Product Data
- UPC : 01564478671
- GTIN : 08015644786717
- Country of Origin : United States
- Weight : 2.5 lb
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 10 to AWG 2/0, Cu/Al
