XPLA4-UNV34-S917 - Eaton Lighting and controls LED Fixture 8000 lm

XPLA4-UNV34-S917

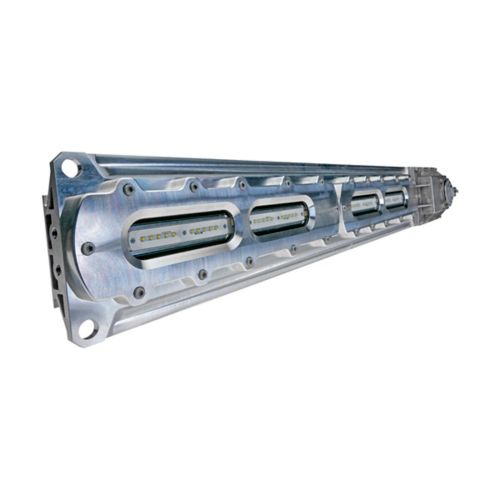

XPLA4-UNV34-S917 is an Eaton Crouse-Hinds series Hazard-Gard explosionproof linear LED light fixture designed for hazardous locations. This 4-foot fixture delivers 8000 lumens at 139 lm/W with cool white 5000K color temperature and is rated for Class I, Division 1 and Class II, Division 1 areas. The fixture features a copper-free aluminum construction with a glass lens and operates across a wide temperature range from -40°C to +65°C. It is engineered to withstand high vibration, hose down, shock, and impact while providing long-life performance as a replacement for fluorescent T12, T8, and T5HO lighting. The fixture includes four points of secondary retention, loop feed wiring, 2000 PSI high-pressure hose rating, 5G 3-axis vibration capability, and 4kV line-to-line surge protection with a 5-year warranty. Key Specifications

• Part Number: XPLA4-UNV34-S917
• Manufacturer: Eaton
• Lumens: 8000 lm
• Lumens per Watt: 139 lm/W
• Color Temperature: 5000K
• Length: 4 ft
• Operating Temperature: -40°C to +65°C
• Lens Type: Glass
• Material: Copper-free aluminum
• Hazard Rating: Class I Division 1, Class II Division 1
• Vibration Rating: 5G 3-axis
• Warranty: 5 years

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XPLA4-UNV34-S917
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : Linear
• Voltage : 347-480 Vac
• Nema Rating : 4X
• Watts : 59W
• Material : Copper-free aluminum
• NEC hazardous rating : Class I, Division 1 Class II, Division 1 Class III
• Ingress protection (IP) ratings : IP66
• Lumens : 8000 lm
• Lumens per watt : 139 lm/W
• Color temperature : 5000K
• Mounting Method : Flush and swivel mount
• Power factor : > 0.90
• Certifications and compliances : Class I Division 1, Class II Division 1
• Special features : Explosionproof, high vibration rated, hose down rated, 4 points secondary retention, 2000 PSI rated, 4kV surge protection
• Color : Cool white
• Minimum Ambient Operating Temperature : -40°C
• Maximum Ambient Operating Temperature : 65°C

Product Data

• UPC : 662276962729
• Dimensions : 48.2 in x 4.56 in x 6.5 in (Length/Depth x Height x Width)
• Weight : 27 lb
