XLVS12020101 - Eaton Enclosures 20x20x10 316L Stainless

XLVS12020101

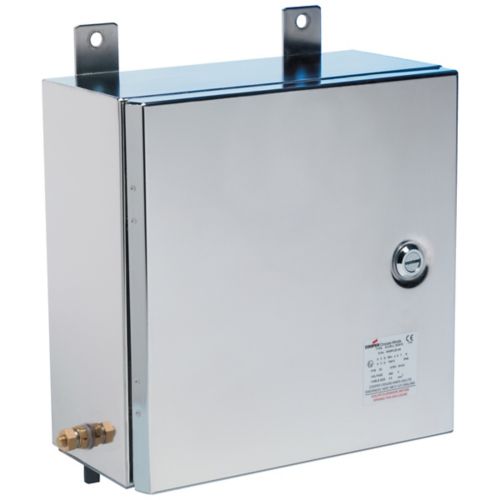

XLVS12020101 is an Eaton Crouse-Hinds series Ex-CELL stainless steel enclosure designed for hazardous and classified locations. This 20" x 20" x 10" enclosure is constructed from 316L electro-polished stainless steel and features a single gland plate with vertical lugs for secure mounting and cable entry. The enclosure meets multiple international and North American standards including ATEX, IECEx, NEC, and CEC requirements, making it suitable for Class I and Class II hazardous area applications. Key Specifications

• Part Number: XLVS12020101
• Manufacturer: Eaton
• Enclosure Size: 20 x 20 x 10 inches
• Material: 316L stainless steel
• NEMA Rating: 4X
• IP Rating: IP66
• Gland Plates: 1
• Lug Type: Vertical
• Operating Temperature: -55 to 120 degrees Celsius
• Rated Voltage: 690 V AC/DC
• Rated Current: 400 A
• Standards: ATEX, IECEx, NEC/CEC
• NEC Hazardous Rating: Class I Division 2, Class II Division 2, Class I Zone 1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XLVS12020101
• Manufacturer : Eaton
• Brand : Eaton
• Category : Enclosures
• Item Subcategory : Standard enclosures and junction boxes
• Section : Enclosure
• Type : Vertical lugs
• Nema Rating : 4X
• Operating Temperature Maximum Celsius : -55 to 120 degrees Celsius
• Dist Voltage : 690 V AC/DC
• Material : 316L stainless steel
• Rated Current : 400 A
• NEC hazardous rating : Class I Division 2, Class II Division 2, Class I Zone 1
• Ingress protection (IP) ratings : IP66
• Enclosure size : 20" x 20" x 10"
• IECEx/ATEX hazardous rating : IECEx/ATEX NEC/CEC

Product Data

• Dimensions : 20 in x 20 in x 10 in (Length/Depth x Height x Width)
