XENG1491 - Schneider Electric 10A 600V 2NO+1NC Spring Return Contact Block Front Mounting

XENG1491

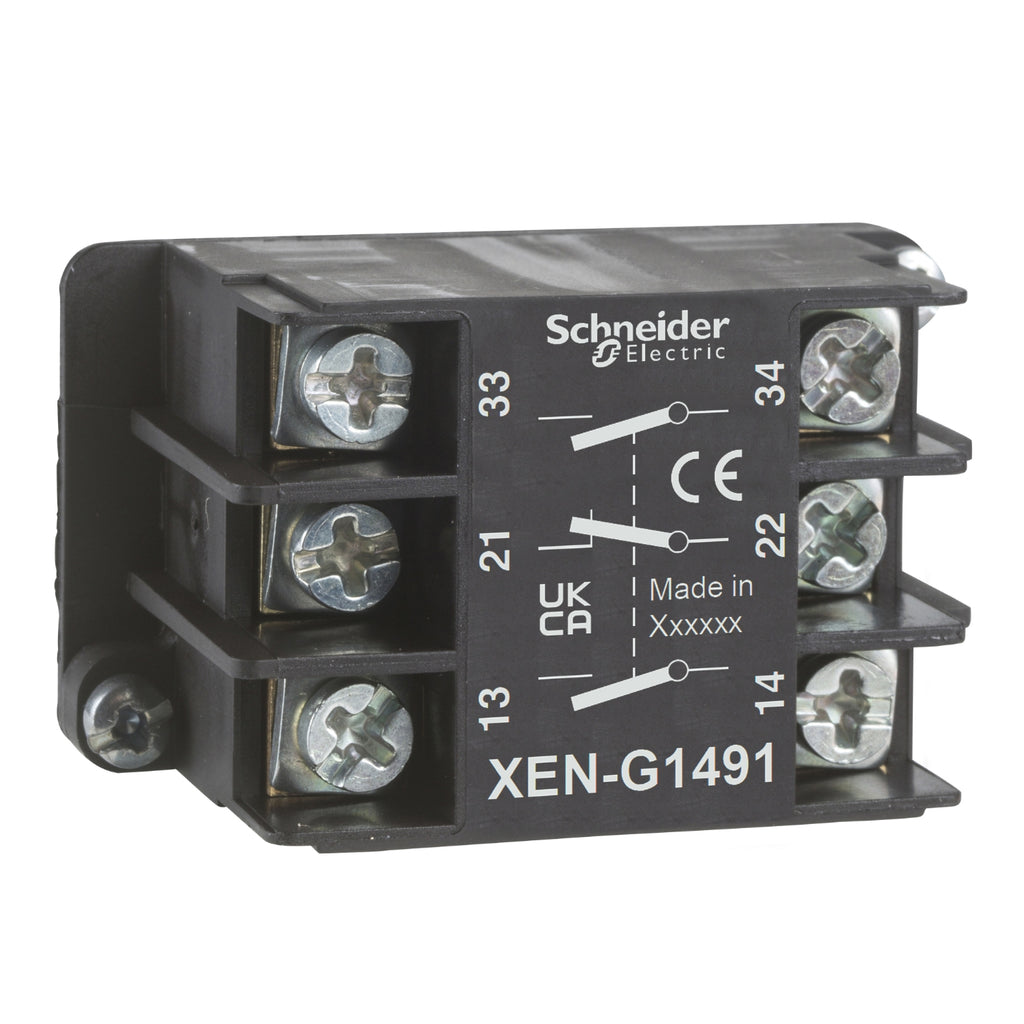

XENG1491 is a Schneider Electric spring return contact block designed for motor control applications with a 10 ampere rating and 600 volt insulation voltage.XENG1491 features a 2 normally open (NO) plus 1 normally closed (NC) contact configuration with simultaneous slow-break operation. It mounts on the front and uses vibration-resistant screw clamp terminals. The contact block supports a thermal current of 10 A, withstands 6 kV impulse voltage, and is rated for 1,000,000 mechanical cycles. It operates reliably in temperatures from -25°C to 70°C and conforms to IEC 60947-1 standards.

Key Specifications
• Amperage: 10 A thermal current
• Voltage: 600 V insulation voltage (pollution degree 3)
• Contact Configuration: 2 NO + 1 NC
• Mounting Type: Front mounting
• Impulse Withstand Voltage: 6 kV
• Terminal Type: Screw clamp, vibration-resistant
• Mechanical Durability: 1,000,000 cycles
• Operating Temperature Range: -25°C to 70°C
• Standards: IEC 60947-1 compliant
• Trip Unit: Spring return, single speed
• Fuse Protection: 10 A cartridge fuse type gG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XENG1491
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory

Product Data

• UPC : 038911064571
• GTIN : 03389110645712
• Country of Origin : Czechia
• Weight : 0.09
• Certification : EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508
