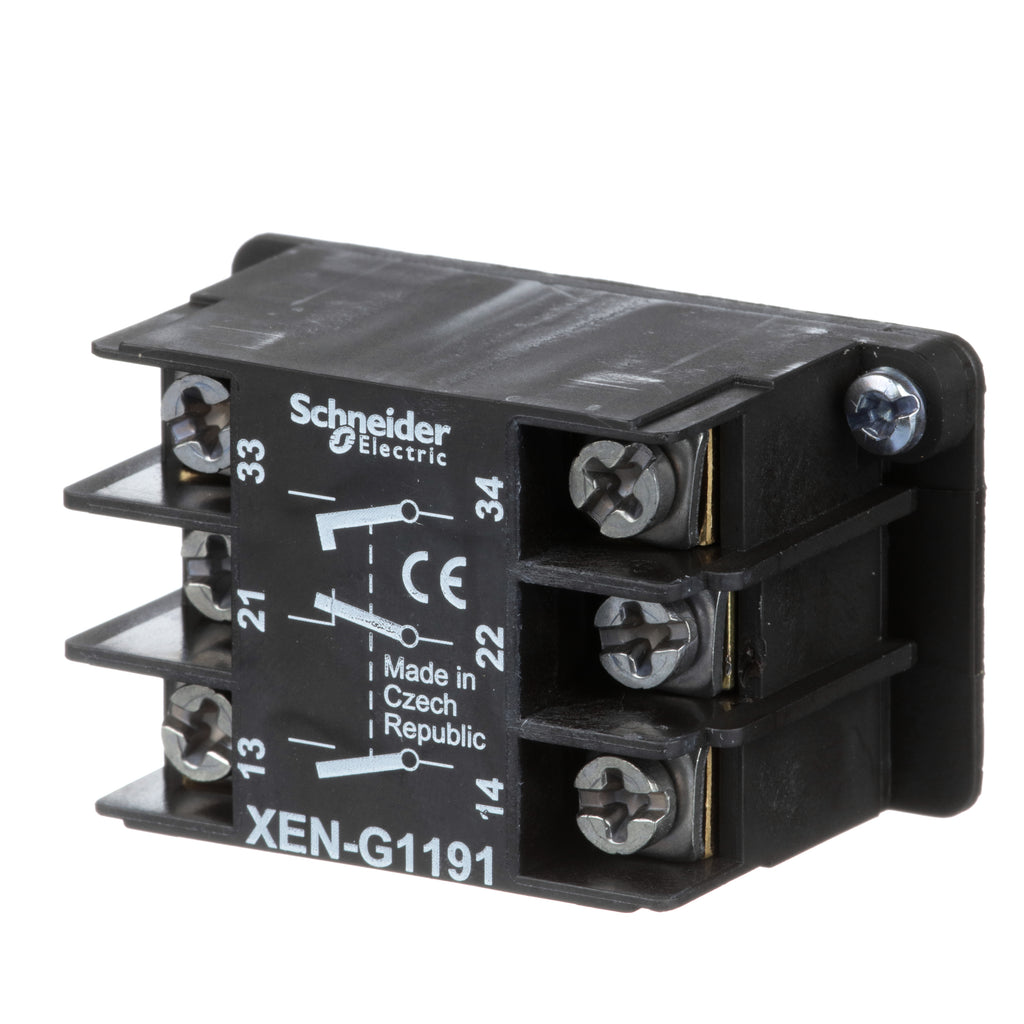

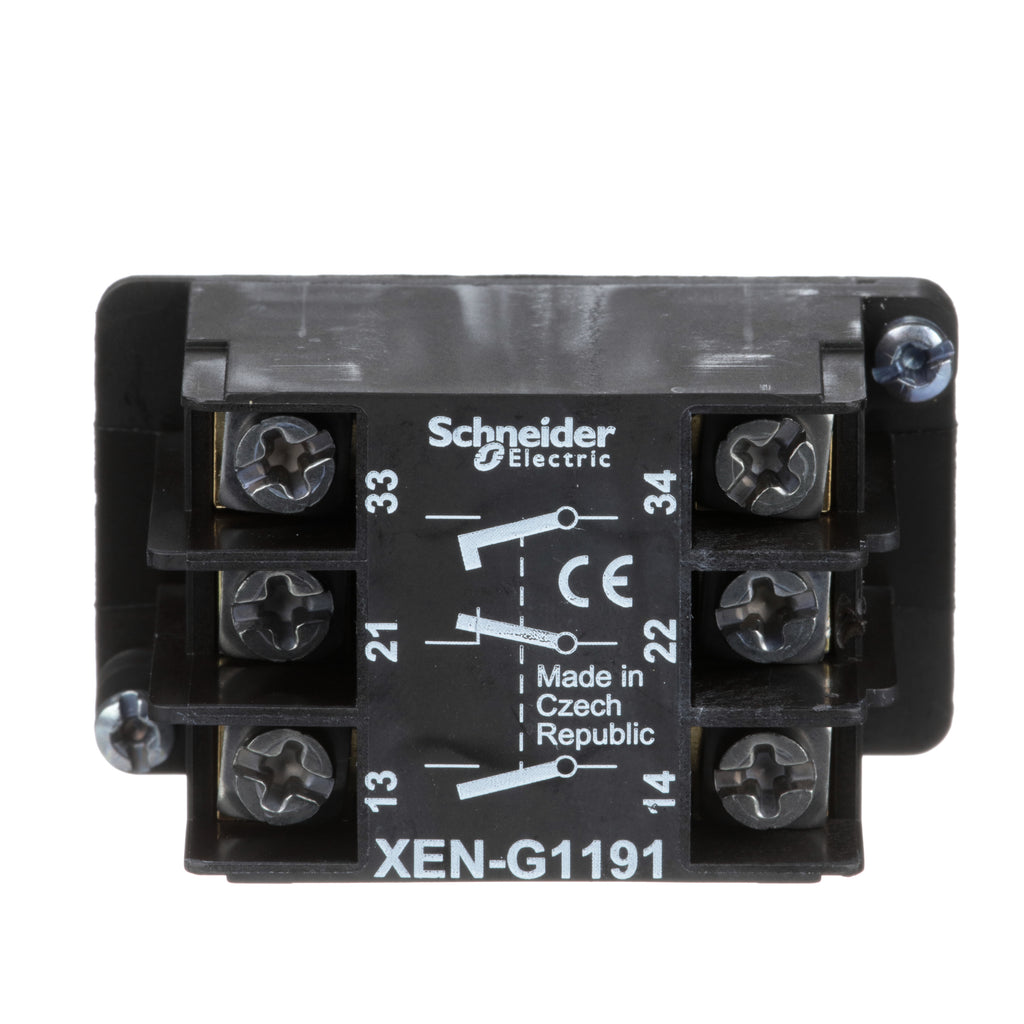

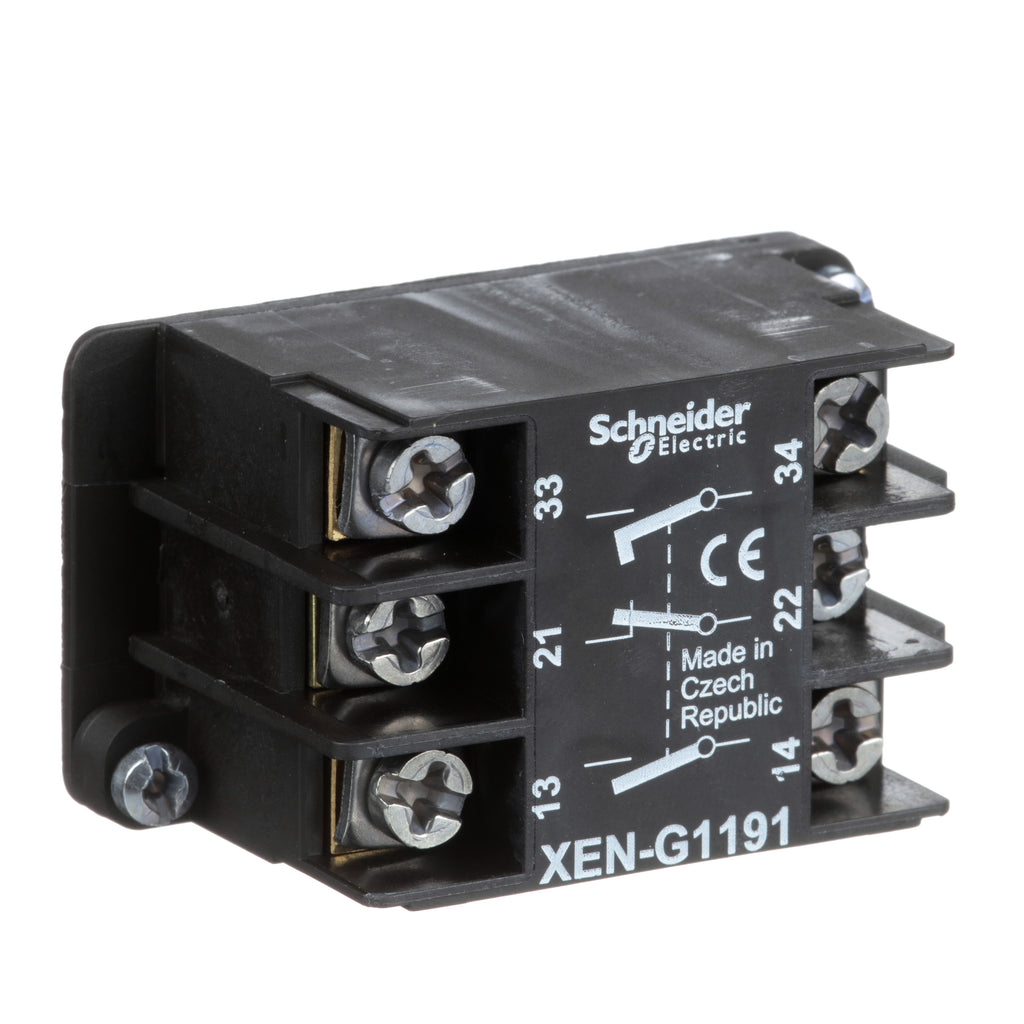

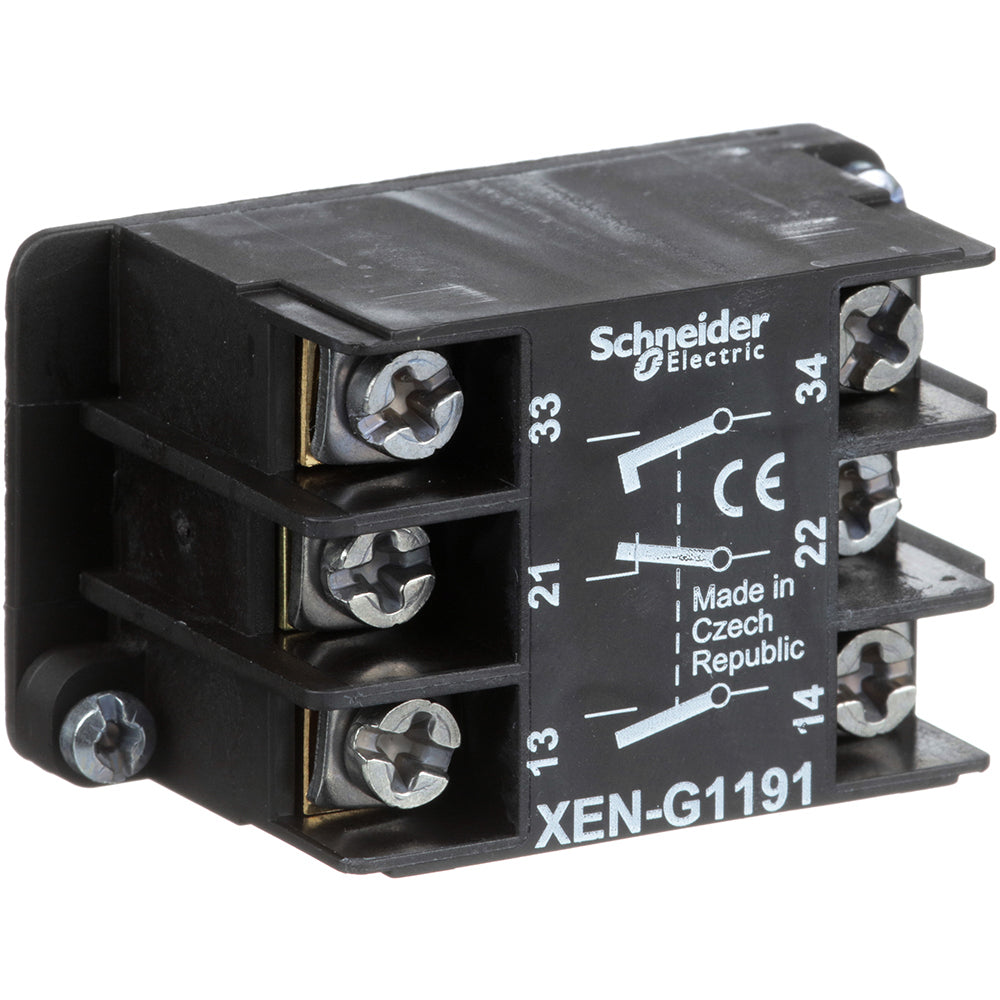

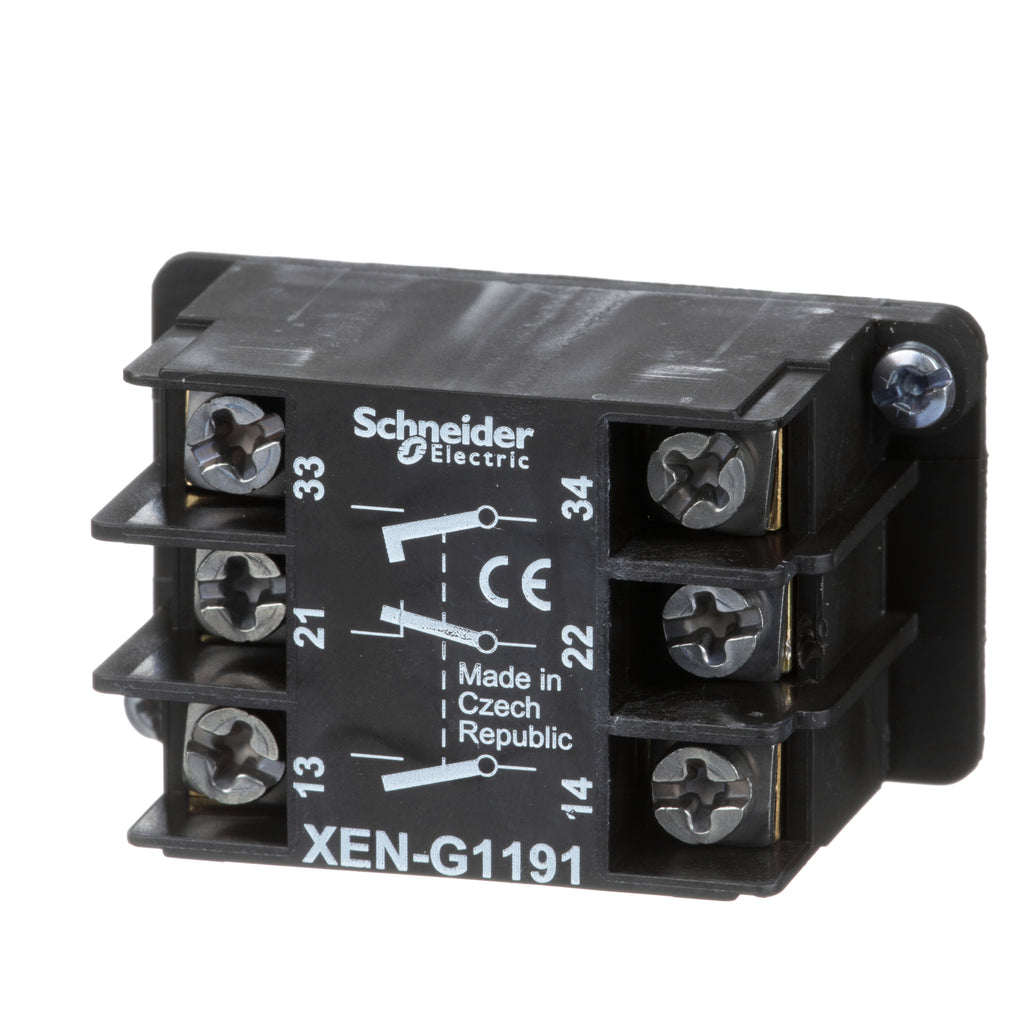

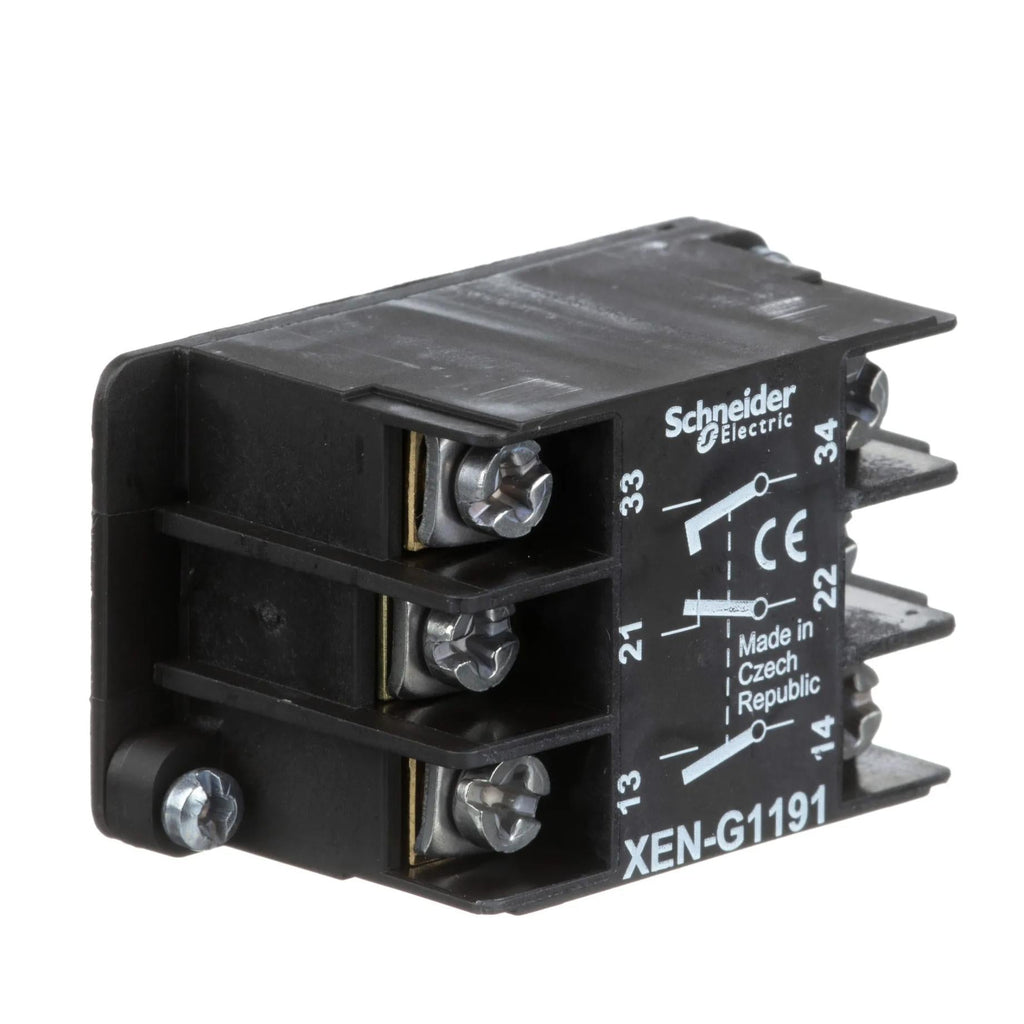

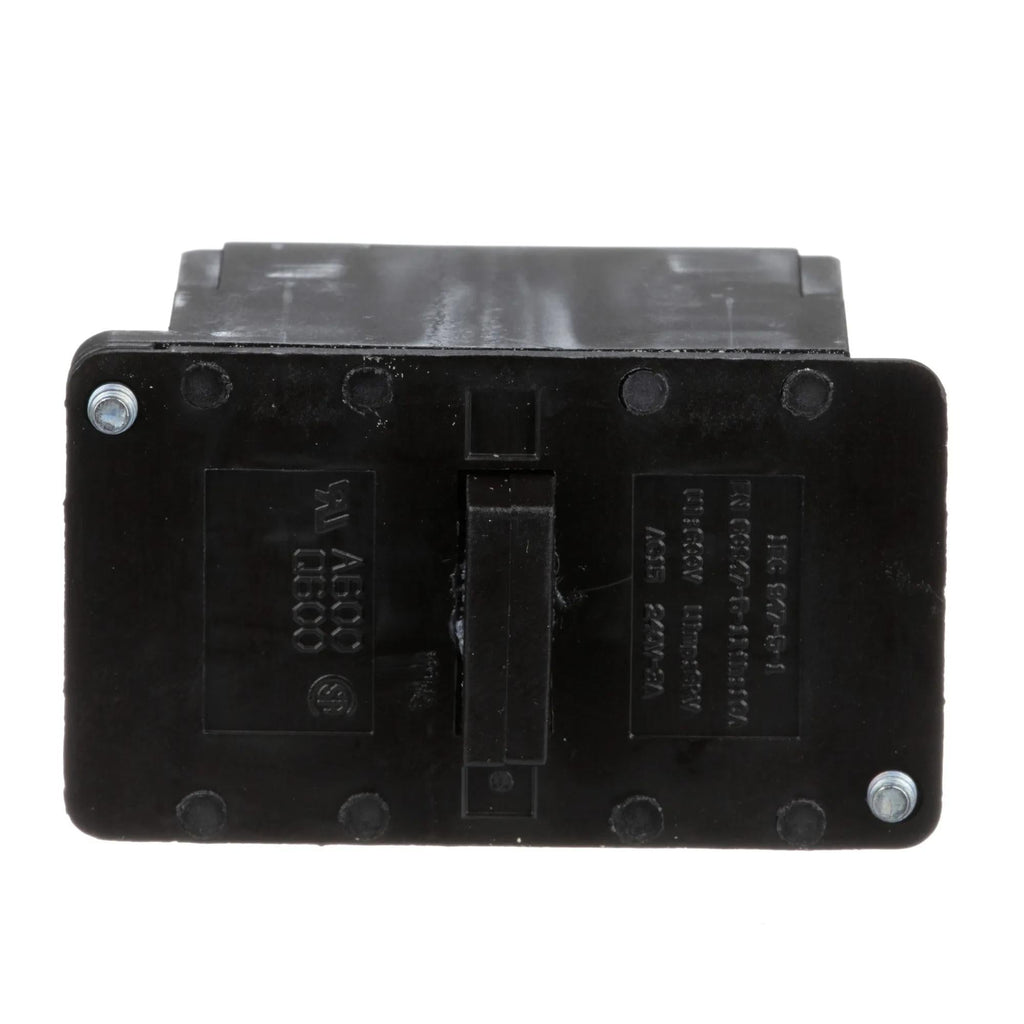

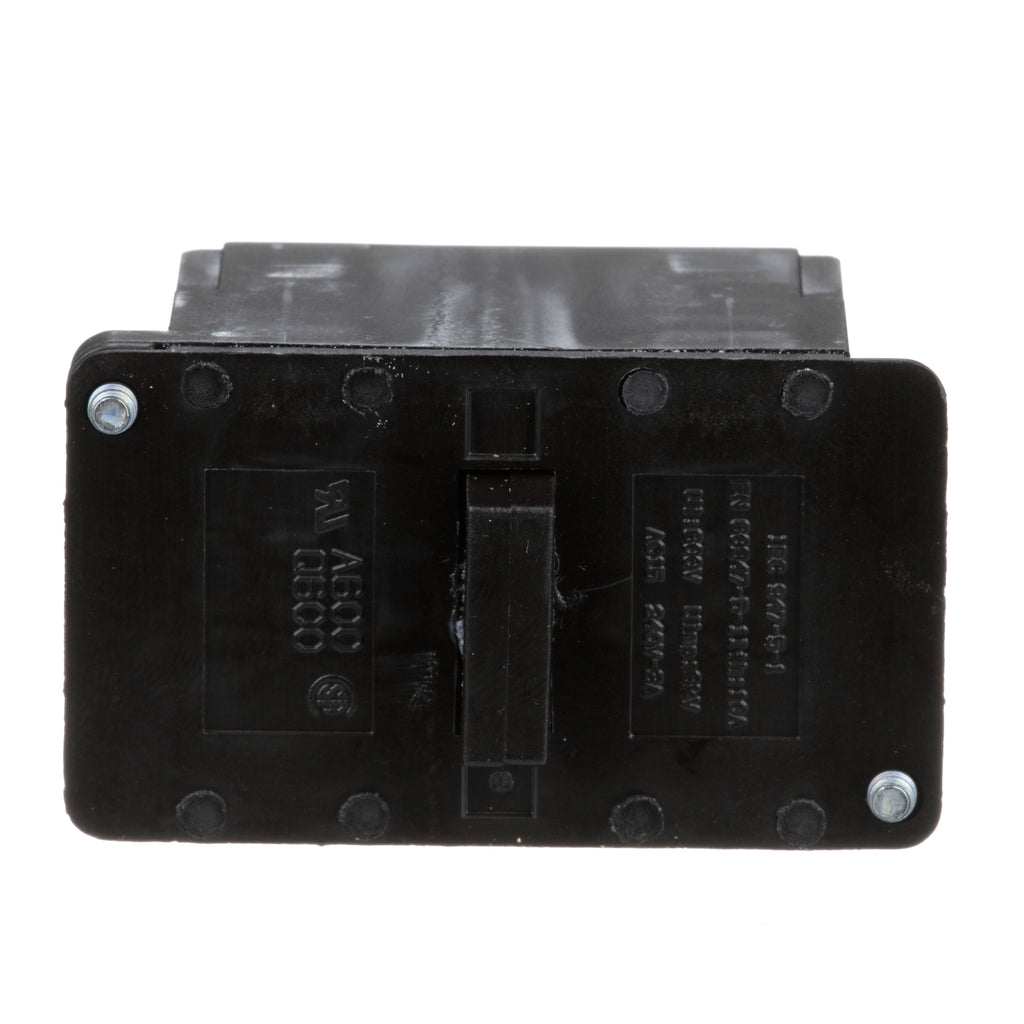

XENG1191 - Schneider Electric 10A 600V 2-Pole 2NO-1NC Spring Return Contact Block

XENG1191

XENG1191 is a Schneider Electric contact block designed for use with Type K/KX/SK pushbutton switches, featuring a 2-pole, 2NO-1NC contact configuration and spring return operation.

This contact block supports a 10 ampere rating at 600 volts AC with slow-break staggered contact operation, screw clamp terminals, and front mounting. It offers high mechanical endurance rated for 1,000,000 cycles and complies with IEC 60947-1 standards including a 6 kV rated impulse withstand voltage. The device operates reliably in temperatures from -40°C to 70°C and features clear labeling and color coding for easy wiring identification.

• Contact Configuration: 2NO-1NC
• Amperage: 10 A
• Voltage Rating: 600 V AC
• Poles: 2
• Mounting Type: Front Mounting
• Terminal Type: Screw Clamp
• Operation: Spring Return, Slow-Break Contacts
• Mechanical Endurance: 1,000,000 cycles
• Rated Impulse Withstand Voltage: 6 kV (IEC 60947-1)
• Operating Temperature Range: -40°C to 70°C
• For Use With: Type K/KX/SK Pushbutton Switches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XENG1191
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Switch
• Item Subcategory : Parts & Accessories
• Section : Contact Blocks
• Type : Modular Contact Block Series
• Voltage : 600
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 38911064570
• GTIN : 03389110645705
• Country of Origin : Czechia
• Weight : 0.093 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA C22.2 No.14, EN/IEC 60947-5-1, UL 508
