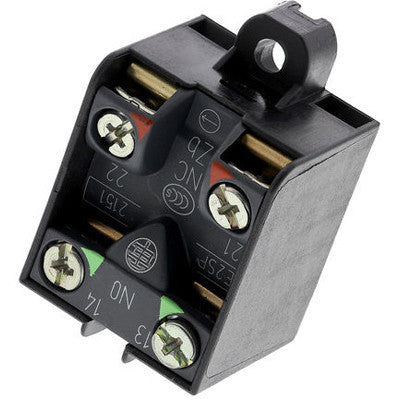

XE2SP2151 - Telemecanique 2-Pole Limit Switch Contact Block 10A 600VAC Snap Action

XE2SP2151

XE2SP2151 is a Telemecanique 2-pole limit switch contact block with snap action designed for motor control applications.This contact block features 1 normally open (NO) and 1 normally closed (NC) silver-plated contacts, rated for 10 A at 600 VAC and 10/3 A at 250 VAC/240 VDC. It has a snap action mechanism with break-before-make operation, a minimum actuation speed of 0.01 mm/sec, and a resistance across terminals of less than 25 mOhm. The device is rated for 5,000,000 operating cycles and is compatible with various Telemecanique limit switch series including XCKJ, XCKM, XCKL, XCKD, XCR, XCKP, and XCKS. It uses screw clamp terminals for secure connections and meets standards including CSA, UL, and IEC 60947-5-1.

Key Specifications
• Part Number: XE2SP2151
• Manufacturer: Telemecanique
• Contact Configuration: 1NO + 1NC
• Number of Poles: 2
• Contact Rating: 10 A at 600 VAC, 10/3 A at 250 VAC/240 VDC
• Contact Material: Silver-plated
• Minimum Actuation Speed: 0.01 mm/sec
• Resistance Across Terminals: <25 mOhm
• Operating Cycles: 5,000,000
• Terminal Type: Screw Clamp
• Standards: CSA, UL Listed, IEC 60947-5-1
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: XE2SP2151
• Manufacturer : Telemecanique
• Brand : Telemecanique
• Category : Motor Control
• Item Subcategory : Contactor And Motor Starter Auxiliary
• Temp Rating : -13–158 °F (-25–70 °C)



Product Data

• UPC : 038911019296
• GTIN : 03389110192964
• Country of Origin : France
• Weight : 0.8
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA, EC947-5-2, UL Listed, VDE 0660
