XD5PA24 - Square D Joystick Controller 22mm 4-Direction Spring Return 1NO per Direction

XD5PA24

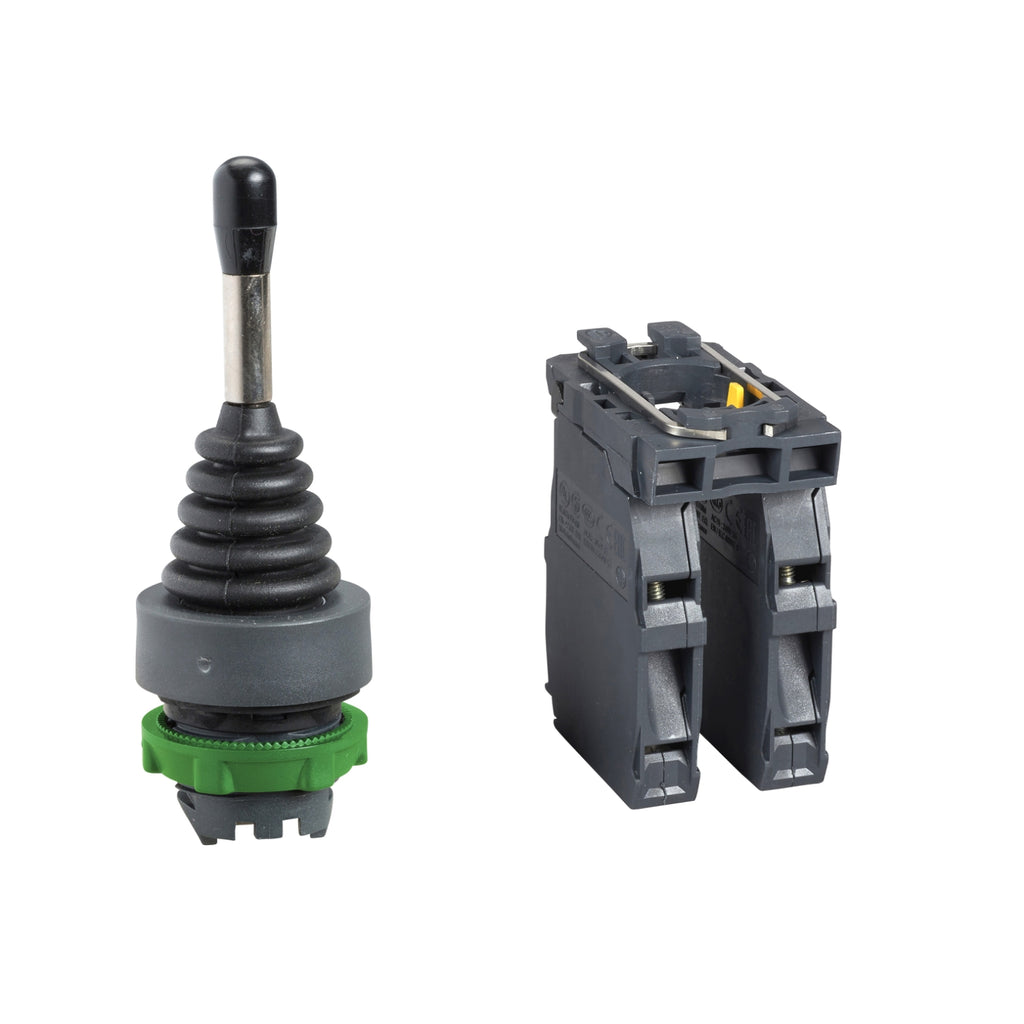

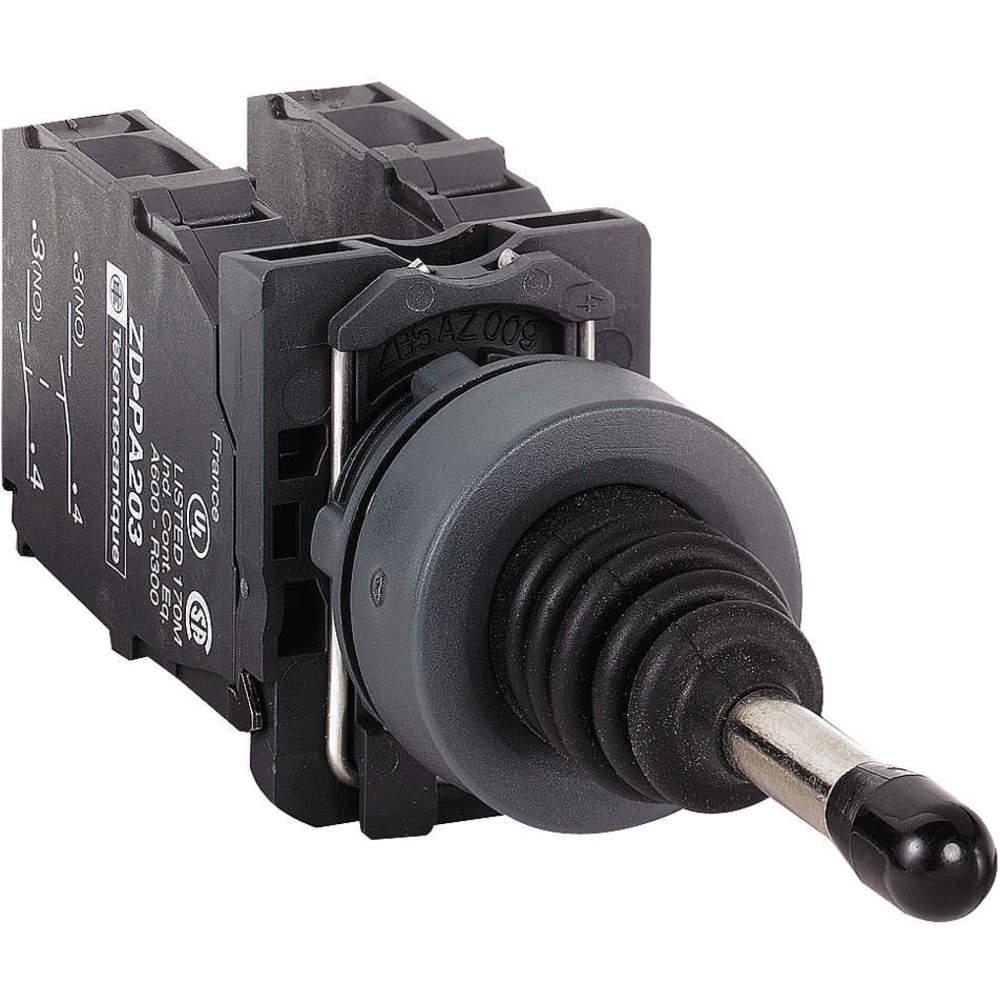

XD5PA24 is a Square D joystick controller designed for panel mounting with a 22mm diameter and 4-direction spring return operation featuring 1 normally open (1NO) contact per direction.This joystick controller is part of the Harmony XB5 series, featuring a 54 mm long plastic round operating shaft and slow-break contact operation. It includes silver alloy (Ag/Ni) contacts with screw clamp terminals and is rated IP66 for protection against dust and water. The device supports 5 positions with robust construction to withstand harsh environments and offers quick and easy assembly and disassembly.

Key Specifications
• Manufacturer: Square D (Schneider Electric)
• Type: Joystick Controller
• Diameter: 22 mm
• Operator Profile: 54 mm long plastic round shaft
• Contact Configuration: 1 Normally Open (1NO) per direction
• Operation: Spring return, slow-break
• Contact Material: Silver alloy (Ag/Ni)
• Terminal Type: Screw clamp
• Positions: 5 positions (4 directions plus center)
• IP Rating: IP66
• Series: Harmony XB5

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XD5PA24
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Switch
• Item Subcategory : Parts & Accessories
• Section : Joystick
• Compatible Frames : NSXH

Product Data

• UPC : 038911090430
• GTIN : 03389110904307
• Country of Origin : France
• Dimensions : 1.9 in (47 mm) x 1.2 in (30 mm) x 5.2 in (132 mm) (Height x Width x Depth)
• Weight : 0.179
• Certification : China RoHS, EU RoHS, REACH, WEEE
