Product Info
- Manufacturer:Telemecanique
- Sub-Category:Limit Switch
Description
XCMD2102L5

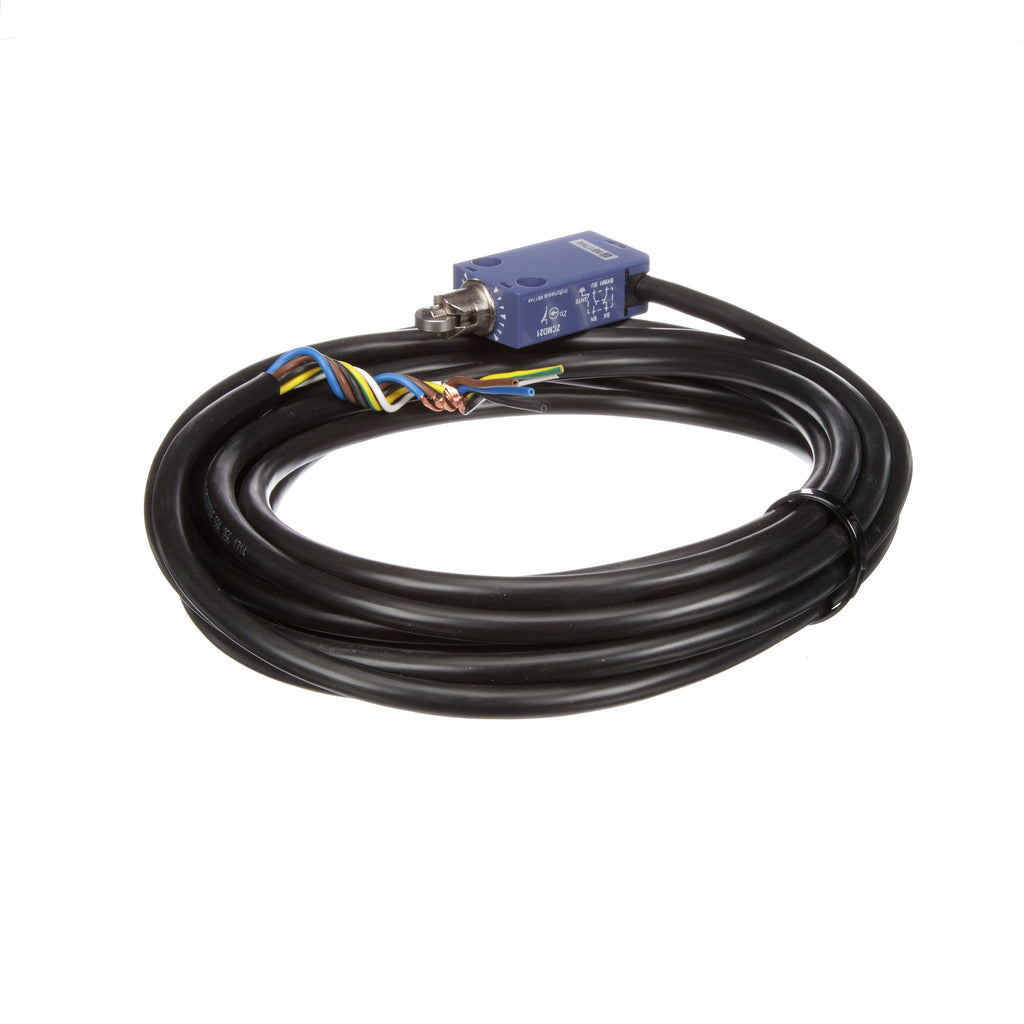

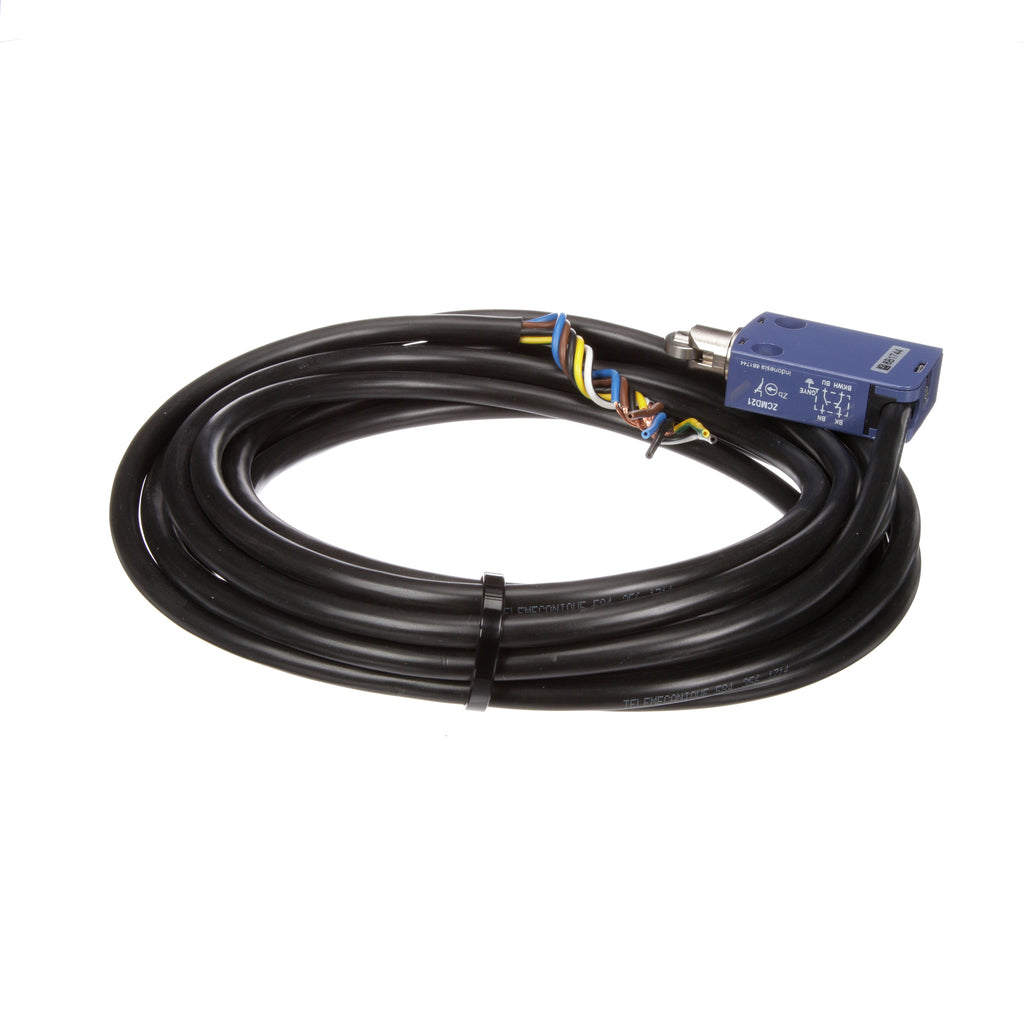

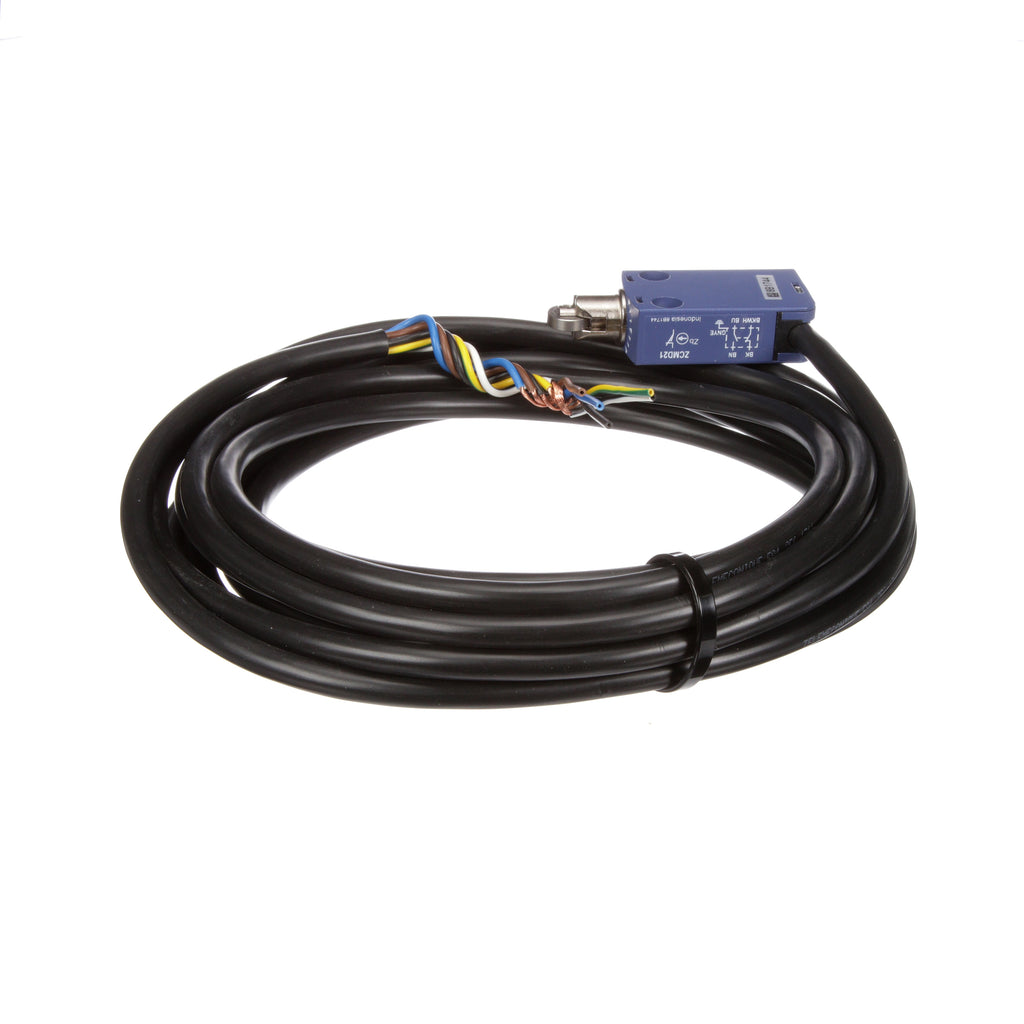

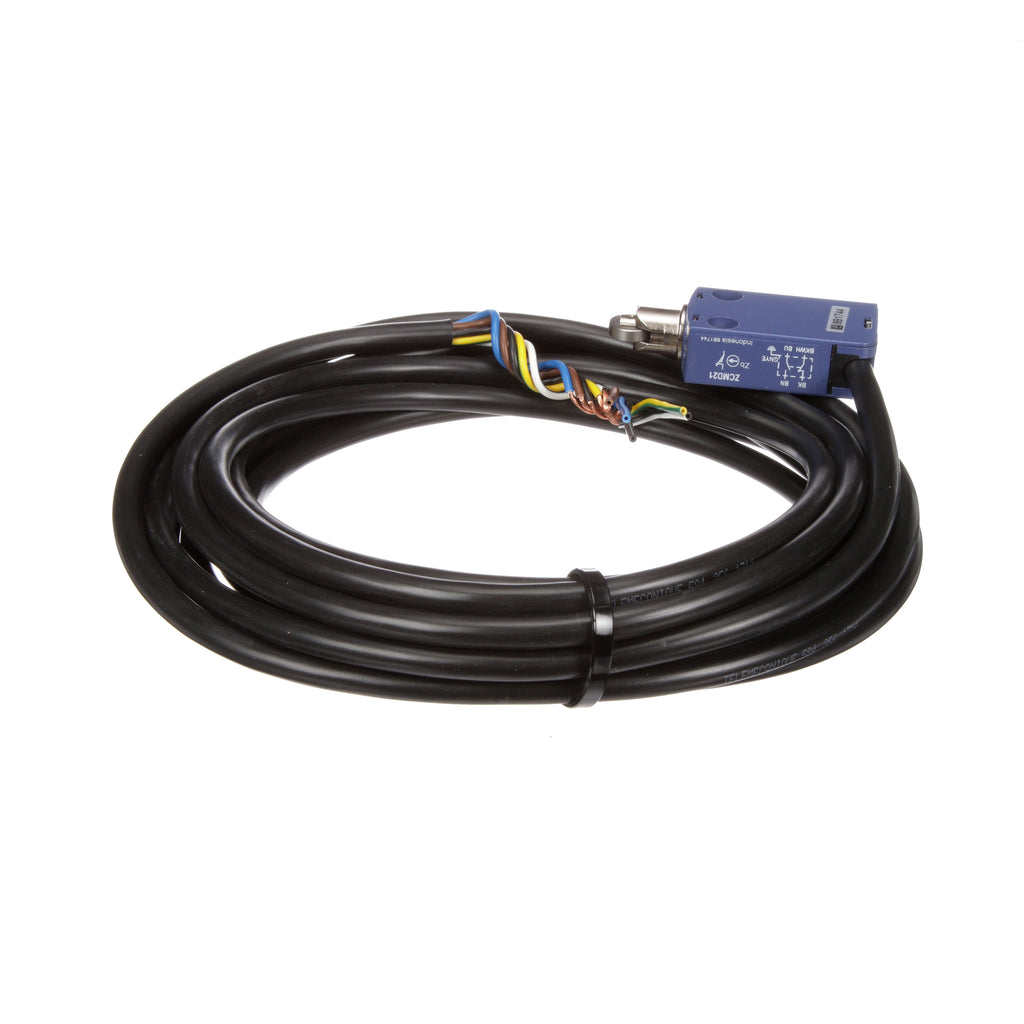

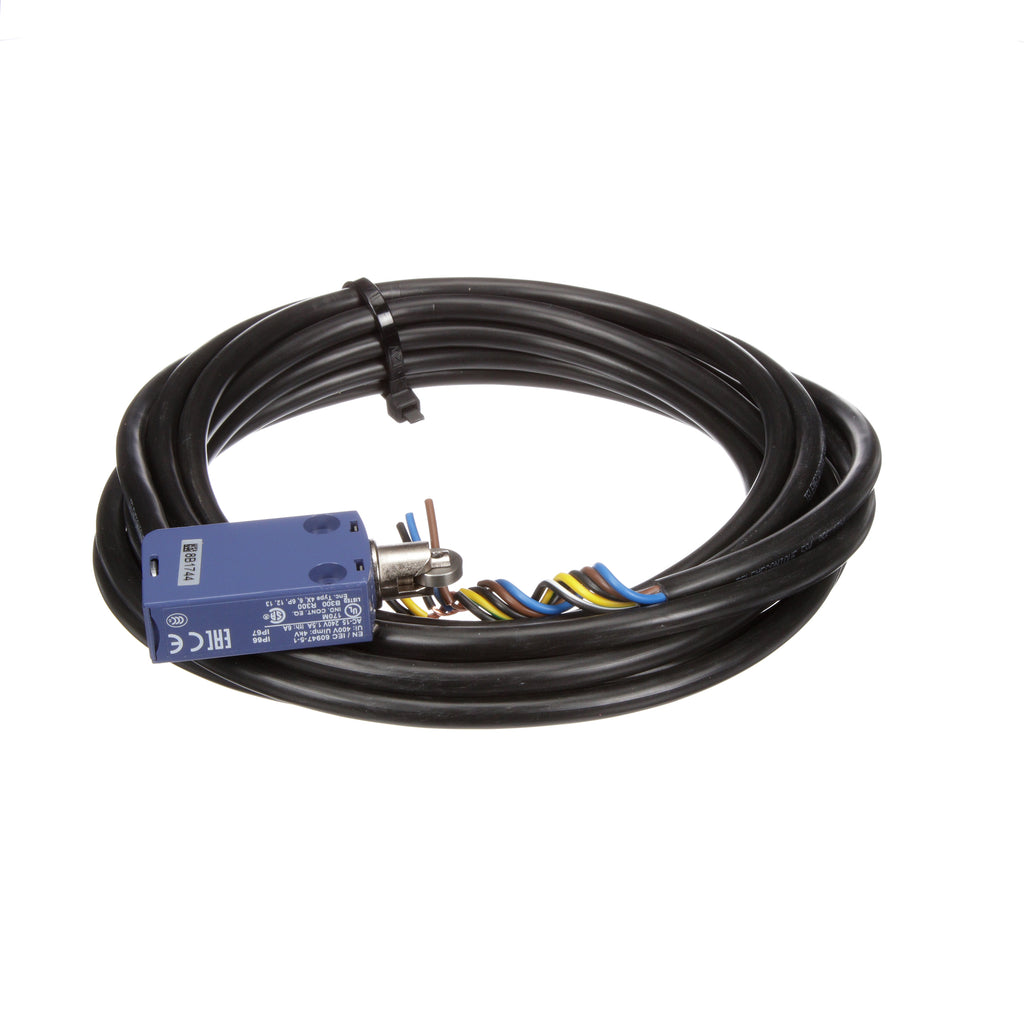

XCMD2102L5 is a Telemecanique roller plunger limit switch featuring a fixed body and snap action contacts for reliable operation.This miniature limit switch from the OsiSense XC Standard series includes a steel roller plunger actuator with 1 normally closed (NC) and 1 normally open (NO) contact configuration. It offers a 30° cam actuation angle and is designed for lateral approach in two directions with a minimum tripping force of 7 N. The switch has a removable cable connector with 5 x 0.75 mm² PvR insulated wires and is rated for ingress protection IP66, IP67, and IP68, suitable for harsh environments.
- Key Specifications
- Contact Configuration: 1NC + 1NO
- Actuator Type: Steel roller plunger
- Body Type: Fixed, miniature
- Switch Action: Snap action
- Actuation Angle: 30° cam
- Minimum Tripping Force: 7 N
- Cable: Removable connector, 5 x 0.75 mm² PvR insulated wires
- Ingress Protection: IP66, IP67, IP68
- Mounting: Fixed body
- Operating Temperature: Minimum -13°F (-25°C)
- Voltage Rating: Up to 240V AC
- Part Number: XCMD2102L5
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Limit Switch
- Family : XCMD
- Voltage : 240 , 250 DC 300 300
- UPC : 785901269519
- GTIN : 00389110301154
- Country of Origin : Indonesia
- Dimensions : 1.18" x 1.97"
- Weight : 1.1 lb
- Certification : CE, CSA, UL
