Product Info
- Manufacturer:Telemecanique
- Sub-Category:Limit Switch
Description
XCKM115H7

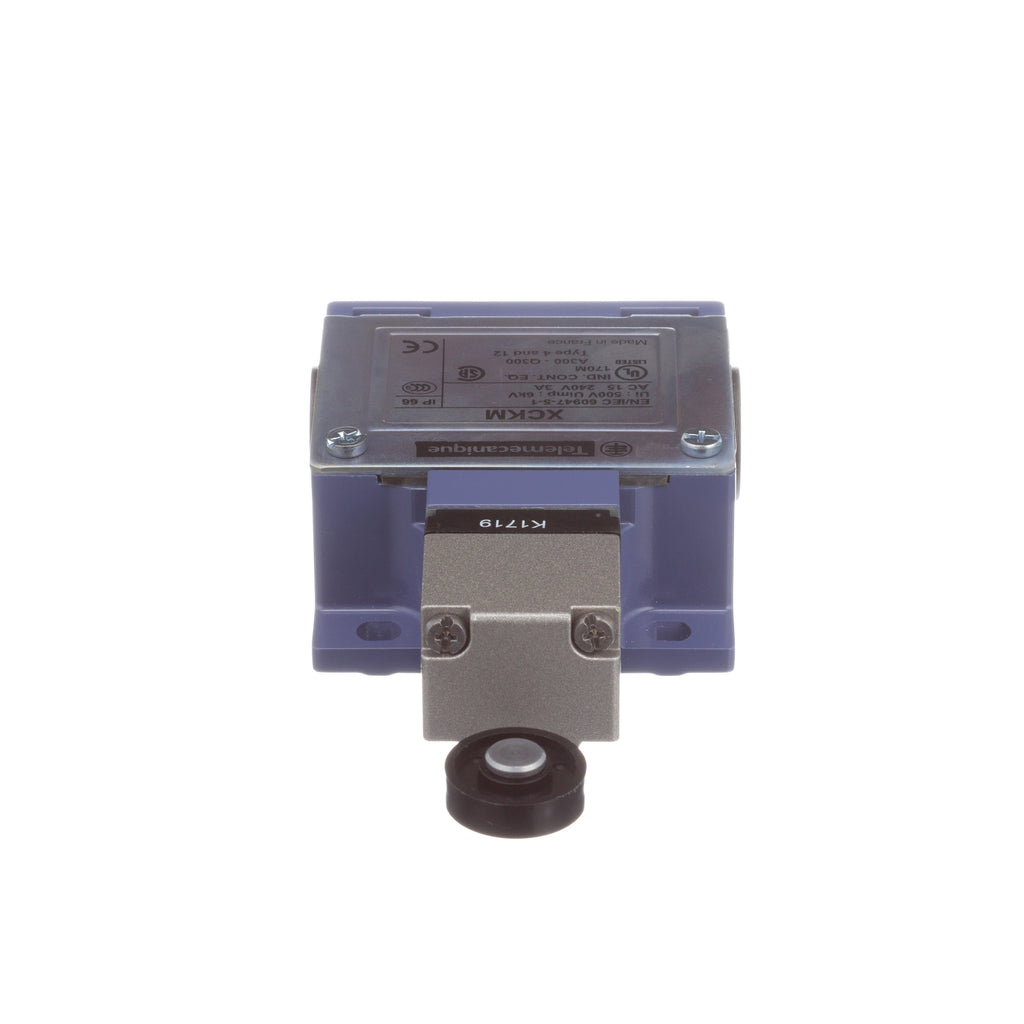

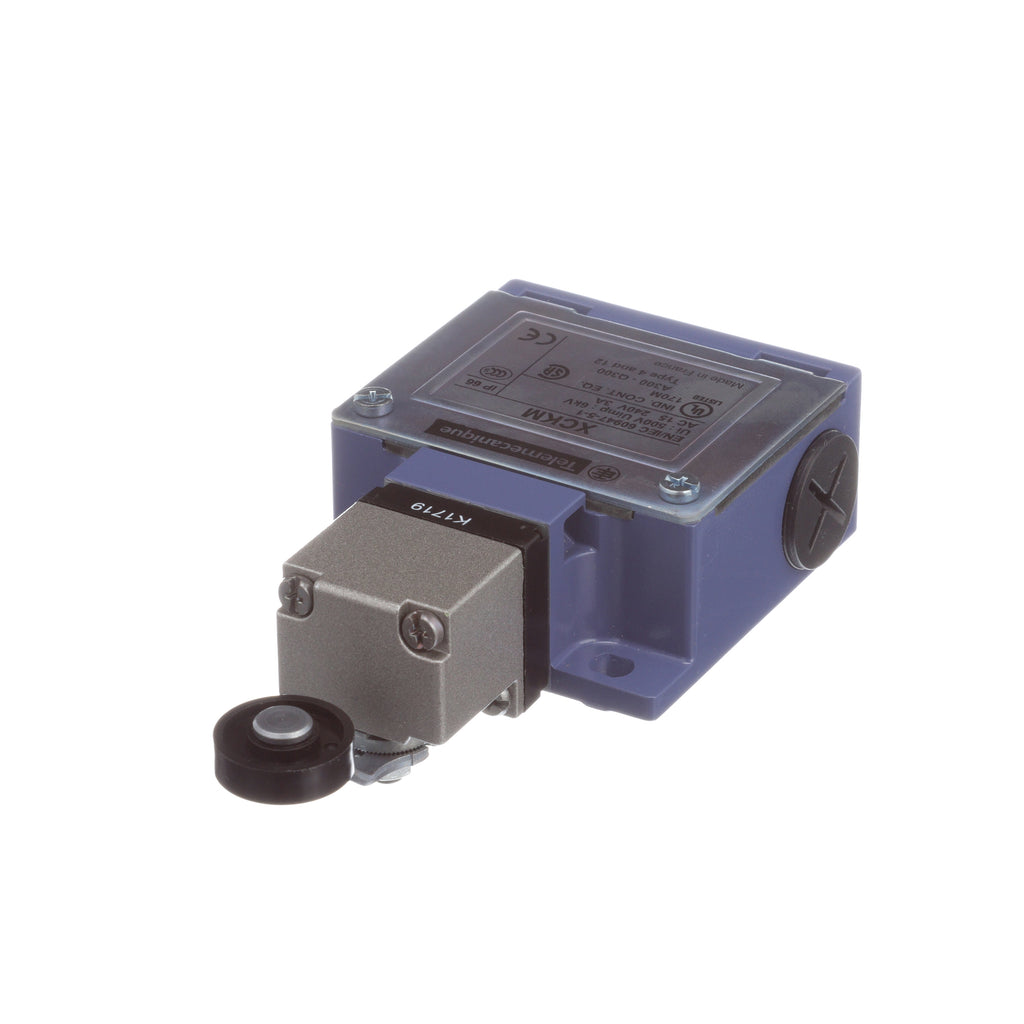

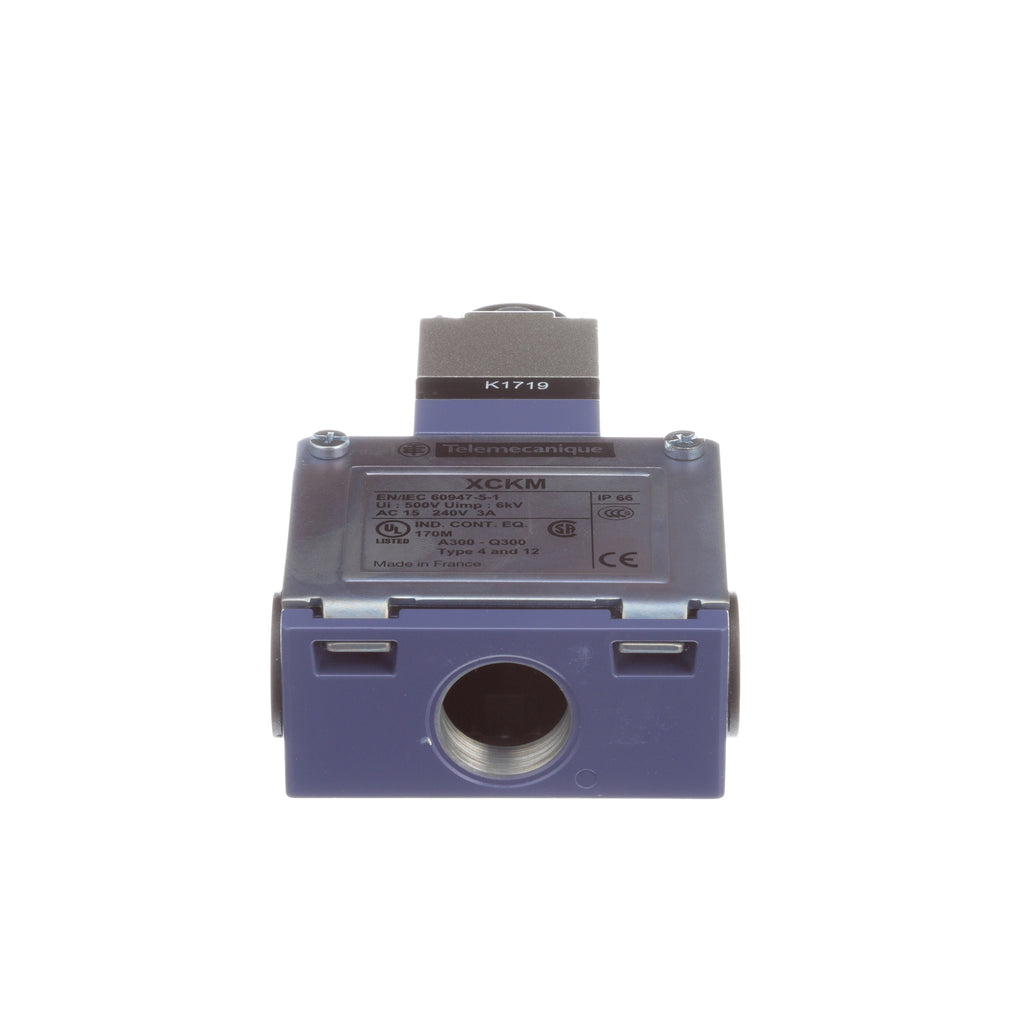

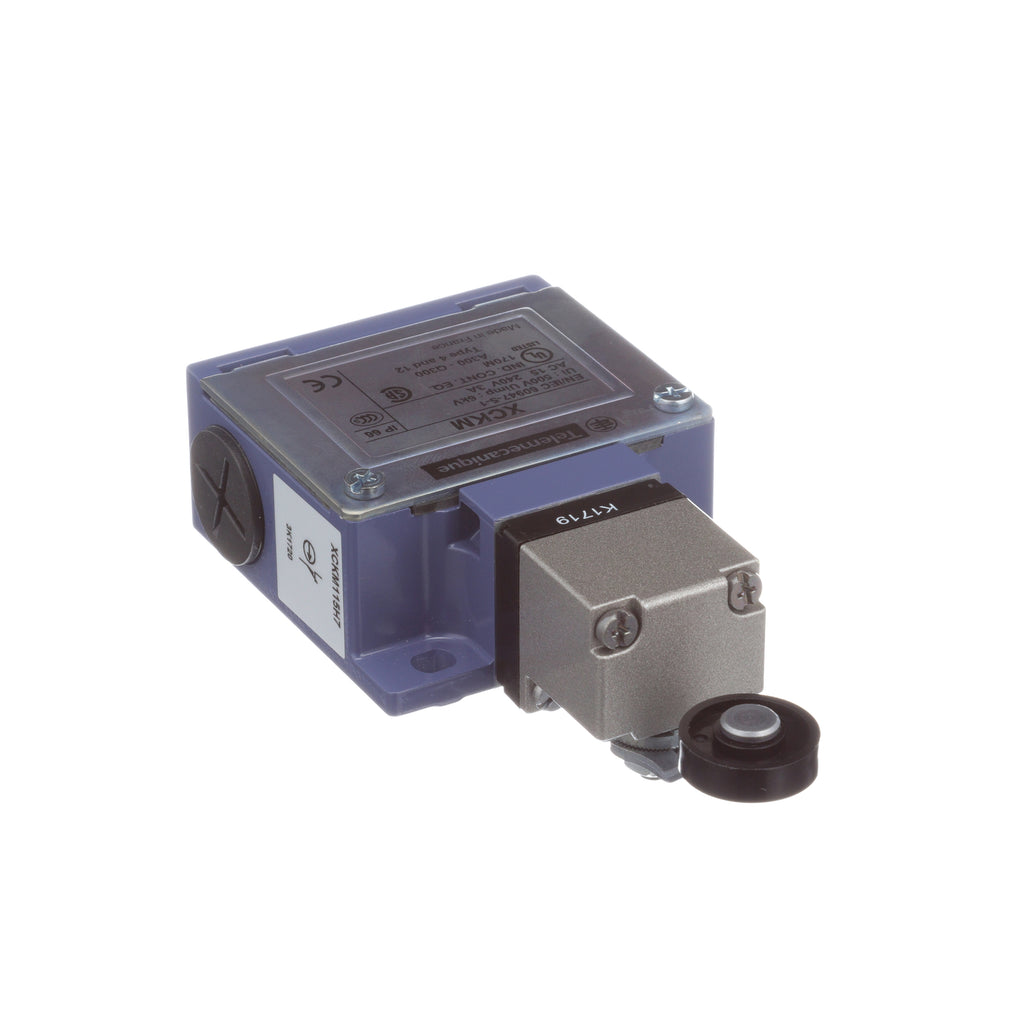

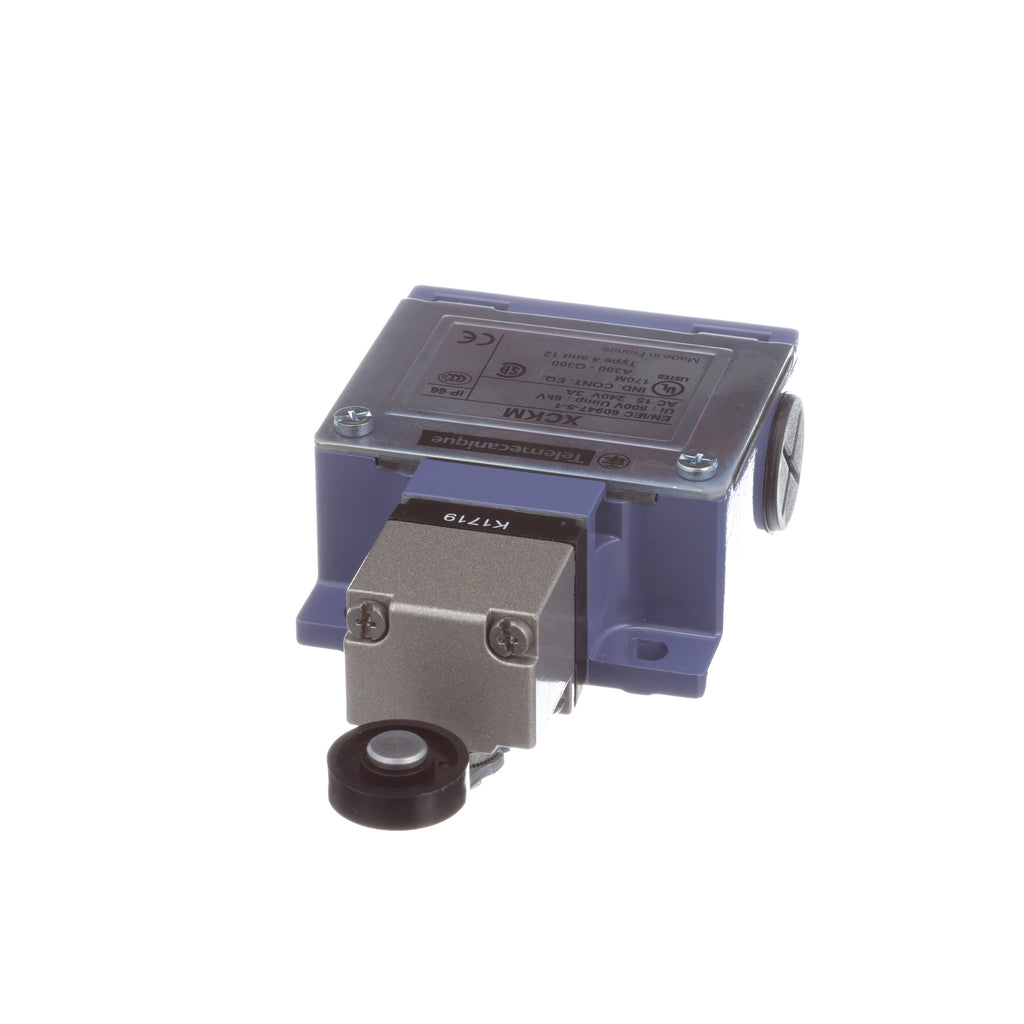

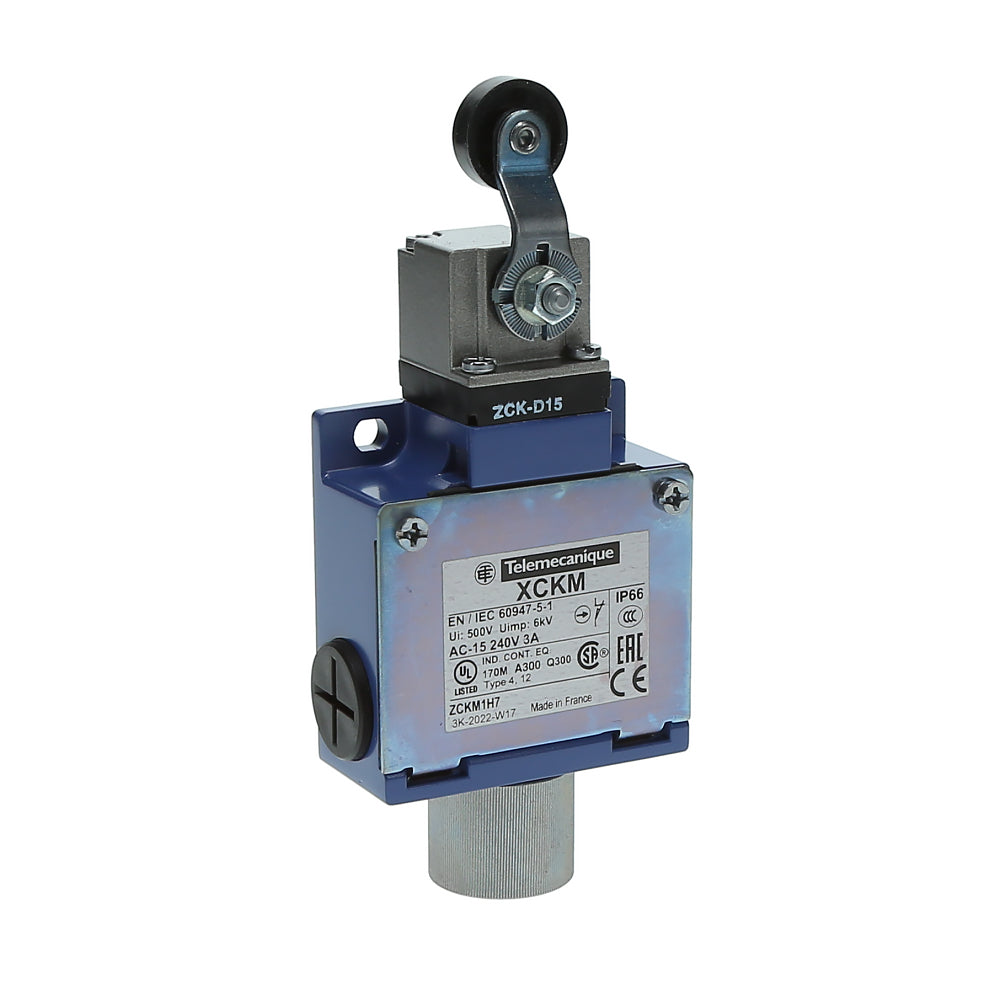

XCKM115H7 is a rotary actuated limit switch by Telemecanique featuring a roller lever actuator and dual snap-action contacts.
This limit switch offers 10 ampere current rating at 240 VAC and 250 VDC, with 2 poles configured as 1 normally closed (NC) and 1 normally open (NO) contact. It uses a 30° cam actuation mechanism and includes screw-clamp terminals for secure wiring. The device has a fixed body with rotary head and is designed for mounting with 1/2" NPT conduit entries. It provides reliable snap-action switching suitable for industrial sensor applications.
- Key Specifications
- Current Rating: 10 A
- Voltage Rating: 240 VAC / 250 VDC
- Contact Configuration: 1 NC + 1 NO (2 poles)
- Actuator Type: Thermoplastic Roller Lever
- Switch Actuation: 30° Cam
- Mounting: Fixed body with rotary head, 1/2" NPT conduit entries
- Terminal Type: Screw-clamp terminals
- Operating Mechanism: Snap-action
- Shock Resistance: 50 gn for 11 ms
- Series: OsiSense XC Standard
- Part Number: XCKM115H7
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Limit Switch
- Family : XCKM
- Voltage : 240 , 250 DC 240 /250 DC
- UPC : 785901187615
- GTIN : 00389110679345
- Country of Origin : France
- Dimensions : 2.52" x 2.50"
- Weight : 0.79 lb
- Certification : CE, CSA, UL
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
