XCE161608N4 - Adalet Explosionproof Control Enclosure 16x16x8 NEMA 4/4X

XCE161608N4

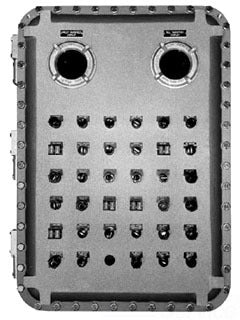

XCE161608N4 is an explosionproof control enclosure designed for hazardous location applications requiring NEMA Type 4 and 4X ratings. This 16 inch width by 16 inch height by 8 inch depth enclosure is constructed from corrosion-resistant, copper-free aluminum alloy containing less than 3/10 of 1% copper, making it suitable for both Division 1 and Division 2 hazardous locations in Class I and Class II environments. The enclosure features a one-piece NEMA 4 watertight gasket, premium high-strength zinc-plated steel cover bolts, internal and external grounding provisions, and cast-on mounting feet with tumblast surface preparation for uniform natural aluminum finish. Design flexibility includes optional aluminum hinge kits with stainless steel hardware, pre-drilled configurations for hinges and sub-panels, window kits, custom machining capabilities, and multiple coating options for enhanced corrosion resistance. The XCE Series is available in 64 standard sizes with options for galvanized steel or aluminum sub-panels, stainless steel cover bolts for NEMA 4X applications, and UL Listed control panel population and wiring services.

• Dimensions: 16 inch Width x 16 inch Height x 8 inch Depth
• Material: Copper-free 359 aluminum alloy
• NEMA Rating: Type 4 and Type 4X
• Gasket: One-piece NEMA 4 watertight silicone or nitrile O-rings
• Cover Bolts: Zinc-plated steel, premium high-strength construction
• Grounding: Internal and external provisions included
• Mounting: Cast-on feet with pre-drilled hinge holes
• Surface Finish: Tumblast preparation for natural aluminum appearance
• Certifications: UL Listed for hazardous locations
• Weight: 20 pounds

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XCE161608N4
• Manufacturer : Adalet
• Brand : Adalet

Product Data

• UPC : 781063906729
• Weight : 163 lb
