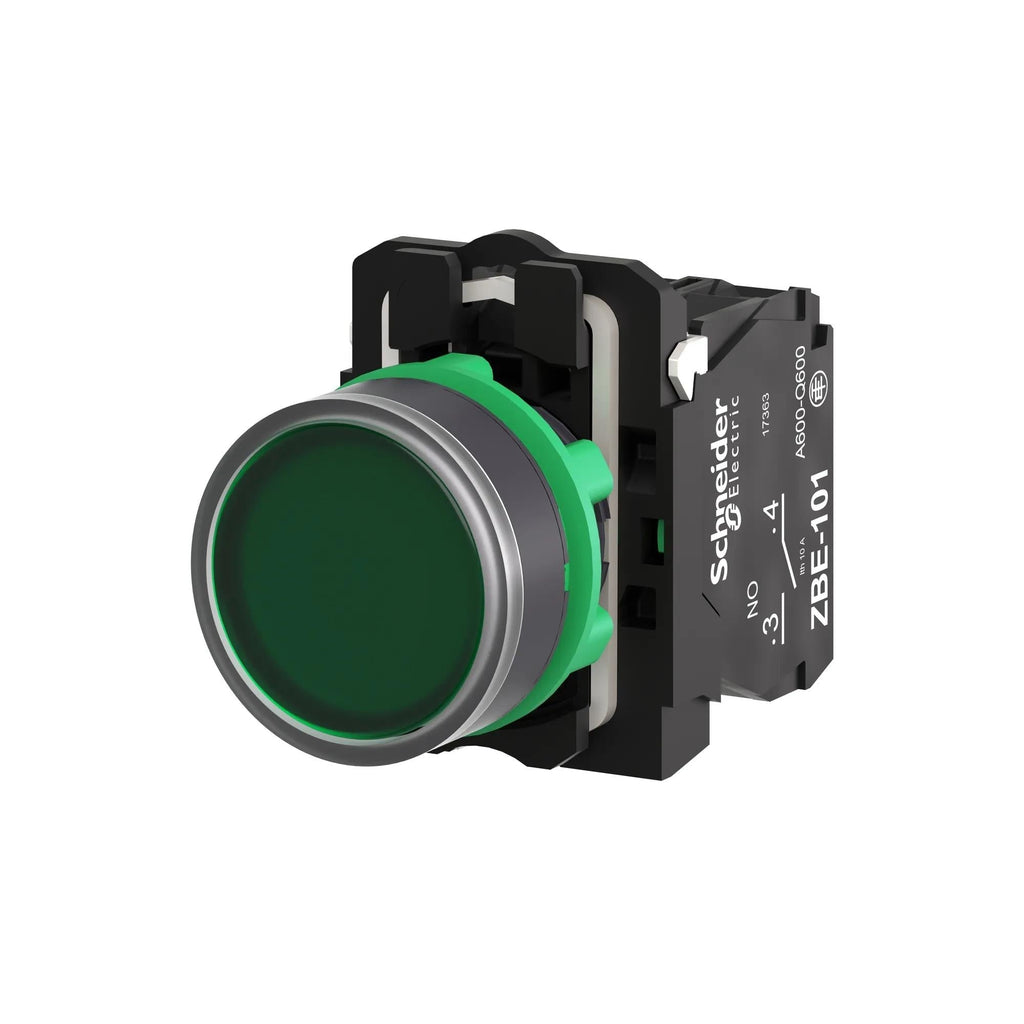

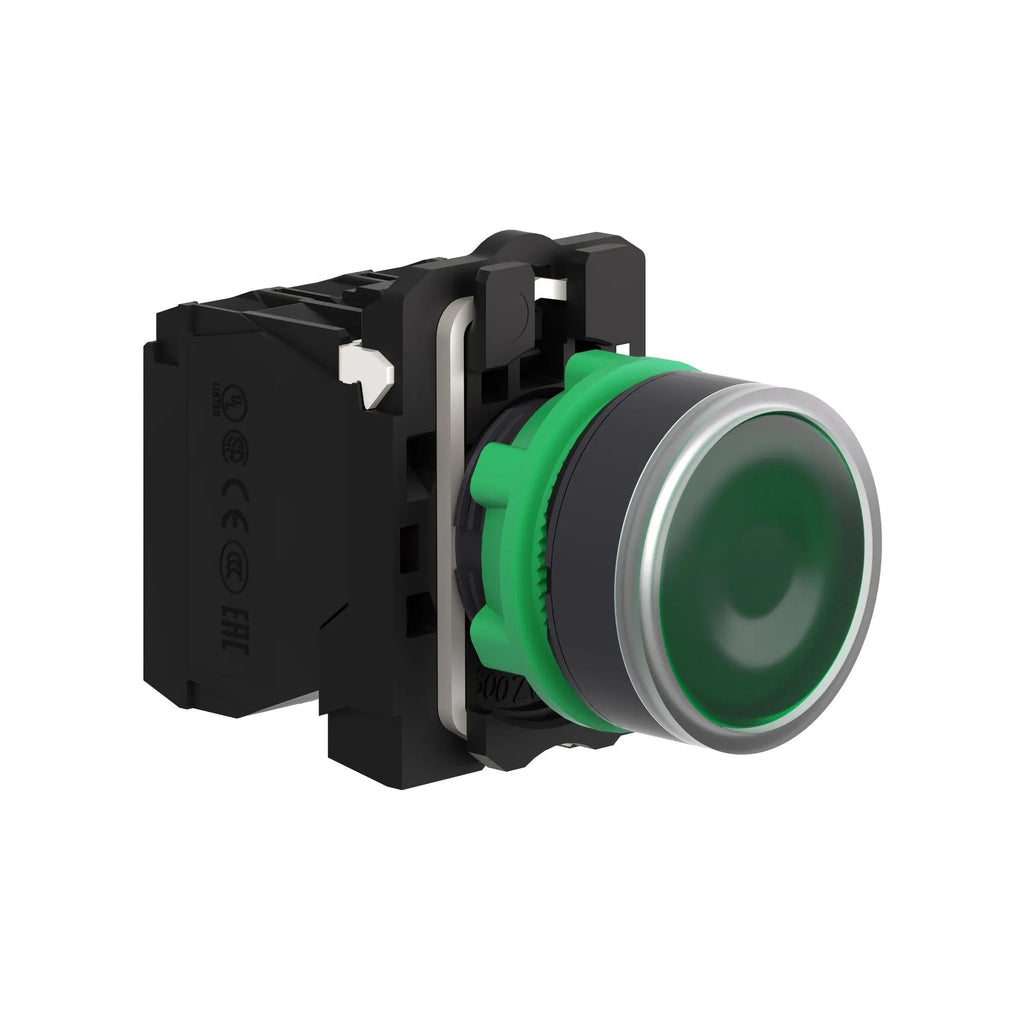

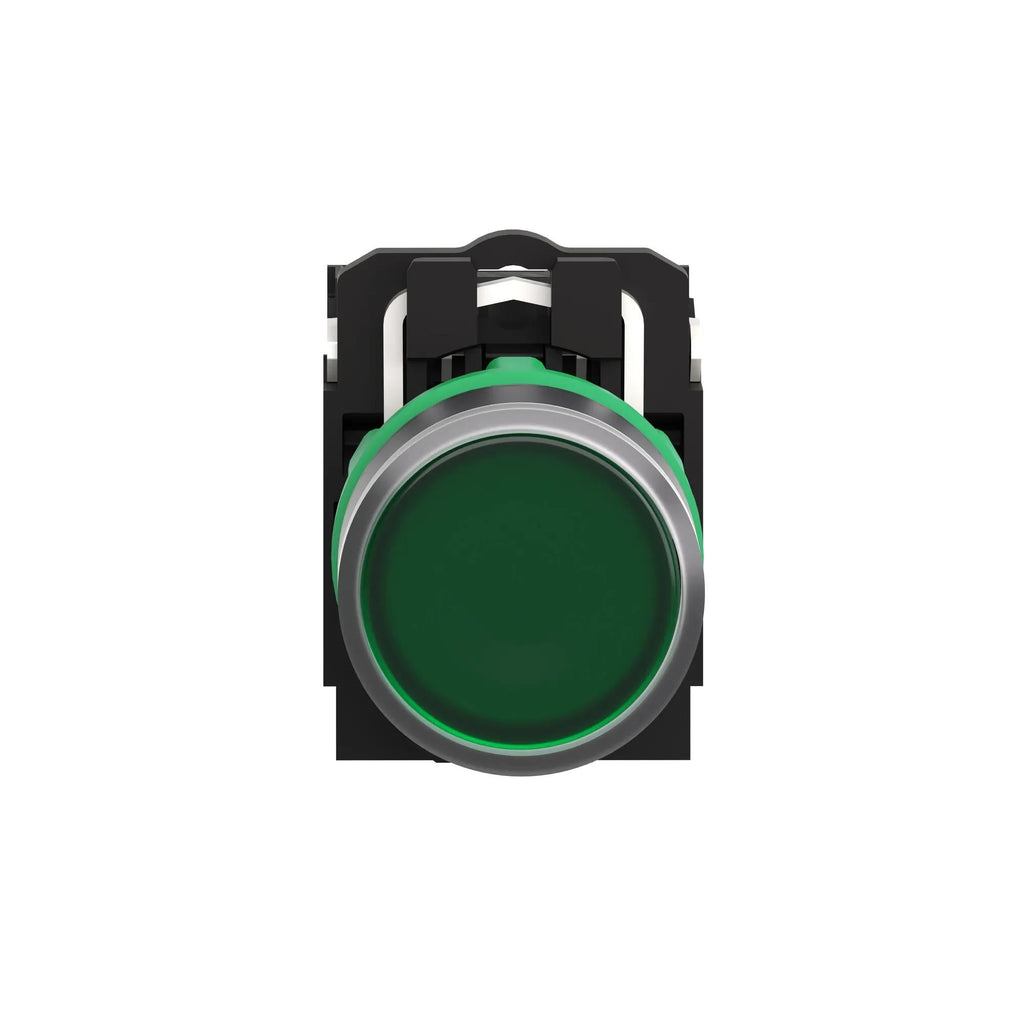

XB5AW33G5 - Schneider Electric Harmony XB5 22mm Round Green Illuminated Push Button 110-120V AC 1NO+1NC Screw Clamp IP69

XB5AW33G5

XB5AW33G5 is a Schneider Electric Harmony XB5 illuminated modular push button designed for motor control applications requiring visual indication and reliable operation. This 22mm round green push button features a spring return mechanism, illuminated LED for clear status indication, and is rated for 110-120V AC. It includes 1 NO + 1 NC screw clamp terminals for secure wiring and is constructed with a dark gray plastic bezel for chemical and impact resistance. The device is suitable for installation in standard 22mm panel cut-outs and is rated IP69 for dust and water resistance, making it ideal for harsh industrial environments.

• Part Number: XB5AW33G5
• Manufacturer: Schneider Electric
• Series: Harmony XB5
• Size: 22 mm
• Shape: Round
• Color: Green
• Mounting Type: Flush
• Actuator Type: Push Button
• Operation: Spring Return

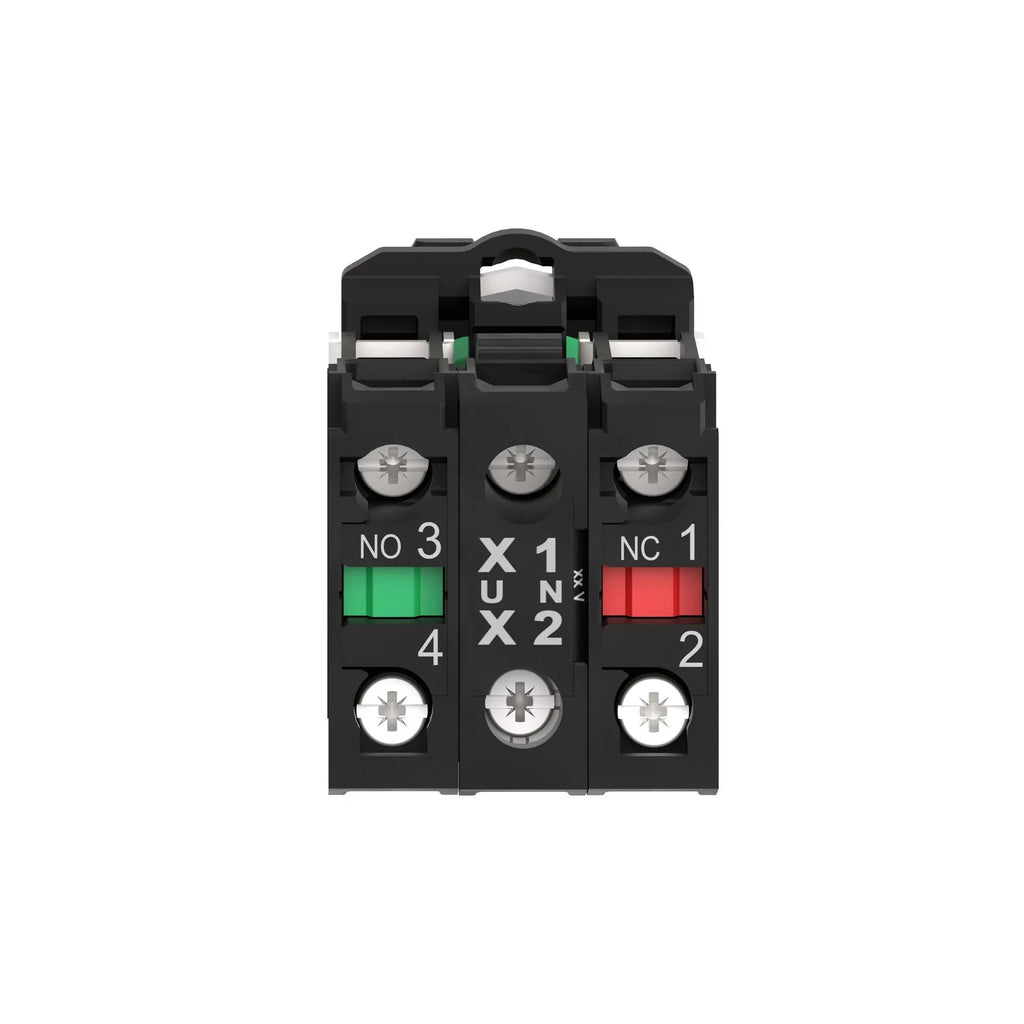

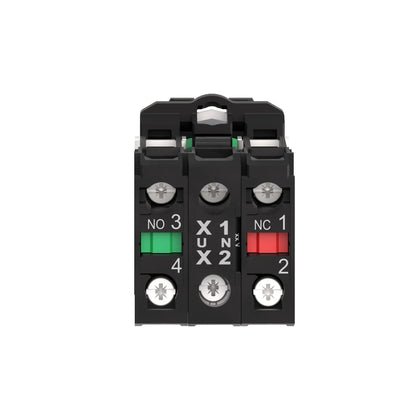

• Contacts: 1 NO + 1 NC
• Terminals: Screw Clamp
• Voltage: 110-120V AC
• Current Rating: 6A AC, 550mA DC
• IP Rating: IP69
• NEMA Rating: NEMA 4X, NEMA 13
• UL Rating: UL 508
• Standards: CSA, EN/IEC 60947-1
• Material: Plastic
• Weight: 0.12 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XB5AW33G5
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Push button switch
• Family : XB5
• Voltage : 110 to 120 AC
• Temp Rating : -13–158 °F (-25–70 °C)
• Aux Contacts : 1NO, 1NC

Product Data

• UPC : 785901384359
• GTIN : 00389110904072
• Country of Origin : France
• Dimensions : 1.7 in (42 mm) x 1.2 in (30 mm) x 2.2 in (57 mm) (Height x Width x Depth)
• Weight : 0.119
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL, CSA, EN, IEC, JIS, LROS, BV, DNV, GL, CCC, EAC, CE
