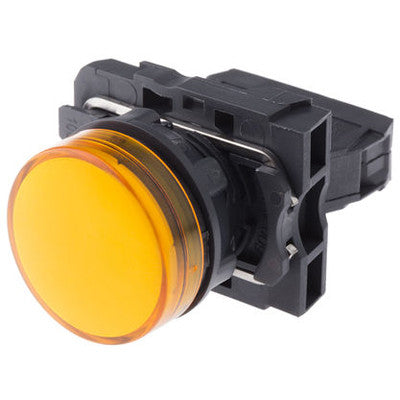

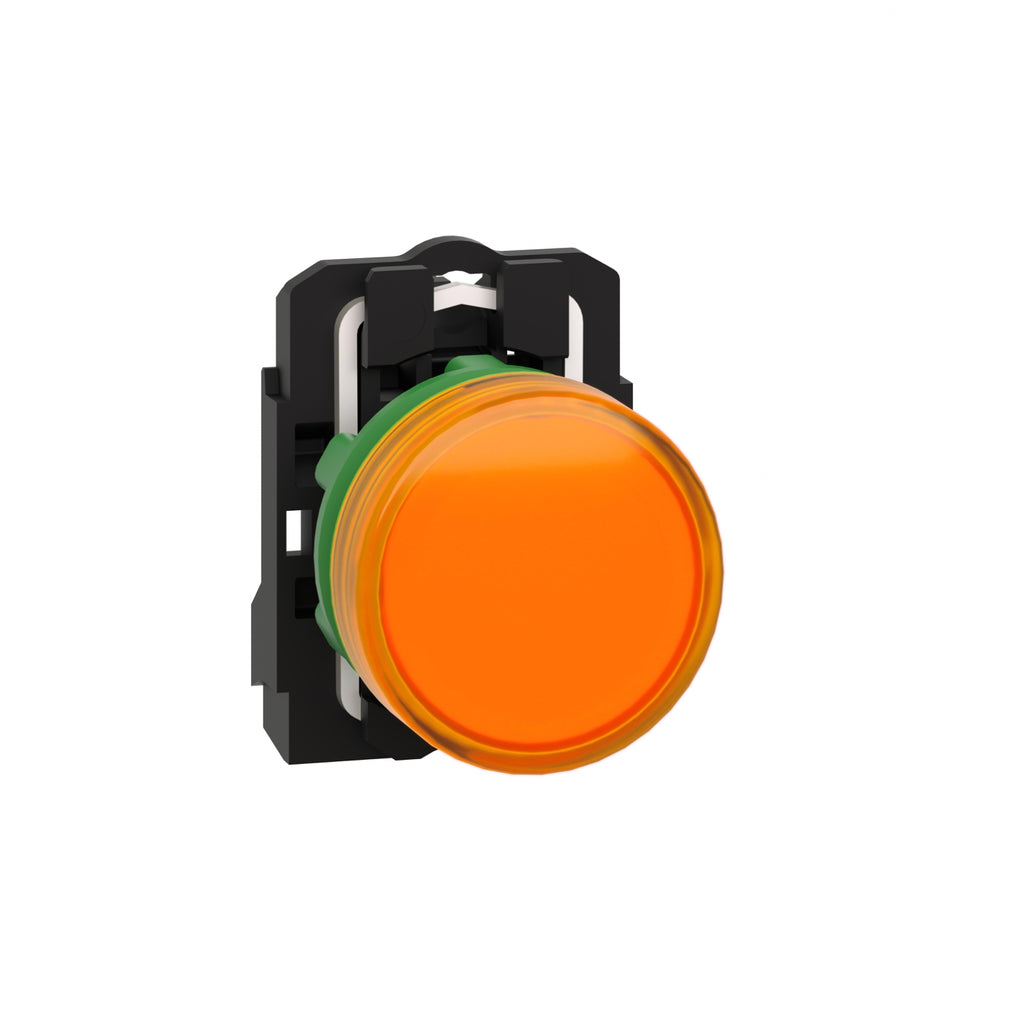

XB5AVB5 - Schneider Electric 24V AC/DC Orange LED Pilot Light, 22mm, IP66/IP67/IP69, Screw Terminal

XB5AVB5

XB5AVB5 is a Schneider Electric 24V AC/DC orange LED pilot light designed for motor control applications with a 22mm mounting hole and robust environmental protection.This pilot light features a universal LED light source with improved color intensity and brightness, suitable for harsh environments. It offers screw terminal connections for secure wiring and is rated for 24V AC/DC operation. The device is built to withstand dust, water, and impact with ingress protection ratings of IP66, IP67, IP69, and IP69K, making it ideal for industrial use. It has a compact round body shape and a plain lens for clear indication.

Key Specifications
• Voltage: 24V AC/DC
• Mounting Hole Diameter: 22mm
• Illumination: Orange LED
• Termination Style: Screw Terminal
• Ingress Protection: IP66, IP67, IP69, IP69K
• Body Shape: Round
• Lens Type: Plain
• Operating Temperature: -25°C to 70°C
• Dimensions: 30 mm x 54 mm x 42 mm
• Weight: 0.06 kg
• Compliance: IEC 61000-4-5 (1 kV surge withstand)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XB5AVB5
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Voltage : 24 AC
• Compatible Frames : AK-1-50,AK-50,AKU-50,AKT-50,AKS-50,AKSU-50,AKST-50

Product Data

• UPC : 038911090379
• GTIN : 03389110903799
• Country of Origin : France
• Dimensions : 1.7 in (42 mm) x 1.2 in (30 mm) x 2.1 in (54 mm) (Height x Width x Depth)
• Weight : 0.079
• Certification : CSA, REACH, RoHS, UL Listed, WEEE
