XB4BW36G5 - Square D 22mm Blue Flush Illuminated Pushbutton, 1NO+1NC, 120VAC LED, Metal Harmony XB4

XB4BW36G5

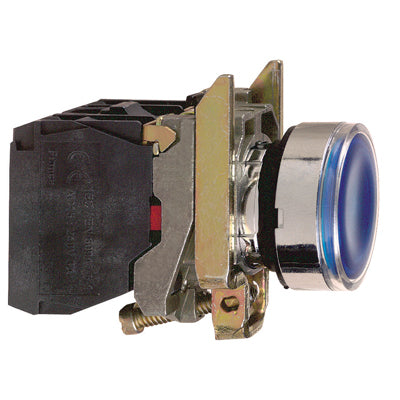

XB4BW36G5 is a Square D illuminated pushbutton switch featuring a blue flush actuator with a 22mm mounting diameter and universal LED illumination.This metal Harmony XB4 pushbutton offers a momentary operation with 1 normally open (NO) and 1 normally closed (NC) contact configuration. It operates on 110-120V AC with a robust design suitable for harsh environments. The switch supports a contact rating of 5A at 600VAC and 600VDC, with a spring return mechanism and plain lens.

Key Specifications
• Manufacturer: Square D
• Part Number: XB4BW36G5
• Mounting Diameter: 22 mm
• Actuator Type: Round, Flush
• Contact Configuration: 1NO + 1NC
• Voltage Rating: 110-120V AC
• Contact Rating: 5A at 600VAC / 600VDC
• Illumination: Blue LED
• Operation Type: Momentary with spring return
• Material: Metal actuator
• Series: Harmony XB4
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: XB4BW36G5
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Push button switch
• Family : XB4
• Voltage : 120



Product Data

• UPC : 785901381617
• GTIN : 00389110119766
• Country of Origin : France
• Dimensions : 1.9 in (47 mm) x 1.2 in (30 mm) x 4.0 in (101 mm) (Height x Width x Depth)
• Weight : 0.213 lb
• Certification : Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
