XB4BT842 - Schneider Electric Harmony Emergency Stop Pushbutton Switch 22mm Red Mushroom Head 1NC SPST Metal NEMA 4X/13/IP66/IP67/IP69/IP69K/IK06

XB4BT842

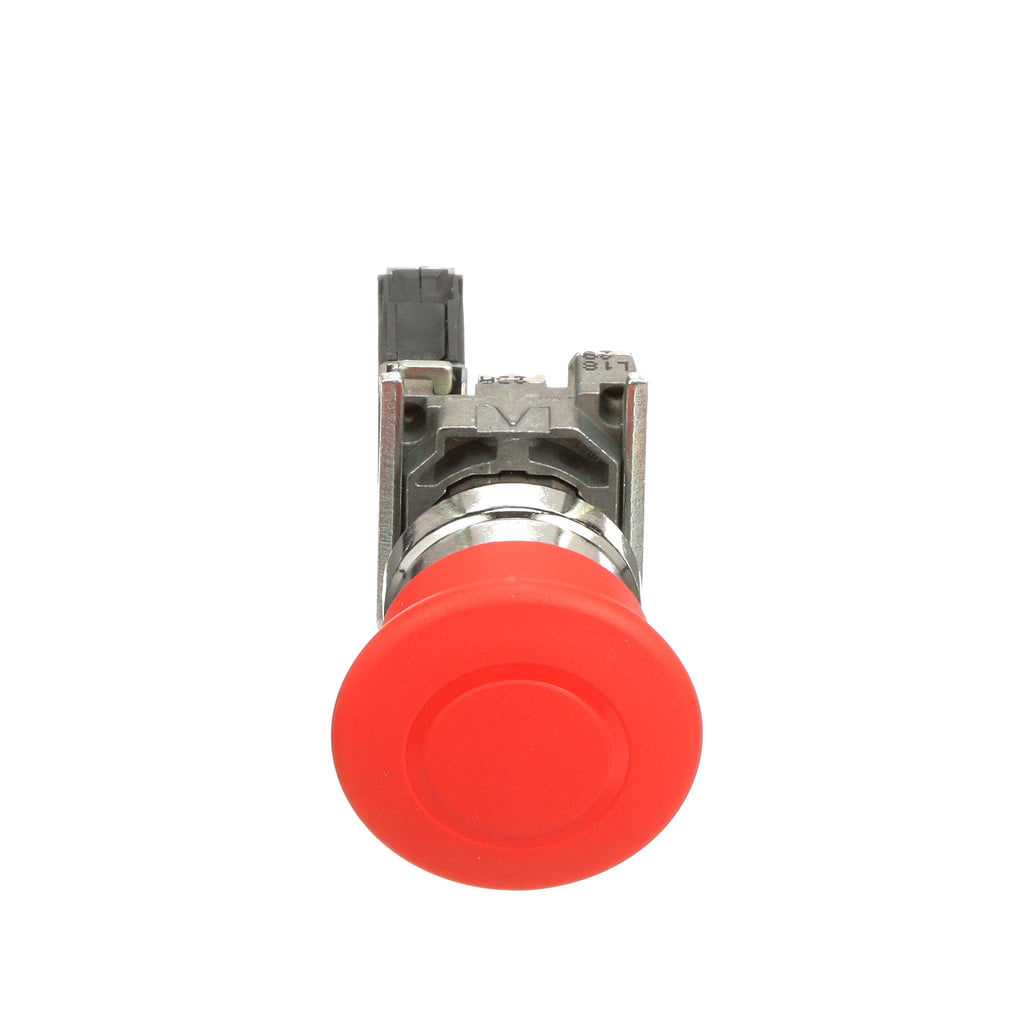

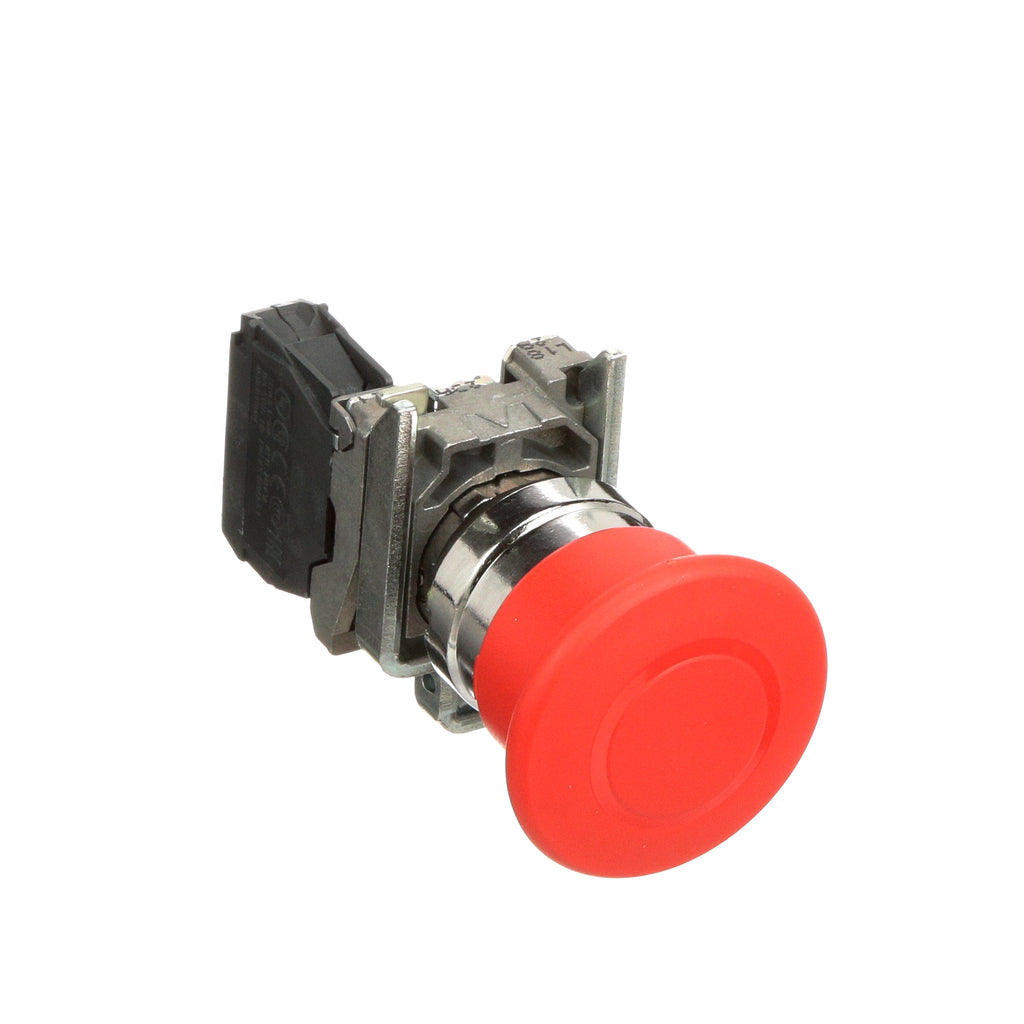

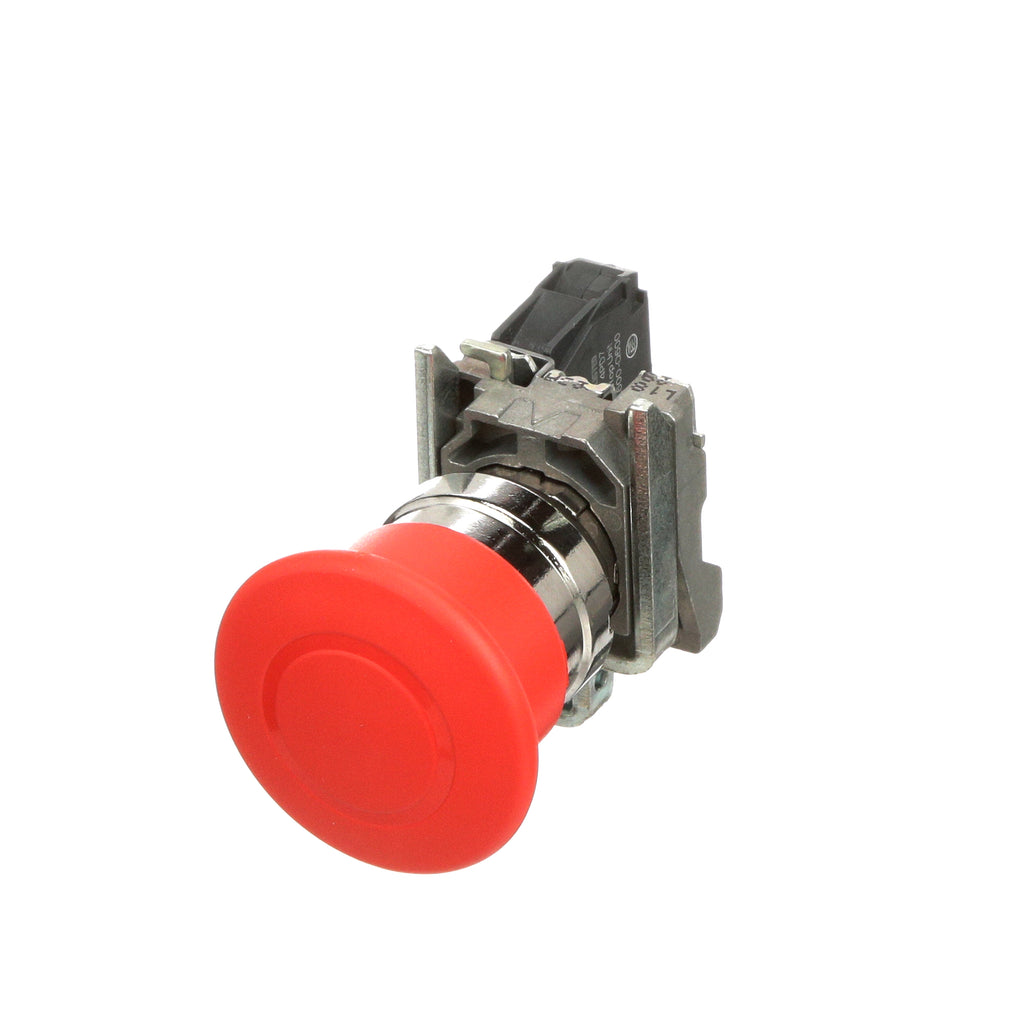

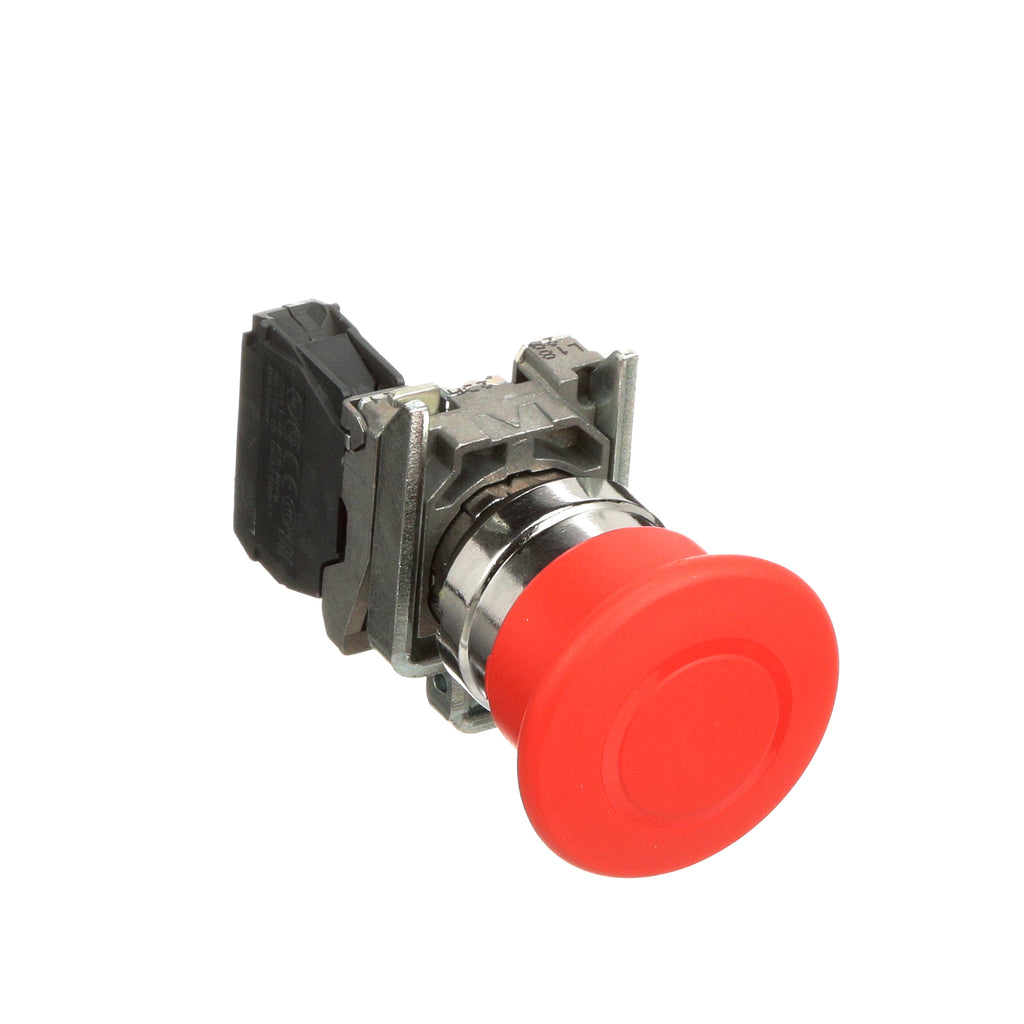

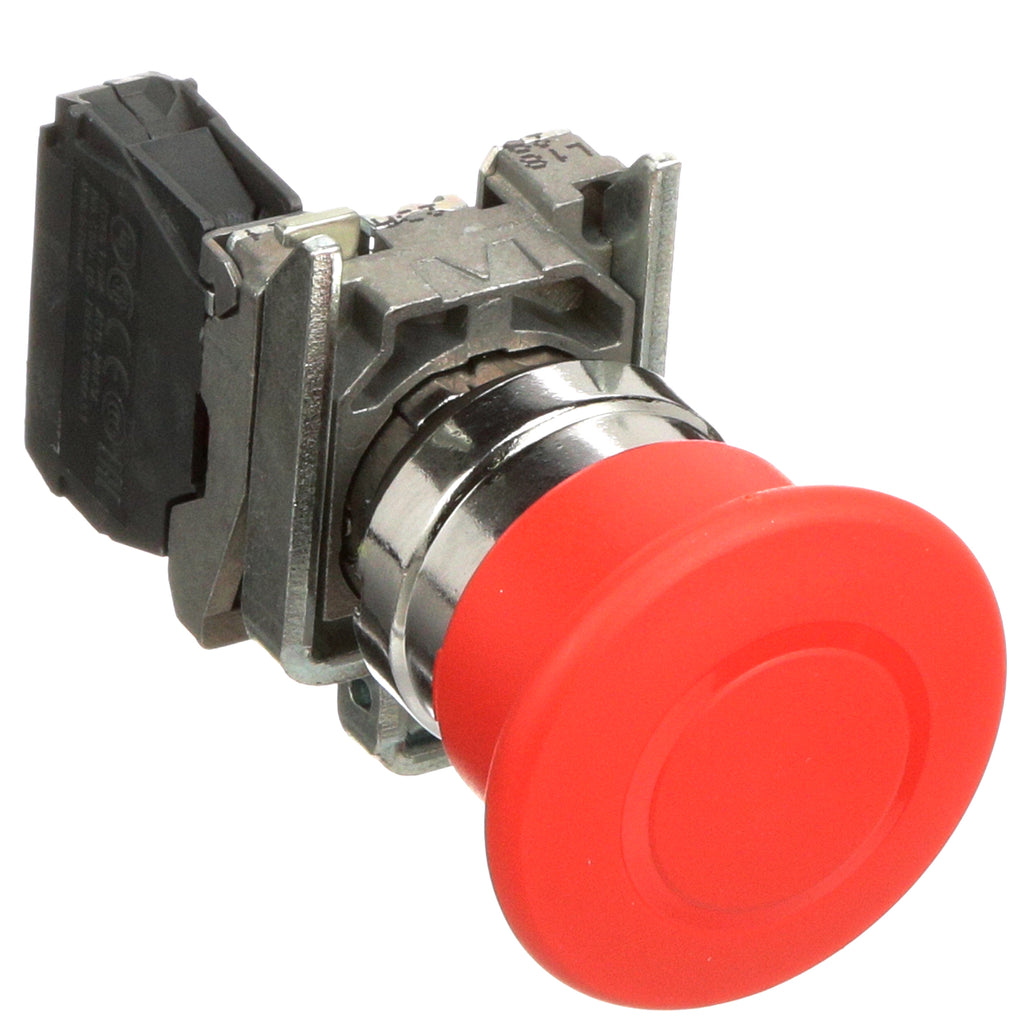

XB4BT842 is a Schneider Electric Harmony emergency stop pushbutton switch with a red mushroom head, designed for operator safety and industrial applications. This switch features a 22mm mounting size, 1NC (SPST) contact configuration, and a slow-break contact for reliable emergency shutdown. The device is constructed with a chromium plated metal housing and a latching push-pull operator for secure actuation. It is rated for 1.2 A at 600 VAC and is suitable for use in harsh environments with NEMA 4X/13 and IP66/IP67/IP69/IP69K/IK06 protection. The switch is designed for panel mounting and offers a wide operating temperature range from -40 to +70 °C (-40 to +158 °F).Engineered for compatibility with Harmony XAPK control stations and existing machinery, the XB4BT842 provides a robust solution for emergency stop functions in industrial settings. The ergonomic design ensures easy actuation, while the screw clamp terminals facilitate secure wiring connections. The switch is built to withstand demanding conditions and offers a long service life with a mechanical rating of 3,000,000 cycles.

• Part Number: XB4BT842
• Manufacturer: Schneider Electric
• Series: Harmony XB4
• Mounting Type: Panel
• Size: 22mm
• Actuator: Red Mushroom Head

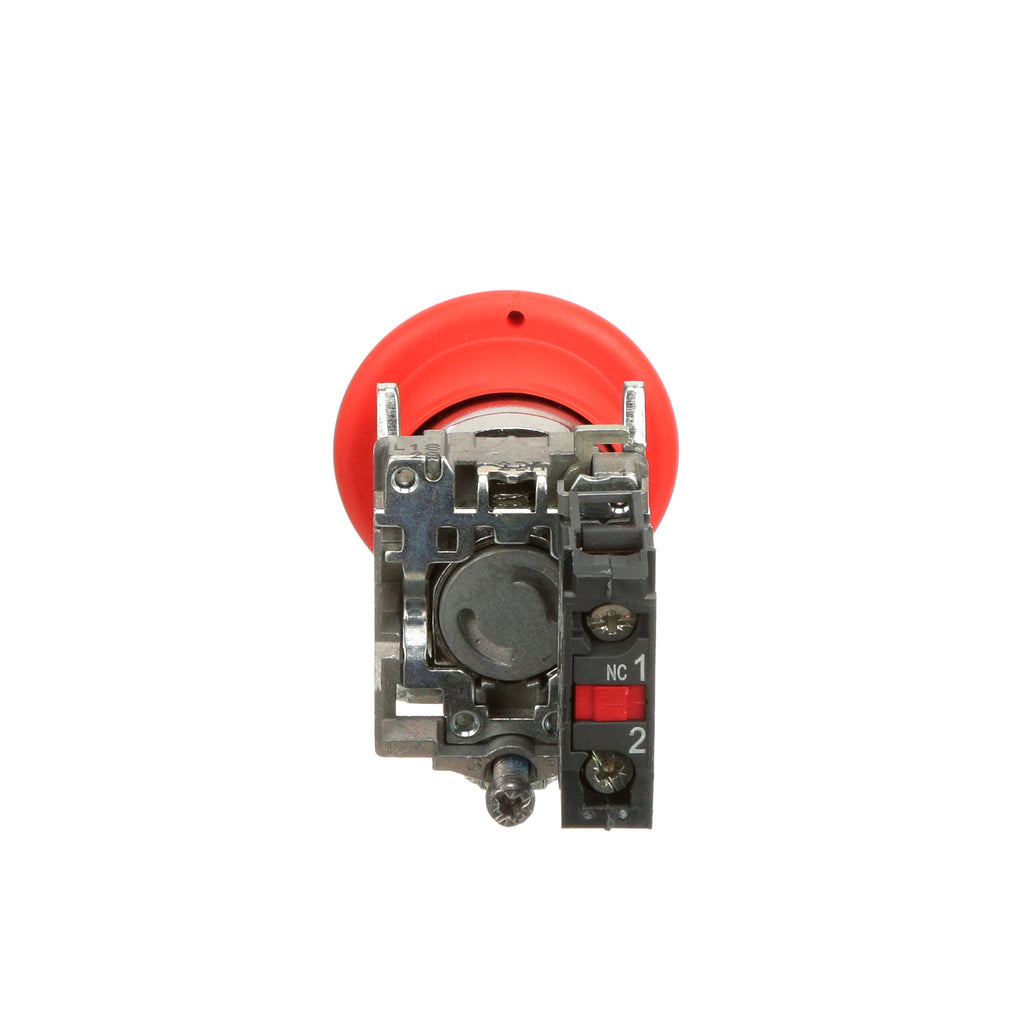

• Contact Configuration: 1NC (SPST)
• Contact Rating: 1.2 A at 600 VAC
• Enclosure Type: NEMA 4X/13/IP66/IP67/IP69/IP69K/IK06
• Operating Temperature: -40 to +70 °C (-40 to +158 °F)
• Terminal Type: Screw Clamp
• Mechanical Life: 3,000,000 cycles

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XB4BT842
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Switch
• Item Subcategory : Emergency Stop Switch
• Type : Harmony XB4 Series

Product Data

• UPC : 60648062371
• GTIN : 03606480623714
• Country of Origin : Czechia
• Dimensions : 1.9 in (47 mm) x 1.6 in (40 mm) x 3.2 in (82 mm) (Height x Width x Depth)
• Weight : 0.275 lb
• Certification : Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, Germanischer Lloyd (GL), IEC 60364-5-53, JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
